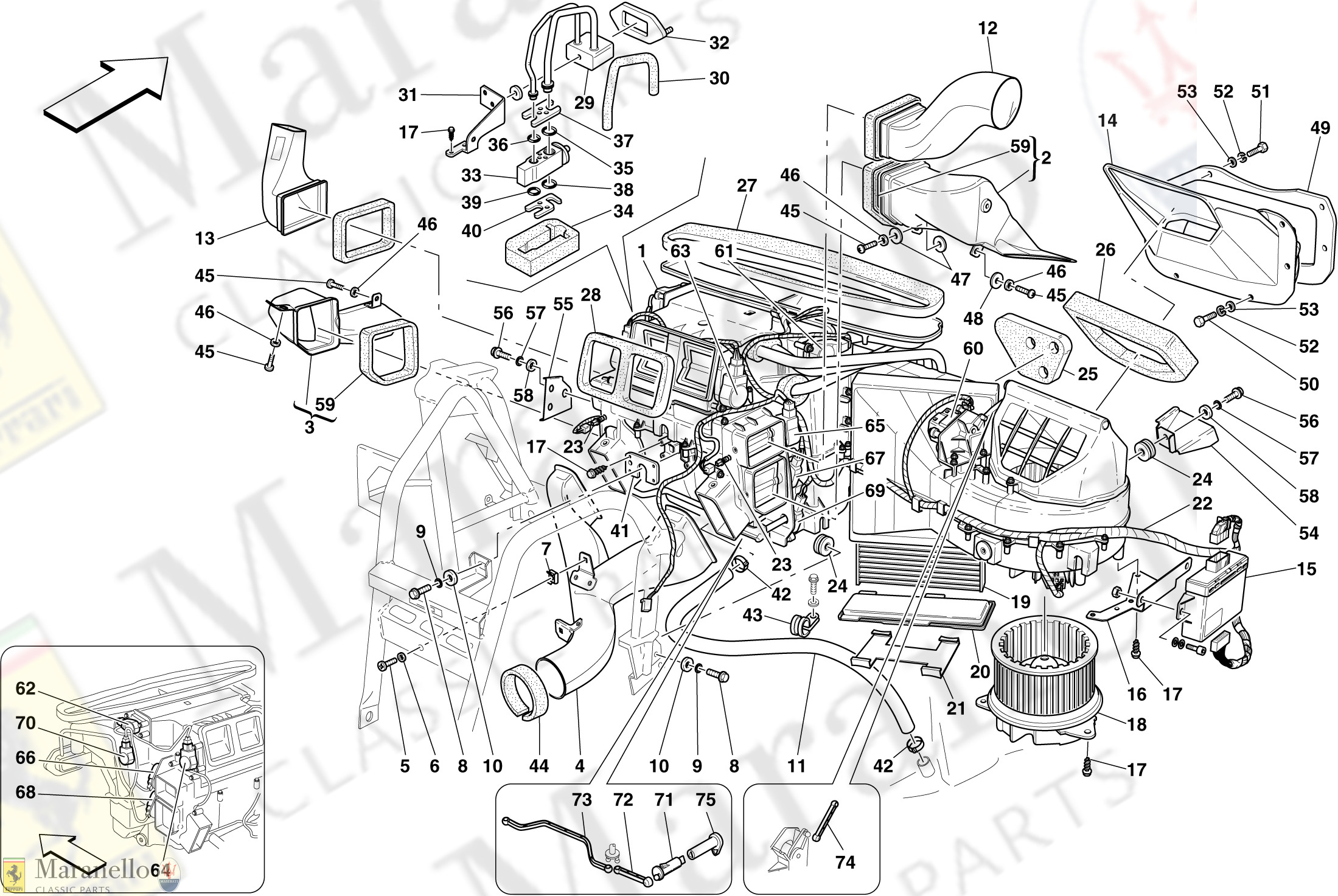

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	66984100	Evaporator Set Complete LHD Together with ECU SW 2.02 ref. 15- -Not for GD- -Applicable up to engine No. 104650- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
1	69544400	Evaporator Set Complete LHD Together with ECU SW 13.00 ref. 15- -Not for GD- -Applicable from engine No. 104651- -Applicable after depletion of 66984100	-	1	POA (Exc VAT)	?	0
1	80281200	Evaporator Set Complete LHD Enhanced version- -Together with ECU SW 13.00 ref. 15- -Not for GD	-	1	POA (Exc VAT)	?	0
1	68125000	Evaporator Set Complete RHD Together with ECU SW 2.02 ref. 15- -Applicable for GD- -Applicable up to engine No. 104650- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
1	69544600	Evaporator Set Complete RHD Together with ECU SW 13.00 ref. 15- -Applicable for GD- -Applicable from engine No. 104651- -Applicable after depletion of 68125000	-	1	£2,877.77 (Exc VAT)	?	0
1	80281300	Evaporator Set Complete RHD Enhanced version- -Together with ECU SW 13.00 ref. 15- -Applicable for GD	-	1	£2,964.10 (Exc VAT)	?	0
2	67002100	RH Duct LHD Not for GD	-	1	£28.96 (Exc VAT)	?	0
2	67924300	RH Duct RHD Applicable for GD	-	1	£33.47 (Exc VAT)	?	0
3	67002200	LH Duct LHD Not for GD	-	1	£28.96 (Exc VAT)	?	0
3	67924400	LH Duct RHD Applicable for GD	-	1	£33.47 (Exc VAT)	?	0
4	66853900	Air Duct For Rear Seats	-	1	£64.02 (Exc VAT)	?	0
4	80024900	Air Duct For Rear Seats Enhanced version	-	1	£65.08 (Exc VAT)	?	0
5	13274211	Screw	-	1	£0.36 (Exc VAT)	?	0
6	12637824	Washer	-	1	£0.06 (Exc VAT)	?	0
7	14197890	Captive Nut 5mm	-	1	£0.23 (Exc VAT)		0
8	16286024	Screw 6x16	-	3	£0.17 (Exc VAT)		0
9	12601274	Wavy Washer 6mm	-	3	£0.45 (Exc VAT)		0
10	12643724	Washer 6.15-18x1.5	-	3	£0.05 (Exc VAT)		0
11	67935700	Lower Drain Pipe	-	1	£8.81 (Exc VAT)	?	0
12	66853400	RH Sleeve LHD Not for GD	-	1	£29.62 (Exc VAT)	?	0
12	67457100	RH Sleeve RHD Applicable for GD	-	1	£32.89 (Exc VAT)	?	0
13	66853500	LH Sleeve LHD Not for GD	-	1	£29.62 (Exc VAT)	?	0
13	67457200	LH Sleeve RHD Applicable for GD	-	1	£32.89 (Exc VAT)	?	0
14	68115100	Air Conveyor LHD Not for GD	-	1	£194.83 (Exc VAT)	?	0
14	68125800	Air Conveyer LHD Not for GD	-	1	£45.99 (Exc VAT)	?	0
14	67852400	Air Conveyor RHD Applicable for GD	-	1	£50.47 (Exc VAT)	?	0
15	191552	Electronic Control Unit SW 2.02- -Applicable up to engine No. 104650	-	1	£752.48 (Exc VAT)	?	0
15	221522	Electronic Control Unit SW 13.00- -Applicable from engine No. 104651	-	1	£930.30 (Exc VAT)	?	0
16	68391600	Bracket LHD Not for GD	-	1	£45.58 (Exc VAT)	?	0
16	68718600	Bracket RHD Applicable for GD	-	1	£58.38 (Exc VAT)	?	0
17	68391900	Screw	-	12	POA (Exc VAT)	?	0
18	68391000	Fan LHD Not for GD- -No longer supplied- -Replaced by 85256500	-	1	POA (Exc VAT)	?	0
18	85256500	Fan LHD Not for GD	-	1	£943.30 (Exc VAT)	?	0
18	68615800	Fan RHD Applicable for GD- -No longer supplied- -Replaced by 85256600	-	1	POA (Exc VAT)	?	0
	Superseded by 85256600	Fan RHD	N	1	£1,665.85 (Exc VAT)		0
18	85256600	Fan RHD Applicable for GD	-	1	£1,665.85 (Exc VAT)		0
19	66855200	Pollen Filter 599 & 612	-	1	£67.75 (Exc VAT)		0
20	68390600	Pollen Filter Cover	-	1	£78.89 (Exc VAT)	?	0
21	68390700	Pollen Filter Clip	-	1	£71.00 (Exc VAT)	?	0
22	68391200	Electric Wiring Loom LHD Not for GD	-	1	£399.86 (Exc VAT)	?	0
22	68615900	Electric Wiring Loom RHD Applicable for GD	-	1	£335.95 (Exc VAT)	?	0
23	68390100	Air Sensor	-	2	£8.89 (Exc VAT)		0
24	68389800	Rubber	-	5	£4.57 (Exc VAT)	?	0
25	68391500	Water Pipe Sink	-	1	£2.66 (Exc VAT)	?	0
26	68389500	Inlet Sink	-	1	POA (Exc VAT)	?	0
27	68390000	Gasket For Vent	-	1	£18.83 (Exc VAT)	?	0
28	68391800	Front Gasket	-	1	£3.20 (Exc VAT)	?	0
29	68390200	Freon Pipe Assembly	-	1	£226.33 (Exc VAT)	?	0
30	68391400	Protection	-	1	£1.73 (Exc VAT)	?	0
31	68390300	Bracket Not for GD	-	1	£45.28 (Exc VAT)	?	0
32	68389400	Gasket	-	1	£22.53 (Exc VAT)	?	0
33	68391100	Tgk Valve	-	1	£71.14 (Exc VAT)		0
34	68389600	Gasket For Tgk Valve	-	1	£2.95 (Exc VAT)	?	0
35	68391300	O-Ring	-	1	£26.70 (Exc VAT)		0
36	66309300	O-Ring	-	1	£1.29 (Exc VAT)		0
37	64281500	Flange	-	1	£3.38 (Exc VAT)	?	0
38	66309500	O-Ring	-	1	£14.69 (Exc VAT)		0
39	66309400	O-Ring	-	1	£14.69 (Exc VAT)		0
40	67588300	Front Flange	-	1	£12.99 (Exc VAT)	?	0
41	68391700	Bracket	-	1	£14.35 (Exc VAT)	?	0
42	178053	Clip	-	2	£1.08 (Exc VAT)		0
43	10441790	P clip Bracket With Sheath D20	-	1	£0.59 (Exc VAT)		0
44	68296400	Sponge	-	1	£0.98 (Exc VAT)	?	0
45	13274111	Screw White	-	4	POA (Exc VAT)	?	0
46	12637801	Washer	-	4	£0.09 (Exc VAT)	?	0
47	12640624	Plain Washer 6mm	-	2	£0.12 (Exc VAT)		0
48	12647701	Washer	-	1	£0.05 (Exc VAT)		0
49	67612600	Gasket LHD Not for GD	-	1	£6.75 (Exc VAT)	?	0
49	67852500	Gasket RHD Applicable for GD	-	1	£5.15 (Exc VAT)	?	0
50	10978024	Screw 5x20	-	5	£0.11 (Exc VAT)	?	0
51	10977724	Screw M5 x 14	-	1	£0.05 (Exc VAT)		0
52	127493	Spring Washer 5mm	-	6	£0.07 (Exc VAT)		0
53	12637824	Washer	-	6	£0.06 (Exc VAT)	?	0
54	67439100	RH Bracket LHD Not for GD	-	1	POA (Exc VAT)	?	0
54	67452700	RH Bracket RHD Applicable for GD	-	1	£21.45 (Exc VAT)	?	0
55	67439200	LH Bracket	-	1	£25.71 (Exc VAT)	?	0
56	16286024	Screw 6x16	-	4	£0.17 (Exc VAT)		0
57	12601274	Wavy Washer 6mm	-	4	£0.45 (Exc VAT)		0
58	12643724	Washer 6.15-18x1.5	-	4	£0.05 (Exc VAT)		0
59	68298300	Gasket	-	2	£2.53 (Exc VAT)	?	0
60	68887800	Actuator LHD Recirculation- -Not for GD- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
60	85469400	Actuator LHD Recirculation- -Not for GD- -Applicable after depletion of 68887800	-	1	£128.94 (Exc VAT)	?	0
60	69050700	Actuator RHD Recirculation- -Applicable for GD- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
60	85470500	Actuator RHD Recirculation- -Applicable for GD- -Applicable after depletion of 69050700	-	1	£173.53 (Exc VAT)	?	0
61	69050000	Actuator RH defroster duct- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
61	85469800	Actuator RH defroster duct- -Applicable after depletion of 69050000	-	1	£143.70 (Exc VAT)	?	0
62	69050300	Actuator LH defroster duct- -Applicable until depletion	-	1	£98.45 (Exc VAT)		0
62	85470100	Actuator LH defroster duct- -Applicable after depletion of 69050300	-	1	£143.70 (Exc VAT)	?	0
	Superseded by 69050300	Actuator	N	1	£98.45 (Exc VAT)		0
63	69050100	Actuator RH front ventilation- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
63	85469900	Actuator RH front ventilation- -Applicable after depletion of 69050100	-	1	£143.70 (Exc VAT)	?	0
64	69050200	Actuator LH front ventilation- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
64	85470000	Actuator LH front ventilation- -Applicable after depletion of 69050200	-	1	£143.70 (Exc VAT)	?	0
65	68886800	Actuator RH lateral ventilation- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
65	85469700	Actuator RH lateral ventilation- -Applicable after depletion of 68886800	-	1	£143.70 (Exc VAT)	?	0
66	69050500	Actuator LH lateral ventilation- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
66	85470300	Actuator LH lateral ventilation- -Applicable after depletion of 69050500	-	1	£173.53 (Exc VAT)	?	0
67	68886700	Actuator RH footwell air duct- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
67	85469600	Actuator RH footwell air duct- -Applicable after depletion of 68886700	-	1	£173.53 (Exc VAT)	?	0
68	69050600	Actuator LH footwell air duct- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
68	85470400	Actuator LH footwell air duct- -Applicable after depletion of 69050600	-	1	£143.70 (Exc VAT)	?	0
69	68887700	Actuator Rear air duct- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
69	85469500	Actuator Rear air duct- -Applicable after depletion of 68887700	-	1	£173.53 (Exc VAT)	?	0
70	69050400	Actuator Bypass- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
70	85470200	Actuator Bypass- -Applicable after depletion of 69050400	-	1	£128.94 (Exc VAT)	?	0
71	81235000	Rear Actuator Pin Rear air duct	-	1	£19.72 (Exc VAT)	?	0
72	81235100	Actuator Rod Rear air duct	-	1	£21.30 (Exc VAT)	?	0
73	81235200	Lid Rod Rear air duct	-	1	£22.94 (Exc VAT)	?	0
74	81235300	Actuator Rod Recirculation	-	1	£21.30 (Exc VAT)	?	0
75	81562000	Flange	-	1	£23.66 (Exc VAT)	?	0
