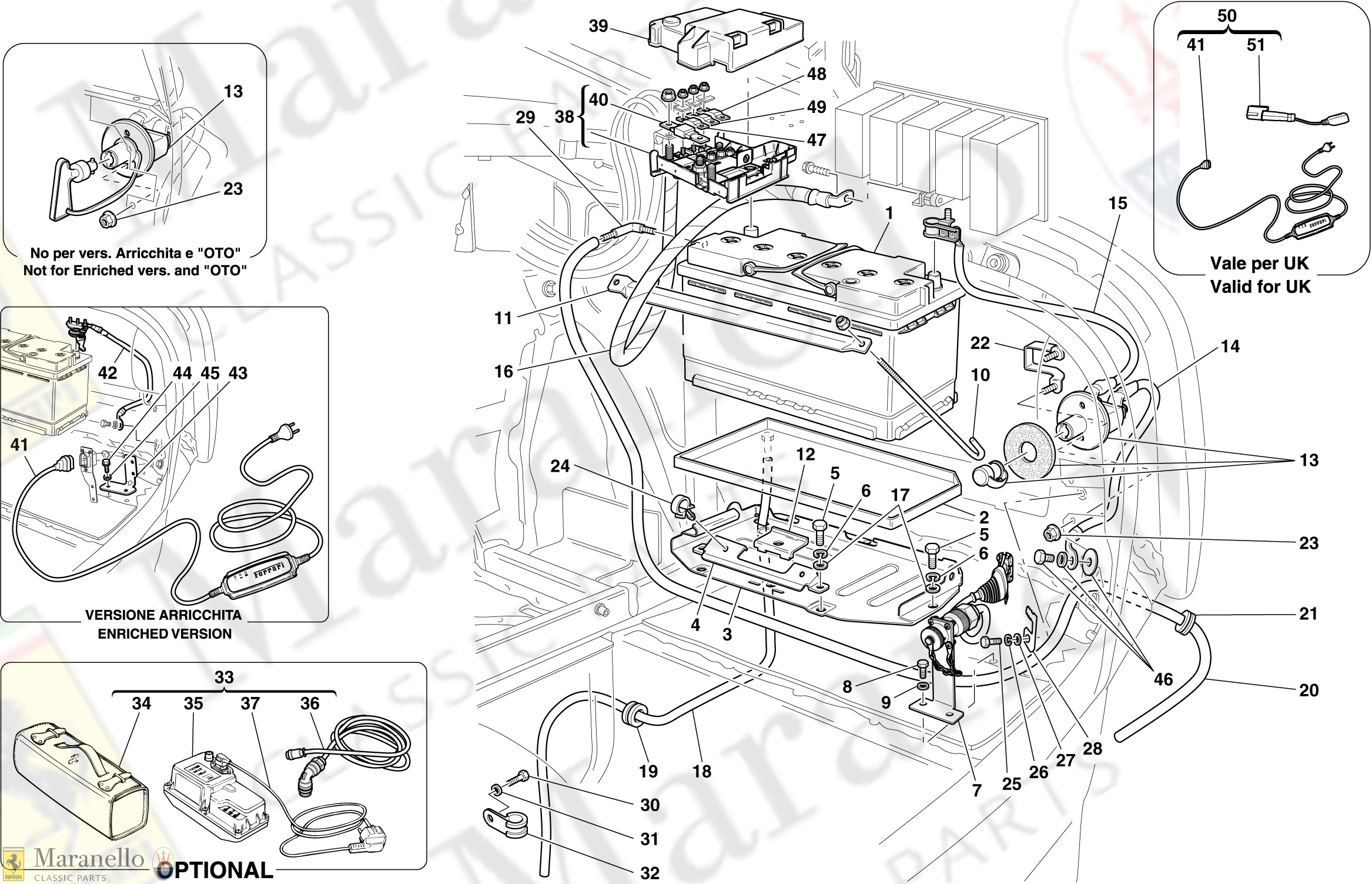

Ferrari / 612 Sessanta / 060 - Battery

Reset

< Prev Next >

000 - Spare Assembly Units

001 - Crankcase

002 - Crankase - Covers

003 - Crankshaft - Connecting Rods And Pistons

004 - Right Hand Cylinder Head

005 - Left Hand Cylinder Head

006 - Timing System - Drive

007 - Timing - Valves

008 - Engine Covers

009 - Fuel System

010 - Fuel Pump

011 - Fuel Tank - Filler Neck And Pipes

012 - Fuel Tank - Insulation And Protection

013 - Evaporative Emissions Control System

014 - Injection - Ignition System

015 - Pneumatic Actuator System

016 - Secondary Air System

017 - Intake Manifold

018 - Air Intake

019 - Front Exhaust System

020 - Rear Exhaust System

021 - Bypass Valve Control System -Hgtc And Hgts Versions- -Optional- -Applicable From Ass. No. 62511-

022 - Blow-By System

023 - Lubrication System - Tank

024 - Lubrication - Oil Pumps

025 - Lubrication - Oil Sump And Filters

026 - Cooling System - Radiator And Header Tank

027 - Water Pump

028 - Clutch And Controls -Not For F1-

029 - Clutch And Controls -Applicable For F1-

030 - Clutch And Controls -Applicable For "Oto"-

031 - Gearbox Housing

032 - Differential Case And Gearbox Cooling Radiator

033 - Primary Gearbox Shaft Gears And Gearbox Oil Pump

034 - Secondary Gearbox Shaft Gears

035 - Internal Gearbox Controls -Not For F1-

036 - Internal Gearbox Controls -Applicable For F1-

037 - External Gearbox Controls

038 - Engine/Gearbox Connector Pipe And Insulation

039 - Differential And Axle Shaft

040 - Hydraulic Brake And Clutch Control

041 - Electronic Accelerator Pedal

042 - Pedal Board

043 - F1 Clutch Hydraulic Control -Applicable For F1-

044 - Power Unit And Tank -Applicable For F1-

045 - Brake System -Not Applicable For Gd-

046 - Brake System -Applicable For Gd-

047 - Front Brake Calliper

048 - Rear Brake Calliper

049 - Parking Brake Control

050 - Hydraulic Power Steering Box

051 - Hydraulic Fluid Reservoir For Power Steering System And Coil

052 - Steering Control

053 - Power Steering Pump

054 - Front Suspension - Shock Absorber And Brake Disc

055 - Front Suspension - Arms And Stabiliser Bar

056 - Rear Suspension - Shock Absorber And Brake Disc

057 - Rear Suspension - Arms And Stabiliser Bar

058 - Wheels

059 - Tyre Pressure Monitoring System

060 - Battery

061 - Alternator - Starter Motor - Ac Compressor

062 - Ac System - Freon Pipes

063 - Ac System - Water Pipes

064 - Evaporator Unit And Controls

065 - Tools Provided With Vehicle

066 - Documentation And Accessories

067 - Spare Wheel And Accessories -Optional-

068 - Spare Wheel And Tool Bag Fasteners

100 - Bodyshell - External Trim

101 - Bodyshell - Roof

102 - Structures And Elements, Front Of Vehicle

103 - Structures And Elements, Centre Of Vehicle

104 - Structures And Elements, Rear Of Vehicle

105 - Flat Undertray And Wheelhouses

106 - Front Bumper

107 - Rear Bumper

108 - Engine Compartment Firewall Insulation

109 - Passenger Compartment Insulation

110 - Luggage Compartment Insulation

111 - Passenger Compartment Trim And Mats

112 - Headliner Trim And Accessories

113 - Luggage Compartment Trim

114 - Engine Compartment Lid

115 - Luggage Compartment Lid And Fuel Filler Flap

116 - Doors - Substructure And Trim

117 - Doors - Opening Mechanism And Hinges

118 - Doors - Power Windows And Rear-View Mirror

119 - Screens, Windows And Seals

120 - Electric Front Seat - Trim And Accessories

121 - Electric Front Seat - Seat Belts And Devices

122 - Rear Seat - Seat Belts

123 - Tunnel - Substructure And Accessories -Not For "Oto"-

124 - Tunnel - Substructure And Accessories -Applicable For "Oto"-

125 - Dashboard

126 - Glove Compartment

127 - Airbag

128 - Instrumentation

129 - Headlights And Taillights

130 - Exterior Trim

131 - Electrical System

132 - Acceleration Sensors

133 - Engine Compartment Ecus

134 - Passenger Compartment Ecus

135 - Luggage Compartment Ecus

136 - Antitheft System Ecus And Devices

137 - Audio - Gps System

138 - Pro Online Telephone-Gps Module

139 - Audio System - Enhanced Version

140 - Windscreen Wiper, Windscreen Washer And Horns

141 - Adhesive Labels And Plaques

142 - PAINTING -Applicable for S.T. Schedule only-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	191374	Battery 12V 100AH	-	1	£337.43 (Exc VAT)	?	0
2	191508	Battery Tray	-	1	£21.40 (Exc VAT)	?	0
3	191509	Battery Plate	-	1	£259.55 (Exc VAT)	?	0
4	191538	Battery Bracket	-	1	£32.47 (Exc VAT)	?	0
5	16043624	Screw M8 x 25	-	6	£0.16 (Exc VAT)		0
6	127496	Spring Washer 8mm	-	6	£0.05 (Exc VAT)		0
7	200857	Battery Charger Connection Cable Applicable up to Ass. No. 55349	-	1	£96.18 (Exc VAT)	?	0
7	191554	Battery Charger Connection Cable Applicable from Ass. No. 55350	-	1	£1,230.81 (Exc VAT)	?	0
8	16285127	Screw M5 x 16	-	2	£0.47 (Exc VAT)		0
9	12620374	Washer 5.30-12x0.8	-	2	£0.05 (Exc VAT)		0
10	188272	Battery Tie Rod	-	2	£6.09 (Exc VAT)		0
11	188273	Battery Top Bracket	-	1	£71.01 (Exc VAT)	?	0
12	191507	Battery Bracket	-	1	POA (Exc VAT)	?	0
13	196157	Battery Master Switch Not applicable for enhanced and "OTO" versions	-	1	POA (Exc VAT)	?	0
13	240456	Battery Master Switch Applicable for enhanced and "OTO" versions	-	1	£379.13 (Exc VAT)	?	0
14	196553	Battery Cable No longer supplied- -Replaced by 222041	-	1	£112.77 (Exc VAT)	?	0
14	222041	Battery Cable	-	1	£36.46 (Exc VAT)	?	0
15	196552	Battery Cable	-	1	£112.77 (Exc VAT)	?	0
16	194335	Positive Battery Cable LHD Not for GD	-	1	POA (Exc VAT)	?	0
16	205689	Positive Battery Cable RHD Applicable for GD	-	1	£355.01 (Exc VAT)	?	0
17	14496524	Washer	-	6	£0.09 (Exc VAT)		0
18	191537	Pipe No longer supplied- -Replaced by 214478	-	1	POA (Exc VAT)	?	0
18	214478	Pipe L 760 No longer supplied- -Replaced by 214479	-	1	£2.32 (Exc VAT)	?	0
18	214479	Tube L 920 M	-	1	£1.93 (Exc VAT)	?	0
19	10396280	Ring	-	1	£2.65 (Exc VAT)		0
20	199629	Drain Pipe No longer supplied- -Replaced by 214479	-	1	POA (Exc VAT)	?	0
20	214479	Tube L 920 M	-	1	£1.93 (Exc VAT)	?	0
21	10396280	Ring	-	1	£2.65 (Exc VAT)		0
22	191533	Bracket	-	1	£9.16 (Exc VAT)	?	0
23	14059111	Flanged Nut M5	-	2	£0.04 (Exc VAT)	?	0
	Superseded by 14039614	Flange Nut	N	2	£0.18 (Exc VAT)		0
24	14569880	Clip 14.5x3	-	2	£0.29 (Exc VAT)	?	0
25	10902124	Screw M6 x 14	-	1	£0.05 (Exc VAT)		0
26	127494	Wavy Washer 6mm Zinc Coated	-	1	£0.07 (Exc VAT)		0
27	12643724	Washer 6.15-18x1.5	-	1	£0.05 (Exc VAT)		0
28	162606	Clip	-	1	£1.16 (Exc VAT)		0
29	199631	Union	-	1	£0.34 (Exc VAT)		0
30	10902324	Screw M6 x 18	-	1	£0.12 (Exc VAT)		0
31	127494	Wavy Washer 6mm Zinc Coated	-	1	£0.07 (Exc VAT)		0
32	10441390	P clip Bracket With Sheath D.12	-	1	£0.44 (Exc VAT)		0
33	178682	Battery Charger Kit Not for Hong Kong- -Optional- -Not for AUS, USA, CDN, UK, J	-	1	POA (Exc VAT)	?	0
33	178683	Battery Charger Kit Optional- -Applicable for USA, CDN, J	-	1	POA (Exc VAT)	?	0
	Superseded by 70002821	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
33	178685	Battery Charger Kit Applicable for Hong Kong- -Optional- -Applicable for UK	-	1	£624.30 (Exc VAT)	?	0
33	178684	Battery Charger Kit Optional- -Applicable for AUS	-	1	POA (Exc VAT)	?	0
34	65699200	Case For Charger Optional	-	1	POA (Exc VAT)	?	0
35	177791	Battery Charger 230V 230 V- -Optional- -Not for USA, CDN, J	-	1	POA (Exc VAT)	?	0
35	177792	Battery Charger 110V 110 V- -Optional- -Applicable for USA, CDN, J	-	1	£1,246.10 (Exc VAT)	?	0
36	178676	Cable And Connector Complete Optional	-	1	POA (Exc VAT)	?	0
37	177794	Power Cable Not for Hong Kong- -Optional- -Not for AUS, USA, CDN, UK, J	-	1	£16.99 (Exc VAT)	?	0
37	177795	Power Cable Optional- -Applicable for USA, CDN, J	-	1	£12.74 (Exc VAT)	?	0
37	178294	Power Cable Applicable for Hong Kong- -Optional- -Applicable for UK	-	1	£40.79 (Exc VAT)	?	0
37	177796	Power Cable Optional- -Applicable for AUS	-	1	£25.87 (Exc VAT)	?	0
38	199904	Battery Fuse Box	-	1	£67.22 (Exc VAT)		0
39	199905	Cover	-	1	£5.09 (Exc VAT)	?	0
40	198704	Mega Fuse For Battery	-	1	£15.45 (Exc VAT)	?	0
41	231503	Battery Charger Kit Enhanced version- -Optional- -Not for AUS, USA, CDN, UK, J- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
41	260120	Battery Charger Kit Enhanced version- -Optional- -Not for AUS, USA, CDN, UK, J- -Applicable after depletion of 231503- -No longer supplied- -Replaced by 70001700	-	1	POA (Exc VAT)	?	0
41	70001700	Battery Charger Kit Enhanced version- -Optional- -Not for AUS, USA, CDN, J, USA LIGHT- -No longer supplied- -Replaced by 70002820	-	1	POA (Exc VAT)	?	0
41	70002820	Battery Charger Kit Enhanced version- -Optional- -Not for AUS, USA, CDN, J, USA LIGHT	-	1	£208.77 (Exc VAT)	?	0
41	231504	Battery Charger Kit Enhanced version- -Optional- -Applicable for USA, CDN, USA LIGHT- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
	Superseded by 70002821	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	260121	Battery Charger Kit Enhanced version- -Optional- -Applicable for USA, CDN, USA LIGHT- -Applicable after depletion of 231504- -No longer supplied- -Replaced by 70001701	-	1	POA (Exc VAT)	?	0
	Superseded by 70002821	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	70001701	Battery Charger Kit Enhanced version- -Optional- -Applicable for USA, CDN, USA LIGHT	-	1	POA (Exc VAT)	?	0
	Superseded by 70002821	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	231506	Battery Charger Kit Enhanced version- -Optional- -Applicable for UK- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
	Superseded by 70003485	Battery Charger Kit	N	1	£268.25 (Exc VAT)		0
41	260123	Battery Charger Kit Enhanced version- -Optional- -Applicable for UK- -Applicable after depletion of 231506- -No longer supplied- -Replaced by 70001796	-	1	POA (Exc VAT)	?	0
	Superseded by 70003485	Battery Charger Kit	N	1	£268.25 (Exc VAT)		0
41	70001796	Battery Charger Kit Enhanced version- -Optional- -Applicable for UK	-	1	POA (Exc VAT)	?	0
	Superseded by 70003485	Battery Charger Kit	N	1	£268.25 (Exc VAT)		0
41	236798	Battery Charger Kit Enhanced version- -Optional- -Applicable for J- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
	Superseded by 70002822	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	260124	Battery Charger Kit Enhanced version- -Optional- -Applicable for J- -Applicable after depletion of 236798- -No longer supplied- -Replaced by 70001702	-	1	POA (Exc VAT)	?	0
	Superseded by 70002822	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	70001702	Battery Charger Kit Enhanced version- -Optional- -Applicable for J	-	1	POA (Exc VAT)	?	0
	Superseded by 70002822	Battery Charger Kit	N	1	£208.77 (Exc VAT)		0
41	231505	Battery Charger Kit Enhanced version- -Optional- -Applicable for AUS- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
41	260122	Battery Charger Kit Enhanced version- -Optional- -Applicable for AUS- -Applicable after depletion of 231505	-	1	POA (Exc VAT)	?	0
42	214194	Negative Battery Cable Enhanced version	-	1	£46.23 (Exc VAT)	?	0
43	221592	Bracket Enhanced version	-	1	£19.49 (Exc VAT)	?	0
44	16281824	Screw Enhanced version	-	2	£0.35 (Exc VAT)		0
45	12620374	Washer 5.30-12x0.8 Enhanced version	-	2	£0.05 (Exc VAT)		0
46	245870	Chassis Earth Plate	-	1	£78.89 (Exc VAT)		0
47	980139504	Midi Fuse 50A	-	1	£16.09 (Exc VAT)	?	0
48	980139505	Midi Fuse 70A	-	1	£11.96 (Exc VAT)	?	0
49	980139506	Midi Fuse 60A	-	1	£7.40 (Exc VAT)	?	0
50	70001796	Battery Charger Kit Enhanced version- -Optional- -Applicable for UK- -No longer supplied- -Replaced by 70003485	-	1	POA (Exc VAT)	?	0
50	70003485	Battery Charger Kit Enhanced version- -Optional- -After depletion, order loose components- -Applicable for UK- -Applicable until depletion	-	1	£268.25 (Exc VAT)		0
51	95998029	Adaptor Tek Optional- -Enhanced version- -Applicable for UK	-	1	£23.05 (Exc VAT)		0
