No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	182735	Crankshaft	-	1	£2,071.99 (Exc VAT)	?	0
2	176396	Threaded Plug D. 28 x 1.5	-	1	£4.79 (Exc VAT)	?	0
3	194251	Main Bearing Set Complete Red- -Nominal- -After depletion, order individual parts- -Applicable until depletion	-	1	POA (Exc VAT)	?	0
3	173485	Main Bearing Set 1st Undersize 0.254mm After depletion, order individual parts- -Applicable until depletion	-	1	£1,307.99 (Exc VAT)	?	0
3	173486	Main Bearing Set 2nd Undersize 0.508mm After depletion, order individual parts- -Applicable until depletion	-	1	£1,307.99 (Exc VAT)	?	0
4	190505	Lower Half Bearing Red- -Nominal	-	2	£44.99 (Exc VAT)	?	0
4	173488	Lower Half Bearing 1st Undersize 0.254mm	-	2	POA (Exc VAT)	?	0
4	173491	Lower Half Bearing 2nd Undersize 0.508mm	-	2	POA (Exc VAT)	?	0
5	190504	Upper Half Bearing Red- -Nominal	-	2	£44.99 (Exc VAT)	?	0
5	173487	Upper Half Bearing 1st Undersize 0.254mm	-	2	POA (Exc VAT)	?	0
5	173490	Upper Half Bearing 2nd Undersize 0.508mm	-	2	POA (Exc VAT)	?	0
6	190503	Intermediate Half Bearing Red- -Nominal	-	10	POA (Exc VAT)	?	0
6	173489	Intermediate Half Bearing 1st Undersize 0.254mm	-	10	POA (Exc VAT)	?	0
6	173492	Intermediate Half Bearing 2nd Undersize 0.508mm	-	10	POA (Exc VAT)	?	0
7	103877	Ball Bearing	-	1	£22.99 (Exc VAT)		0
8	164111	Thrust Washer Standard Red- -Nominal	-	2	£79.99 (Exc VAT)		0
8	164112	Thrust Washer 1st Oversize 0.127mm	-	2	POA (Exc VAT)	?	0
8	164113	Thrust Washer 2nd Oversize 0.254mm	-	2	POA (Exc VAT)	?	0
9	164108	Thrust Washer Standard Red- -Nominal	-	2	£79.99 (Exc VAT)		0
9	164109	Thrust Washer 1st Oversize 0.127mm	-	2	POA (Exc VAT)	?	0
9	164110	Thrust Washer 2nd Oversize 0.254mm	-	2	POA (Exc VAT)	?	0
10	144876	Woodruff Key	-	1	£3.69 (Exc VAT)	?	0
11	184426	Connecting Rod Complete	-	12	£179.99 (Exc VAT)	?	0
11	-	CONNECTING ROD WITH CAP With complete connecting rod and cap assembly	-	12	POA		0
12	177159	Con Rod Bolt	-	24	£38.99 (Exc VAT)		0
13	184909	Small End Bush	-	12	£26.99 (Exc VAT)	?	0
14	173550	Con Rod Half Bearing Standard Red	-	24	£11.99 (Exc VAT)		0
15	189515	Piston With Piston Rings Complete No longer supplied- -Replaced by 223174	-	12	£269.99 (Exc VAT)	?	0
15	189515	Piston With Piston Rings Complete BOOK MISPRINT - Sill Available -No longer supplied- -Replaced by 223174	-	12	£269.99 (Exc VAT)	?	0
15	223174	Piston With Piston Rings Complete	-	12	£969.99 (Exc VAT)	?	0
16	180445	Seal Ring 1st Groove 1st groove- -With complete set 194252 and 229101	-	12	POA (Exc VAT)	?	0
17	180446	Seal Ring 2nd Groove 2nd groove- -With complete set 194252 and 229101	-	12	POA (Exc VAT)	?	0
18	180447	Oil Scraper Ring 3rd Groove 3rd groove- -With complete set 194252	-	12	POA (Exc VAT)	?	0
18	217576	Oil Scraper Ring 3rd Groove 3rd groove- -With complete set 229101	-	12	POA (Exc VAT)	?	0
19	154717	Gudgeon Pin Applicable until depletion	-	12	POA (Exc VAT)	?	0
20	189521	Pin Clip Applicable until depletion	-	24	POA (Exc VAT)	?	0
20	178890	Pin Clip Applicable after depletion of 189521- -Applicable until depletion	-	24	POA (Exc VAT)	?	0
21	193051	Engine Flywheel	-	1	£919.99 (Exc VAT)		0
21	246647	Engine Flywheel Applicable for "OTO"	-	1	£3,604.99 (Exc VAT)	?	0
22	103875	Flywheel Bolt	-	8	POA (Exc VAT)	?	0
	Superseded by 201755	Bolt M10 x 1.25	N	8	£0.96 (Exc VAT)		0
23	103876	Flywheel Washer	-	1	£8.79 (Exc VAT)		0
24	168565	Front Torsion Damper Pulley	-	1	£1,583.99 (Exc VAT)		0
25	140925	Bolt	-	1	£119.99 (Exc VAT)	?	0
26	140922	Washer	-	1	POA (Exc VAT)	?	0
27	194252	Piston Ring Set Complete Applicable for compl. piston 189515 ref. 15- -Applicable until depletion	-	12	POA (Exc VAT)	?	0
27	229101	Piston Ring Set Complete Applicable for compl. piston 223174 ref. 15- -Applicable until depletion	-	12	POA (Exc VAT)	?	0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

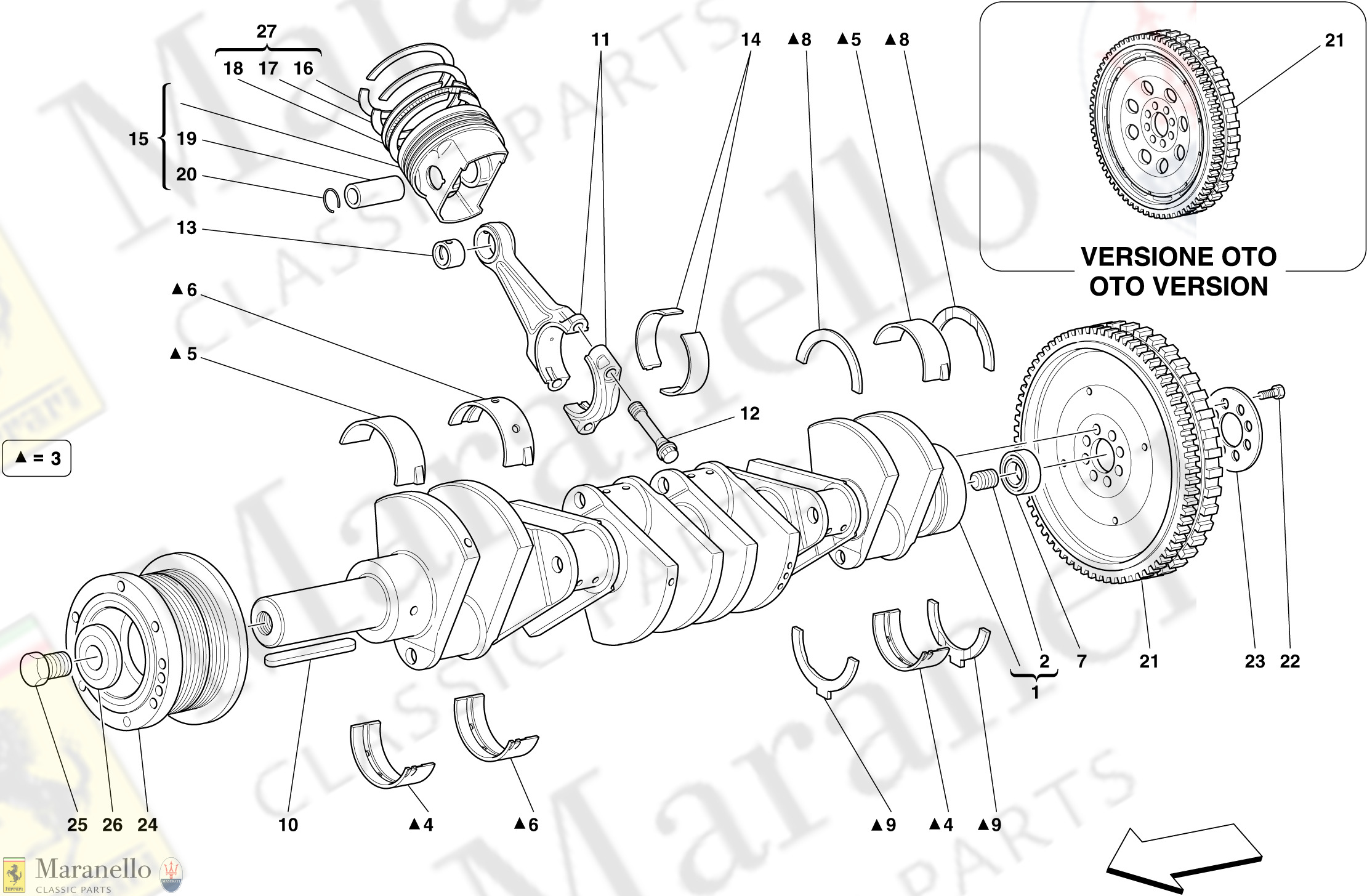

Ferrari / 612 Sessanta / 003 - Crankshaft - Connecting Rods And Pistons
