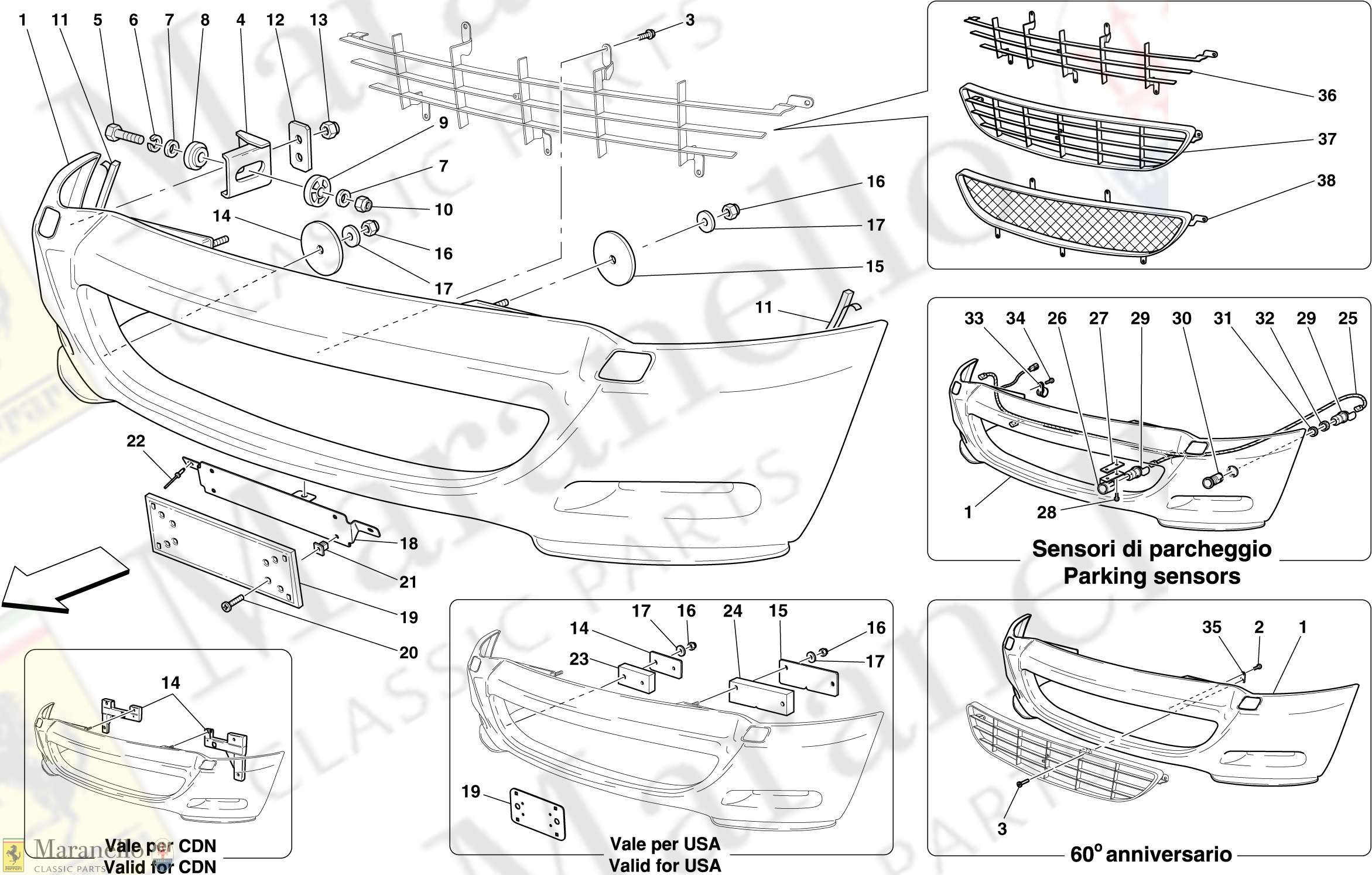

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	67005810	Front Bumper Not for USA, CDN, GOLFO	-	1	POA (Exc VAT)	?	0
1	68974210	Front Bumper Parking sensors- -Optional- -Does not contain sensors- -Not for USA, CDN, GOLFO	-	1	POA (Exc VAT)	?	0
1	67008710	Front Bumper Applicable for USA, CDN, GOLFO	-	1	POA (Exc VAT)	?	0
1	68974510	Front Bumper Parking sensors- -Optional- -Does not contain sensors- -Applicable for USA, CDN, GOLFO	-	1	POA (Exc VAT)	?	0
2	169611	Screw M5 x 12 Applicable for "60°anniversario"	-	6	£1.00 (Exc VAT)		0
3	16285127	Screw M5 x 16	-	7	£0.47 (Exc VAT)		0
3	169611	Screw M5 x 12 Applicable for "60°anniversario"	-	7	£1.00 (Exc VAT)		0
4	62126500	LH Lateral Bumper Support Bracket	-	2	£10.58 (Exc VAT)	?	0
5	11307021	Bolt	-	2	£5.04 (Exc VAT)		0
6	127497	Spring Washer 10mm	-	2	£0.05 (Exc VAT)		0
7	12646801	Washer	-	4	£1.04 (Exc VAT)		0
8	62128200	External Vibration Damper	-	2	£1.44 (Exc VAT)		0
9	62128300	Internal Vibration Damper	-	2	£0.90 (Exc VAT)		0
10	12574521	Nyloc Nut	-	2	£0.76 (Exc VAT)		0
11	67610500	Rubber Profile	-	2	£18.23 (Exc VAT)	?	0
12	62126600	Plate	-	2	£7.08 (Exc VAT)		0
13	104030	Nyloc Nut M8 x 1.25 x 9.5	-	4	£0.20 (Exc VAT)		0
14	68113100	Lower Spacer Not for USA, CDN	-	8	£4.26 (Exc VAT)		0
14	68113200	Lower Spacer Installed if necessary- -Not for USA, CDN	-	4	£9.20 (Exc VAT)	?	0
14	67007800	Lower Spacer Applicable for USA, CDN	-	4	£2.71 (Exc VAT)		0
14	67610200	Lower Spacer Installed if necessary- -Applicable for USA, CDN	-	2	£2.86 (Exc VAT)		0
14	68314200	Spacer Applicable for CDN	-	2	£453.40 (Exc VAT)	?	0
15	68112900	Spacer Not for USA, CDN	-	8	£4.26 (Exc VAT)	?	0
15	68113000	Spacer Installed if necessary- -Not for USA, CDN	-	4	£4.26 (Exc VAT)	?	0
15	67007600	Spacer Applicable for USA, CDN	-	4	£5.82 (Exc VAT)	?	0
15	67610100	Spacer Installed if necessary- -Applicable for USA, CDN	-	2	£4.57 (Exc VAT)	?	0
16	104114	Nyloc Nut M10 x 1.25 x 12	-	6	£0.30 (Exc VAT)		0
17	12644301	Washer	-	6	£0.62 (Exc VAT)	?	0
	Superseded by 12644364	Washer D.10.20-35x	N	6	£0.64 (Exc VAT)		0
18	68299800	Number Plate Mounting Bracket	-	1	£118.52 (Exc VAT)		0
19	63736400	Front Plate Frame Not for D- -Not for AUS, USA, CDN, J	-	1	£42.81 (Exc VAT)	?	0
19	63736300	Front Plate Frame Applicable for D	-	1	£44.86 (Exc VAT)	?	0
19	65271400	Front Plate Frame Applicable for USA	-	1	£23.59 (Exc VAT)		0
19	65272100	Front Plate Frame Applicable for Korea- -Applicable for J	-	1	POA (Exc VAT)	?	0
19	68304700	Front Plate Frame Applicable for AUS	-	1	POA (Exc VAT)	?	0
20	15687275	Screw 3.5x13	-	4	£0.12 (Exc VAT)	?	0
	Superseded by 15687206	Screw	N	4	£0.17 (Exc VAT)		0
21	14201980	Fixing Block	-	4	£0.11 (Exc VAT)		0
22	14296196	Rivet	-	3	£0.23 (Exc VAT)		0
23	67080900	Lower Pad Applicable for USA	-	2	POA (Exc VAT)	?	0
24	67080800	Upper Pad Applicable for USA	-	2	POA (Exc VAT)	?	0
25	221380	Front Bumper Sensor Parking sensors- -Optional	-	1	£58.62 (Exc VAT)	?	0
26	68976200	LH Support Parking sensors- -Optional	-	1	£55.84 (Exc VAT)	?	0
26	68976100	RH Support Parking sensors- -Optional	-	1	£55.84 (Exc VAT)	?	0
27	68976300	Plate Parking sensors- -Optional- -Not supplied	-	2	POA (Exc VAT)	?	0
28	65864100	Allen Head Screw M6 x 15 TBEI Parking sensors- -Optional	-	4	£1.16 (Exc VAT)	?	0
29	221504	Parking Sensor Parking sensors- -Optional	-	4	£135.31 (Exc VAT)		0
30	187679	External Sensor Tube Parking sensors- -Optional	-	2	£25.04 (Exc VAT)	?	0
31	187678	Spacer Parking sensors- -Optional	-	2	£18.62 (Exc VAT)	?	0
32	187677	Ring Nut Parking sensors- -Optional	-	2	£73.79 (Exc VAT)	?	0
33	69544800	Fastener Parking sensors- -Optional	-	10	£3.15 (Exc VAT)	?	0
34	15924804	Screw 5.5x16 Parking sensors- -Optional	-	10	£3.15 (Exc VAT)	?	0
35	80585900	Grill Fastener Bracket Applicable for "60°anniversario"	-	6	£26.51 (Exc VAT)	?	0
36	67008500	Front Grill Standard	-	1	£1,187.88 (Exc VAT)	?	0
36	81168300	Front Grill High polish grille with polished inserts- -Applicable for "OTO"	-	1	POA (Exc VAT)	?	0
36	81168400	Front Grill High painted black grille with polished black inserts- -Applicable for "OTO"	-	1	POA (Exc VAT)	?	0
36	81168500	Front Grill Anodised grille with polished inserts- -Applicable for "OTO"	-	1	£1,810.19 (Exc VAT)	?	0
37	80549900	Front Grill Applicable for "60°anniversario"- -Not for USA, CDN	-	1	£3,805.79 (Exc VAT)	?	0
37	80988400	Front Grill Applicable for "60°anniversario"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81168600	Front Grill High polish grille with polished inserts and polished white chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	£2,824.86 (Exc VAT)	?	0
37	81168700	Front Grill High painted black grille with polished black inserts and polished white chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81168800	Front Grill Anodised grille with polished inserts and polished white chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	£2,705.34 (Exc VAT)	?	0
37	81194100	Front Grill High polish grille with polished inserts and polished black chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81194200	Front Grill High painted black grille with polished black inserts and polished black chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81194300	Front Grill Anodised grille with polished inserts and polished black chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81194400	Front Grill High painted black grille with polished white inserts and polished white chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	£2,840.34 (Exc VAT)	?	0
37	81194500	Front Grill High painted black grille with polished white inserts and polished black chrome frame- -Applicable for "OTO"- -Not for USA, CDN	-	1	£2,840.34 (Exc VAT)	?	0
37	81380000	Front Grill High polish grille with polished inserts and polished white chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	£2,867.66 (Exc VAT)	?	0
37	81380100	Front Grill High polish grille with polished inserts and polished black chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81380200	Front Grill High painted black grille with polished black inserts and polished white chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81380300	Front Grill High painted black grille with polished black inserts and polished black chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81380400	Front Grill Anodised grille with polished inserts and polished white chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	£2,857.62 (Exc VAT)	?	0
37	81380500	Front Grill Anodised grille with polished inserts and polished black chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81380600	Front Grill High painted black grille with polished white inserts and polished white chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
37	81380700	Front Grill High painted black grille with polished white inserts and polished black chrome frame- -Applicable for "OTO"- -Applicable for USA, CDN	-	1	£3,213.77 (Exc VAT)	?	0
38	69547400	Front Grill Chrome Chromed- -Not for version with parking sensors	-	1	POA (Exc VAT)	?	0
38	80472500	Front Grill Chrome Chromed- -Version with parking sensors	-	1	£2,696.05 (Exc VAT)	?	0
38	81168900	Front Grill Challenge grille in chromed glossy stainless steel and white chromed surround- -Applicable for "OTO"- -Not for version with parking sensors- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81169000	Front Grill Challenge grille in satin black chromed stainless steel and glossy black chromed surround- -Applicable for "OTO"- -Not for version with parking sensors- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81169100	Front Grill Challenge grille in chromed glossy stainless steel and white chromed surround- -Applicable for "OTO"- -Version with parking sensors- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81169200	Front Grill Challenge grille in satin black chromed stainless steel and glossy black chromed surround- -Applicable for "OTO"- -Version with parking sensors- -Not for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81199700	Front Grill Challenge grille in chromed glossy stainless steel and white chromed surround- -Applicable for "OTO"- -Not for version with parking sensors- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81199900	Front Grill Challenge grille in satin black chromed stainless steel and glossy black chromed surround- -Applicable for "OTO"- -Not for version with parking sensors- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81199800	Front Grill Challenge grille in chromed glossy stainless steel and white chromed surround- -Applicable for "OTO"- -Version with parking sensors- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
38	81200000	Front Grill Challenge grille in satin black chromed stainless steel and glossy black chromed surround- -Applicable for "OTO"- -Version with parking sensors- -Applicable for USA, CDN	-	1	POA (Exc VAT)	?	0
