No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	144654	Front Central Space Frame	-	1	POA (Exc VAT)			?	0
2	165183	RH Front Space Frame F512m	-	1	£1,582.98 (Exc VAT)				0
3	165185	LH Front Space Frame F512m	-	1	£1,582.98 (Exc VAT)				0
4	61483100	Clip	-	1	£23.35 (Exc VAT)				0
5	63037300	RH Front Inner	-	1	POA (Exc VAT)			?	0
6	63037400	LH Front Inner Panel	-	1	£376.01 (Exc VAT)				0
7	61483400	Nut Screw	-	4	£9.28 (Exc VAT)				0
8	61483500	Nut Screw Plate	-	4	£4.35 (Exc VAT)				0
9	63455100	LH Front Mudguard Strip Not for USA, CDN, SA, J	-	1	£198.82 (Exc VAT)				0
9	63046400	LH Front Mudguard Strip Valid for USA, CDN, SA, J	-	1	£148.17 (Exc VAT)				0
9	63455000	RH Front Mudguard Strip Not for USA, CDN, SA, J	-	1	£198.82 (Exc VAT)				0
9	63046300	RH Front Mudguard Strip Valid for USA, CDN, SA, J	-	1	£148.17 (Exc VAT)				0
10	63032200	Door Hinges	-	4	£47.94 (Exc VAT)				0
11	123391	Tube	-	1	POA (Exc VAT)			?	0
12	61484000	Upper Stiffener	-	2	£6.47 (Exc VAT)				0
13	61484100	Lower Stiffener	-	2	£6.99 (Exc VAT)				0
14	61484200	Bracket	-	2	£6.91 (Exc VAT)				0
15	63026200	Door Hinge Pin	MP -	4	£37.97 (Exc VAT)				0
16	61484400	RH Pillar	-	1	£36.57 (Exc VAT)				0
17	61484500	LH Pillar	-	1	£34.97 (Exc VAT)				0
18	62926400	Windshield Curved with A/C Case LHD With air conditioning case - Not for GD	-	1	POA (Exc VAT)			?	0
18	63684700	Windshield Curved with A/C Case RHD With air conditioning case - Valid for GD	-	1	POA (Exc VAT)			?	0
19	61484700	Front Rib	-	1	£42.38 (Exc VAT)				0
20	61484800	Central Rib	-	1	£42.38 (Exc VAT)				0
21	61488100	Upper Frame	-	1	POA (Exc VAT)			?	0
22	61484900	RH Frame	-	1	£173.53 (Exc VAT)				0
23	61485000	LH Rear Door Pillar	-	1	£173.53 (Exc VAT)				0
24	61485200	Bracket	-	1	POA (Exc VAT)			?	0
25	62926200	RH Belt Housing	-	1	£22.39 (Exc VAT)				0
26	62926300	LH Belt Housing	-	1	POA (Exc VAT)			?	0
27	61485500	Reinforcement	-	2	£18.68 (Exc VAT)				0
28	61485600	Reinforcement	-	2	£14.83 (Exc VAT)				0
29	61485600	Reinforcement	-	4	£14.83 (Exc VAT)				0
30	61488000	Plate	-	1	£74.45 (Exc VAT)				0
31	61487900	LH Upper Frame	-	1	POA (Exc VAT)			?	0
31	61487800	RH Upper Frame	-	1	£139.55 (Exc VAT)				0
32	61558300	RH Inner Connection Plate Complete Not for CH	-	1	POA (Exc VAT)			?	0
32	63461400	RH Inner Connection Plate Complete Valid for CH	-	1	POA (Exc VAT)			?	0
33	61558400	LH Inner Connection Plate Complete Not for CH	-	1	£361.19 (Exc VAT)				0
33	63461500	LH Inner Connection Plate Complete Valid for CH	-	1	£159.93 (Exc VAT)				0
34	61486400	Fuel Filler	-	1	£35.70 (Exc VAT)				0
35	64678000	LH Light Mounting Frame	-	1	£316.75 (Exc VAT)				0
35	64677900	RH Light Mounting Frame	-	1	£316.75 (Exc VAT)				0
36	61486700	Frame	-	1	£43.08 (Exc VAT)				0
37	61486800	Rear Window Panel	-	1	£80.40 (Exc VAT)				0
38	61487000	LH Roof Side Rail	-	1	£52.01 (Exc VAT)				0
38	61486900	RH Roof Side Rail	-	1	£52.01 (Exc VAT)				0
39	61487200	LH Door Upper Frame	-	1	£39.90 (Exc VAT)				0
39	61487100	RH Door Upper Frame	-	1	£39.90 (Exc VAT)				0
40	61487300	Pillar	-	1	POA (Exc VAT)			?	0
41	61487400	Pillar	-	1	£32.83 (Exc VAT)				0
42	61487500	Frame	-	1	POA (Exc VAT)			?	0
43	12179690	Hose Clip	-	1	POA (Exc VAT)			?	0
	Superseded by 13000190	Hose Clip 10-16mm	N	1	£0.50 (Exc VAT)				0
44	61485100	Reinforcement	-	1	£17.93 (Exc VAT)				0
45	61580500	LH Aluminium Strip	-	1	£124.99 (Exc VAT)				0
45	61580400	RH Aluminium Strip	-	1	£119.03 (Exc VAT)				0
46	145530	Flat Bed Complete LHD (2 Piece) Not for GD	-	1	£3,504.97 (Exc VAT)				0
46	150303	Flat Bed Complete RHD - 2 Pieces Valid for GD	-	1	POA (Exc VAT)			?	0
47	61580300	LH Door Hinge Zinc Foil	-	2	£2.10 (Exc VAT)				0
47	61580200	RH Door Hinge Zinc Foil	-	2	£3.47 (Exc VAT)				0
48	50206408	Countersunk Socket Screw	MP -	12	£14.74 (Exc VAT)				0
49	11087974	Circlip	-	4	£0.16 (Exc VAT)				0
50	157385	LH Door Clip	-	2	£0.16 (Exc VAT)				0
51	15687801	Screw	-	3	£0.06 (Exc VAT)				0
52	63052000	Water Drain Tube	-	2	£1.51 (Exc VAT)				0
53	13000190	Hose Clip 10-16mm	-	2	£0.50 (Exc VAT)				0
54	52770500	Pipe Grommet Not as spare part now - Replaced by 62770500	-	2	POA (Exc VAT)			?	0
	Superseded by 62770500	Cable Grommet	N	2	£1.37 (Exc VAT)				0
55	64545200	Cables Pipe LHD Not for GD	-	1	£54.85 (Exc VAT)				0
55	63423000	Cables Pipe RHD Valid for GD	-	1	POA (Exc VAT)			?	0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

Recently Viewed

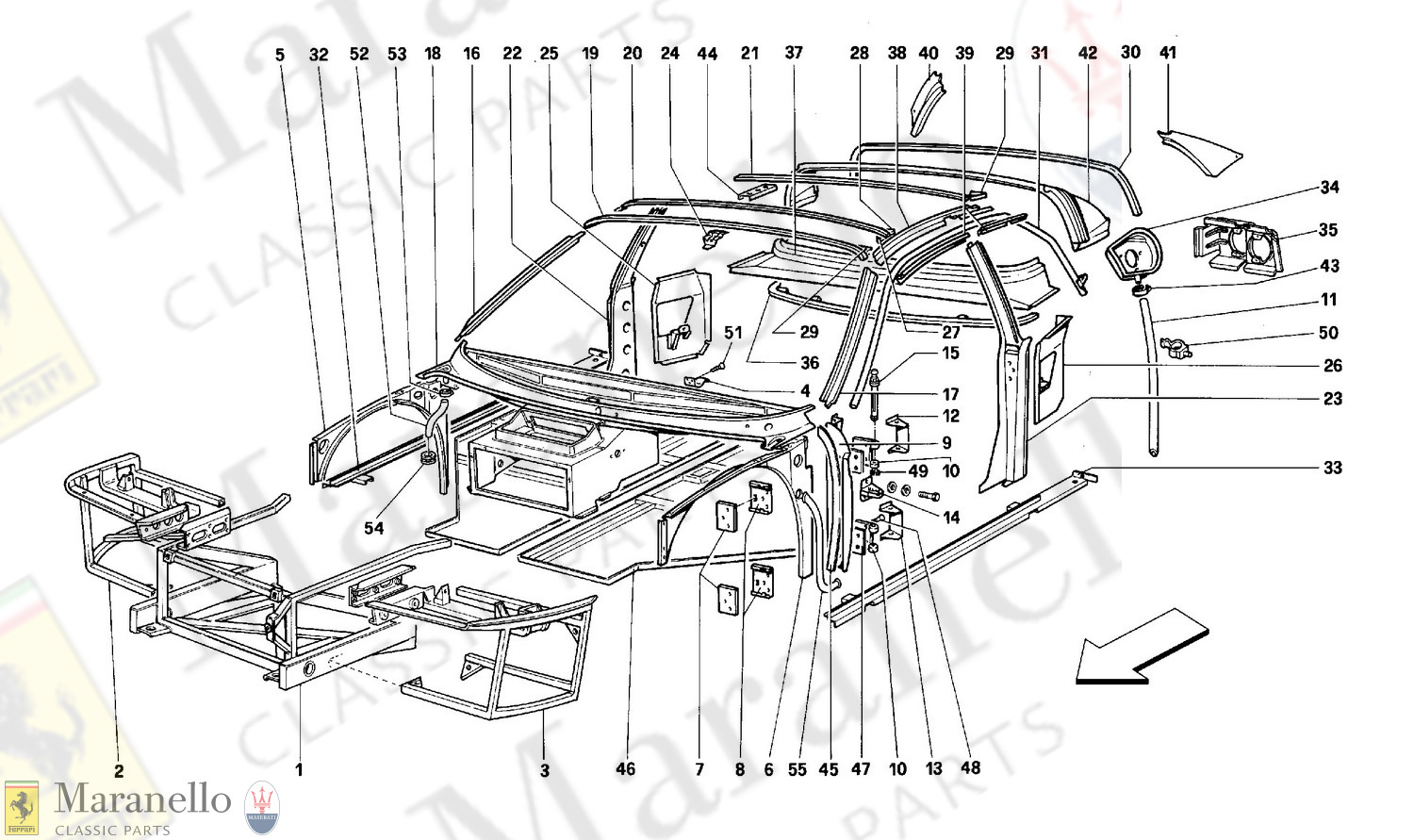

Ferrari / 512 M / 103 - Body - Internal Components
