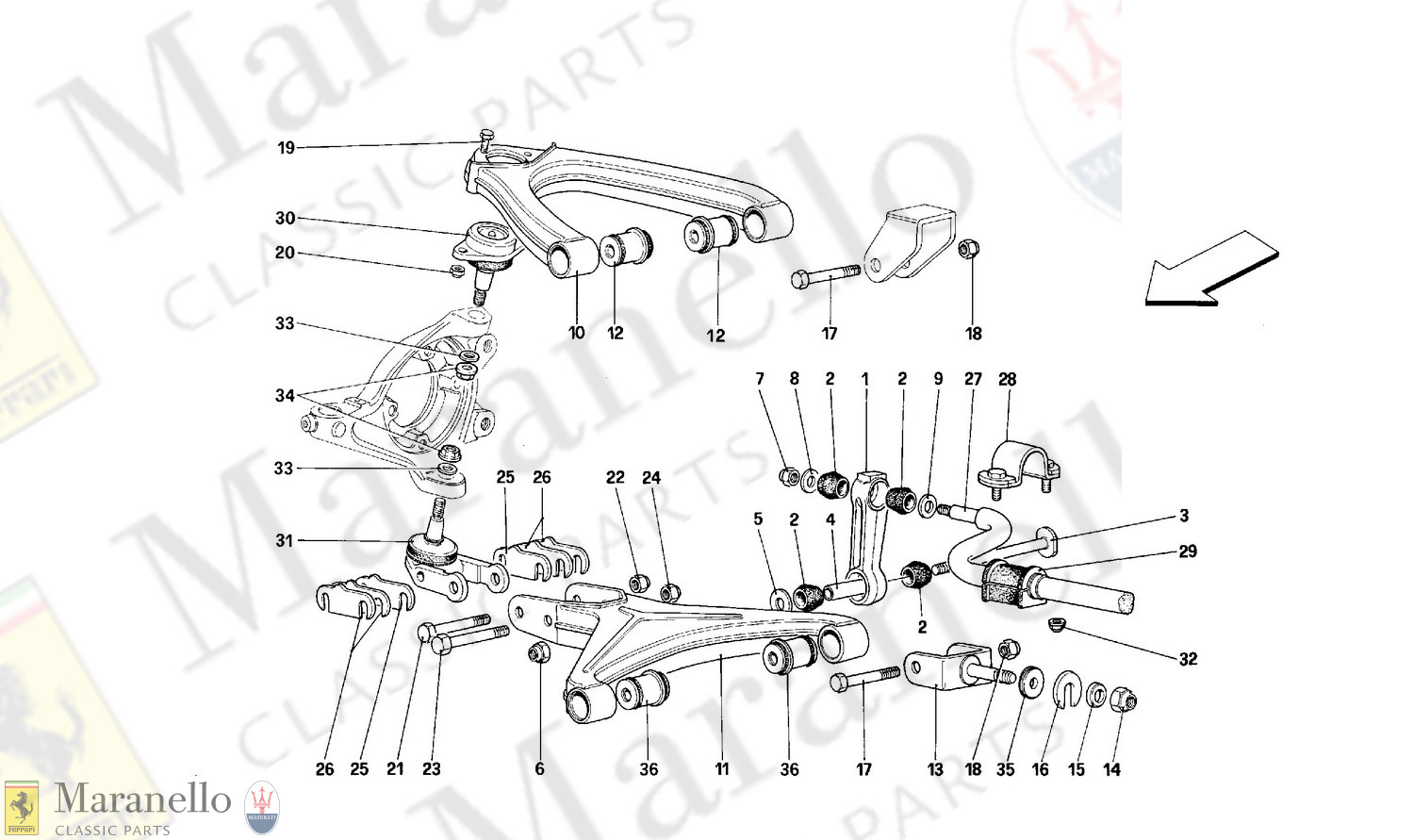

Ferrari / 512 M / 046 - Front Suspension - Wishbones

Reset

< Prev Next >

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Right Cylinder Head

004 - Left Cylinder Head

005 - Timing System - Controls

006 - Timing System - Covers

007 - Timing System - Valves

008 - Fuel Pump And Pipes

009 - Fuel Tanks

010 - Anti-Evaporative Emission Control Systems

011 - Air Injection - Ignition

012 - Engine Ignition

013 - Secondary Air Pump And Lines

014 - Air Intake Manifolds

015 - Air Intake

016 - Throttle Control - Lhd

017 - Throttle Control -RHD

018 - Exhaust System -Not For Usa, Cdn, Aus, Ch

019 - Exhaust System -Valid For Usa, Cdn, Aus, Ch

020 - Blow By

021 - Lubrication

022 - Lubrication - Pumps And Oil Filter

023 - Engine Cooling

024 - Cooling System

025 - Water Pump

026 - Clutch Controls

027 - Clutch Release Control - Lhd

028 - Clutch Release Control -RHD

029 - Gearbox Transmission

030 - Gearbox - Mounting And Covers

031 - Gearbox

032 - Main Shaft Gears

033 - Lay Shaft Gears

034 - Gearbox Controls

035 - Differential And Axle Shafts

036 - Brake Hydraulic System - Lhd

037 - Brake Hydraulic System - RHD

038 - Braking System

039 - Abs Hydraulic Control Unit

040 - Front Brakes Calipers

041 - Rear Brakes Calipers

042 - Hand - Brake Control

043 - Steering Box And Linkage

044 - Steering Column

045 - Front Suspension - Shock Absorber And Brake Disc

046 - Front Suspension - Wishbones

047 - Rear Suspension - Brake Disc

048 - Rear Suspension - Wishbones And Shock Absorers

049 - Wheels

050 - Battery

051 - Current Generator

052 - Air Conditioning System

053 - Air Conditioning Compressor

054 - Tool Kit And Equipment

055 - Spare Wheel And Equipment - Optional

101 - Body - External Components

102 - Body - Internal Components

103 - Body - Internal Components

104 - Rear Frame

105 - External Finishing

106 - Bumpers

107 - Carpet For Luggage Compartment And Insulation Panels

108 - Front Hood

109 - Rear Hood

110 - Door - Finishing

111 - Door - Locking Device

112 - Door - Power Window

113 - Windows

114 - Accessories And Trims

115 - Passive Safety Belts System -Valid For Usa

116 - Carpets

117 - Seats And Safety Belts -Not For Usa

118 - Seats And Safety Belts -Valid For Usa

119 - Sport Seat -Not For CDN

120 - Dashboard

121 - Central Tunnel -Not For Usa

122 - Central Tunnel -Valid For Usa

123 - Instruments And Passenger Compartment Accessories

124 - Headlights

125 - Lamps

126 - Electric System

127 - Valves And Relays

128 - Windshield Wiper, Washer And Horns

129 - Air-Conditioning Unit

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	114691	Anti Roll Bar Link	-	2	£586.96 (Exc VAT)		0
2	100984	Rubber Bush	-	8	£8.32 (Exc VAT)		0
3	132665	Bolt	-	2	POA (Exc VAT)	?	0
4	100985	Inner Bush	MP -	2	£22.12 (Exc VAT)		0
5	105334	Spacer	MP -	2	£30.61 (Exc VAT)		0
6	148020	Nut M12 x 1.25	-	2	£3.47 (Exc VAT)		0
7	102742	Nyloc Nut M10x1.25x10	-	2	£0.32 (Exc VAT)		0
8	112874	Washer GTS	-	2	POA (Exc VAT)	?	0
9	10520224	Washer	-	2	POA (Exc VAT)	?	0
	Superseded by 10520221	Washer	N	2	£1.41 (Exc VAT)		0
10	133094	Top Suspension Lever	MP -	2	£1,689.72 (Exc VAT)		0
11	159154	Front Lower Suspension Lever	MP -	2	£819.52 (Exc VAT)		0
12	154537	Suspension Lever Bush	MP -	4	£44.56 (Exc VAT)		0
13	146462	Suspension Fork	-	4	£139.42 (Exc VAT)		0
14	150238	Nyloc Nut M14 x 1.5 x 14	-	4	£0.21 (Exc VAT)		0
15	101041	Washer 14.5x24x2.5	-	4	£0.18 (Exc VAT)		0
16	101039	Shim Washer 1.00mm Possible mounting	MP -	1	£2.07 (Exc VAT)		0
16	107338	Shim Washer 1.50mm Possible mounting	MP -	1	£18.65 (Exc VAT)		0
16	107339	Shim Washer 2.00mm Possible mounting	MP -	1	£1.59 (Exc VAT)		0
16	107340	Shim Washer 2.50mm Possible mounting	MP -	1	£1.71 (Exc VAT)		0
16	107341	Shim Washer 3.00mm Possible mounting	MP -	1	£7.35 (Exc VAT)		0
16	107342	Shim Washer 3.25mm Possible mounting	-	1	£0.74 (Exc VAT)		0
17	106419	Suspension Bolt M12 x 1.25 x 71	-	8	£29.25 (Exc VAT)		0
18	102825	Nyloc Nut 12x1.25x12	-	8	£0.72 (Exc VAT)		0
19	16043721	Bolt	-	4	POA (Exc VAT)	?	0
20	16104111	Nut	-	4	POA (Exc VAT)	?	0
	Superseded by 104030	Nyloc Nut M8 x 1.25 x 9.5	N	4	£0.20 (Exc VAT)		0
21	15971734	Suspension Bolt	MP -	2	£25.41 (Exc VAT)		0
22	102742	Nyloc Nut M10x1.25x10	-	2	£0.32 (Exc VAT)		0
23	132667	Bolt	MP -	2	£20.99 (Exc VAT)		0
24	102825	Nyloc Nut 12x1.25x12	-	2	£0.72 (Exc VAT)		0
25	101022	Lower suspension Shim 1.5mm Possible mounting	-	0	£1.22 (Exc VAT)		0
26	115073	Shim 1.2mm Possible mounting	-	0	£1.20 (Exc VAT)		0
27	149565	Front Anti Roll Bar	-	1	£208.08 (Exc VAT)		0
28	138389	Roll Bar Bracket	-	2	POA (Exc VAT)	?	0
29	149566	Anti Roll Bar Rubber	-	2	£57.17 (Exc VAT)		0
30	132776	Top Ball Joint	-	2	£96.68 (Exc VAT)	?	0
31	133944	Lower Ball Joint	MP -	2	£139.33 (Exc VAT)	?	0
32	14058511	Nut M8 x 8	-	4	£0.17 (Exc VAT)		0
33	122237	Washer	-	4	£3.45 (Exc VAT)		0
34	149807	Self-Locking Nut For Top And Bottom Ball Joints	-	4	£0.88 (Exc VAT)		0
35	159406	Washer	-	4	£11.61 (Exc VAT)		0
36	111617	Bush	-	4	£44.56 (Exc VAT)	?	0
	Superseded by 154537	Suspension Lever Bush	MP N	4	£44.56 (Exc VAT)		0
