Ferrari / 412 / 102 - Electrical System, Fuses And Relays

Reset

< Prev Next >

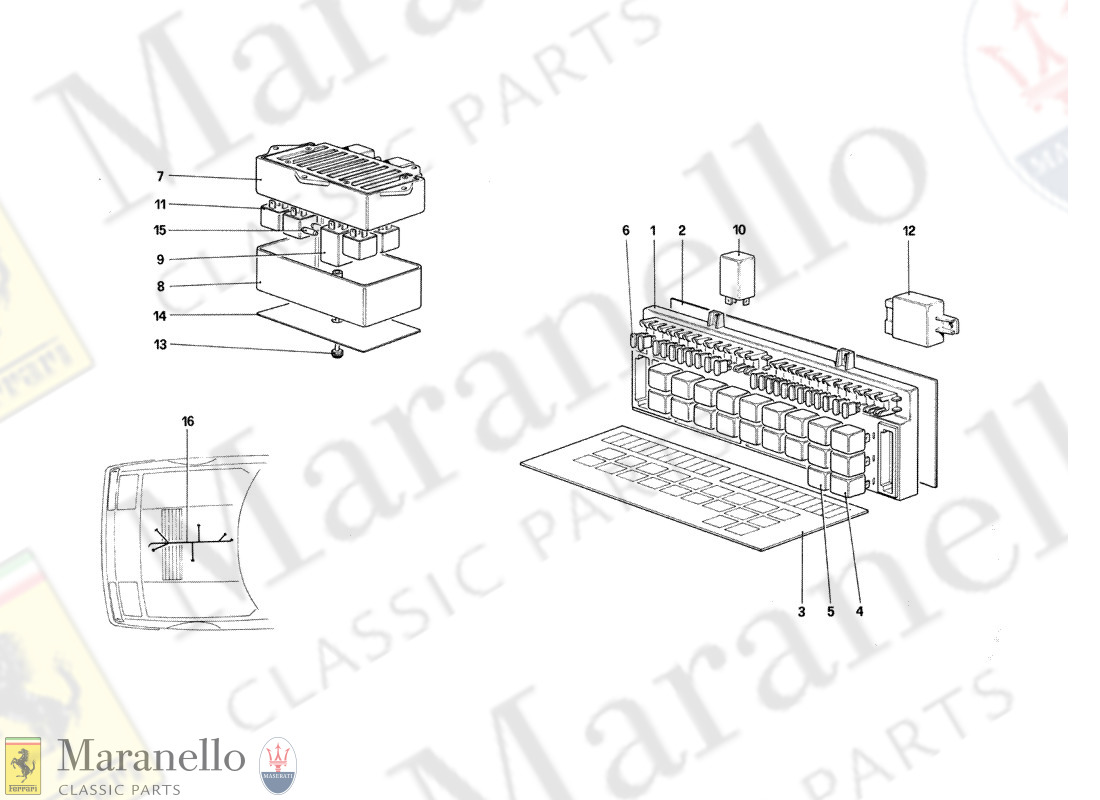

102 - Electrical System, Fuses And Relays

001 - Crankcase

003 - Crankshaft - Connecting Rods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Timing System - Valves

007 - Timing System - Housing And Covers

008 - Timing System - Controls

009 - Air Injection - For Ch Version

010 - Fuel Tanks, Pumps, Lines

011 - Fuel Injection System - Fuel Distributors, Lines

012 - Fuel Injection System - Air Intake, Lines

013 - Throttle Controls (For Lhd)

014 - Throttle Controls (For RHD)

015 - Blow-By System

016 - Exhaust System

016A - Exhaust System - Swiss Cars

017 - Oil Radiator And Filters

018 - Water Pump And Engine Oil

019 - Cooling System

020 - Engine Flywheel And Clutch Housing Spacer - 4

021 - Automatic Transmission - 412A

022 - Vacuum Amplifying Valve And Oil Circuit - 412A

023 - Outside Gearbox Controls - 412A

024 - Clutch System And Control - 412M - To Car 70005

024A - Clutch System And Control - 412M - From Car 70005

025 - Clutch Release Control - 412M Lhd

026 - Clutch Release Control - 412M RHD

027 - Gearbox - 412M

028 - Main Shaft And Oil Pump - 412M

029 - Layshaft - 412M

030 - Inside And Outside Gearbox Controls - 412M

031 - Propeller Shaft

032 - Differential Housing

033 - Differential And Axle Shafts

034 - Brakes Hydraulic Control - 412A Lhd

035 - Brakes Hydraulic Control - 412A RHD

036 - Brakes Hydraulic Control - 412M Lhd

037 - Brakes Hydraulic Control - 412M RHD

038 - Brake Booster Vacuum Pump

039 - Brake System

041 - Calipers For Front And Rear Brakes

042 - Hand - Brake Control

043 - Hydraulic Steering System

044 - Power Steering Oil Tank - Oil Pneumatic Self Levelling Device

045 - Steering Linkage

046 - Steering Column

047 - Front Suspension - Shock Absorber And Brake Disc

048 - Front Suspension - Levers

049 - Rear Suspension - Oil Tank And Oil Pump

050 - Rear Suspension - Self - Levelling Valve And Oil Lines

051 - Rear Suspension - Brake Disc

052 - Rear Suspension - Levers And Shock Absorbers

054 - Engine Ignition

055 - Alternators And Starting Motor

056 - Air Conditioning System

101 - Front And Rear Lights - Horns And Aerial

102 - Electrical System, Fuses And Relays

103 - Ventilation Fans, Heating, Windshield Washer And Horns

201 - Front Body Sub-Panels

202 - Rear Body Sub-Panels

203 - Roof And Pillar Panels

204 - Front And Side Body Panels

205 - Rear Body Panels

206 - Engine Cover

206A - Engine Cover

208 - Trunk Lid, Seals And Locking Mechansim

208A - Trunk Lid, Seals And Locking Mechanism

209 - Front Bumper

210 - Rear Bumper

211 - Front Grill And Emblem

212 - Front Windshield And Seals

213 - Rear Windshield And Seals

214 - Badges, Side Window And Door Seals

215 - Center Console

216 - Center Console (Swiss Version)

217 - Center Console Switchgear

218 - Center Console (For RHD)

219 - Carpets And Interior Insulation

220 - Seat Belts, Sun Visors And Interior Trim

221 - Roof Lining And Rear Shelf

222 - Front Seats

222A - Front Seats

223 - Rear Seats

223A - Rear Seats

224 - License Plate Mounting

225 - Instruments And Dashboard

226 - Windshield Wipers

226A - Windshield Wipers

227 - Electrical System

228 - Front Lights And Headlight Lifting Devices

228A - Rear Lights

229 - Cabin Heating And Aeration

230 - Heating Ventilation Only cars with Rear Air Conditioner

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
-	128739	Relay Board	-	1	POA (Exc VAT)			?	0
1	118873	Relay Board	-	1	POA (Exc VAT)			?	0
2	116055	Rear Cover	-	1	POA (Exc VAT)			?	0
3	130924	Data Plate	-	1	£35.24 (Exc VAT)				0
4	40130106	Relay	MP -	7	£15.00 (Exc VAT)				0
5	40130007	Relay	MP -	13	£32.99 (Exc VAT)				0
6	125243	Fuse 20Amp	-	5	£0.30 (Exc VAT)				0
6	125242	Fuse 15Amp	-	10	£0.44 (Exc VAT)				0
6	125241	Blade Fuse 10A	-	3	£0.44 (Exc VAT)				0
6	125240	Fuse 7.5A	-	2	£0.45 (Exc VAT)				0
6	126031	Fuse 25Amp	-	1	£0.40 (Exc VAT)				0
6	11054790	Fuse 5Amp Blade Fuse	-	1	POA (Exc VAT)			?	0
7	127078	Secondary Relay Board	-	1	£512.04 (Exc VAT)				0
8	127081	Relay Board Cover	-	1	£34.58 (Exc VAT)				0
9	61111200	Indicator Flasher Unit	-	1	POA (Exc VAT)			?	0
10	60870200	Internal Light Delay Relay Unit	-	1	£110.25 (Exc VAT)			?	0
11	40130007	Relay	MP -	7	£32.99 (Exc VAT)				0
12	119660	Wiper Intermittence	MP -	1	POA (Exc VAT)			?	0
13	116138	Screw	-	1	£5.19 (Exc VAT)				0
14	127822	Indication Label	-	1	£30.30 (Exc VAT)				0
15	11048990	Fuse 16 Amp Ceramic	-	4	£0.44 (Exc VAT)				0
16	127075	Engine Cable	-	1	£267.55 (Exc VAT)				0

Make an Enquiry Report an Issue
