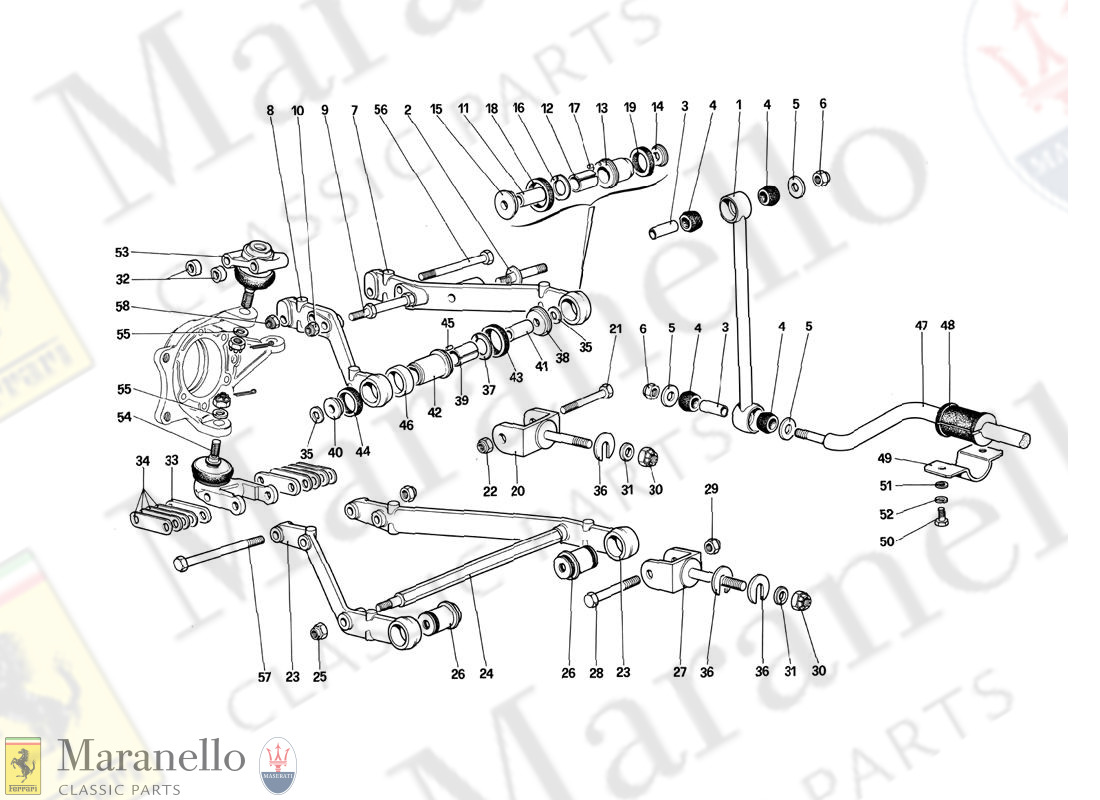

Ferrari / 412 / 048 - Front Suspension - Levers

Reset

< Prev Next >

001 - Crankcase

002 - Oil Sump

003 - Crankshaft - Connecting Rods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Timing System - Valves

007 - Timing System - Housing And Covers

008 - Timing System - Controls

009 - Air Injection - For Ch Version

010 - Fuel Tanks, Pumps, Lines

011 - Fuel Injection System - Fuel Distributors, Lines

012 - Fuel Injection System - Air Intake, Lines

013 - Throttle Controls (For Lhd)

014 - Throttle Controls (For RHD)

015 - Blow-By System

016 - Exhaust System

016A - Exhaust System - Swiss Cars

017 - Oil Radiator And Filters

018 - Water Pump And Engine Oil

019 - Cooling System

020 - Engine Flywheel And Clutch Housing Spacer - 4

021 - Automatic Transmission - 412A

022 - Vacuum Amplifying Valve And Oil Circuit - 412A

023 - Outside Gearbox Controls - 412A

024 - Clutch System And Control - 412M - To Car 70005

024A - Clutch System And Control - 412M - From Car 70005

025 - Clutch Release Control - 412M Lhd

026 - Clutch Release Control - 412M RHD

027 - Gearbox - 412M

028 - Main Shaft And Oil Pump - 412M

029 - Layshaft - 412M

030 - Inside And Outside Gearbox Controls - 412M

031 - Propeller Shaft

032 - Differential Housing

033 - Differential And Axle Shafts

034 - Brakes Hydraulic Control - 412A Lhd

035 - Brakes Hydraulic Control - 412A RHD

036 - Brakes Hydraulic Control - 412M Lhd

037 - Brakes Hydraulic Control - 412M RHD

038 - Brake Booster Vacuum Pump

039 - Brake System

040 - Abs

041 - Calipers For Front And Rear Brakes

042 - Hand - Brake Control

043 - Hydraulic Steering System

044 - Power Steering Oil Tank - Oil Pneumatic Self Levelling Device

045 - Steering Linkage

046 - Steering Column

047 - Front Suspension - Shock Absorber And Brake Disc

048 - Front Suspension - Levers

049 - Rear Suspension - Oil Tank And Oil Pump

050 - Rear Suspension - Self - Levelling Valve And Oil Lines

051 - Rear Suspension - Brake Disc

052 - Rear Suspension - Levers And Shock Absorbers

053 - Wheels

054 - Engine Ignition

055 - Alternators And Starting Motor

056 - Air Conditioning System

057 - Tool-Kit

101 - Front And Rear Lights - Horns And Aerial

102 - Electrical System, Fuses And Relays

103 - Ventilation Fans, Heating, Windshield Washer And Horns

201 - Front Body Sub-Panels

202 - Rear Body Sub-Panels

203 - Roof And Pillar Panels

204 - Front And Side Body Panels

205 - Rear Body Panels

206 - Engine Cover

206A - Engine Cover

207 - Doors

208 - Trunk Lid, Seals And Locking Mechansim

208A - Trunk Lid, Seals And Locking Mechanism

209 - Front Bumper

210 - Rear Bumper

211 - Front Grill And Emblem

212 - Front Windshield And Seals

213 - Rear Windshield And Seals

214 - Badges, Side Window And Door Seals

215 - Center Console

216 - Center Console (Swiss Version)

217 - Center Console Switchgear

218 - Center Console (For RHD)

219 - Carpets And Interior Insulation

220 - Seat Belts, Sun Visors And Interior Trim

221 - Roof Lining And Rear Shelf

224 - License Plate Mounting

225 - Instruments And Dashboard

226 - Windshield Wipers

226A - Windshield Wipers

227 - Electrical System

228 - Front Lights And Headlight Lifting Devices

228A - Rear Lights

229 - Cabin Heating And Aeration

230 - Heating Ventilation Only cars with Rear Air Conditioner

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	100986	Roll Bar Link	-	2	£143.17 (Exc VAT)		0
2	100979	Pin	-	2	£75.75 (Exc VAT)		0
3	100985	Inner Bush	MP -	4	£22.12 (Exc VAT)		0
4	100984	Rubber Bush	-	8	£8.32 (Exc VAT)		0
5	105334	Spacer	MP -	6	£30.61 (Exc VAT)		0
6	16105121	Nyloc Nut	-	4	POA (Exc VAT)	?	0
	Superseded by 148020	Nut M12 x 1.25	N	4	£3.47 (Exc VAT)		0
7	125683	RH Upper Arm	-	1	£290.59 (Exc VAT)		0
7	125682	LH Upper Arm	-	1	£290.59 (Exc VAT)		0
8	125684	RH Upper Arm	-	1	£290.59 (Exc VAT)		0
8	125681	LH Upper Arm	-	1	£290.59 (Exc VAT)		0
9	125905	Spacer Bar	-	2	£91.88 (Exc VAT)		0
10	12575621	Nyloc Nut	-	4	POA (Exc VAT)	?	0
	Superseded by 104114	Nyloc Nut M10 x 1.25 x 12	N	4	£0.30 (Exc VAT)		0
11	109904	Suspension Bush	MP -	2	POA (Exc VAT)	?	0
12	101010	Suspension Inner Bush	MP -	2	£4.87 (Exc VAT)		0
13	105446	Bush	-	2	POA (Exc VAT)	?	0
14	105443	Suspension Bush Plate	-	2	£14.47 (Exc VAT)		0
15	109901	Suspension Washer	MP -	2	£56.80 (Exc VAT)	?	0
16	101009	Suspension Thrust Washer	MP -	2	£7.26 (Exc VAT)		0
17	100796	Locating Pin	-	2	£3.47 (Exc VAT)		0
18	105342	Large Suspension Seal	MP -	2	£18.81 (Exc VAT)		0
19	105343	Small Suspension Seal	MP -	2	£14.70 (Exc VAT)		0
20	128173	Suspension Fork	-	2	£76.73 (Exc VAT)		0
21	15541321	Bolt	-	2	£20.07 (Exc VAT)		0
22	16105121	Nyloc Nut	-	2	POA (Exc VAT)	?	0
23	125685	Suspension Arm Up to 3 1.3.86	-	4	£290.59 (Exc VAT)		0
23	129584	Lower Front Lever Arm From to 1.4.86	-	4	POA (Exc VAT)	?	0
24	125909	Spacer Bar	-	2	£91.88 (Exc VAT)		0
25	12575621	Nyloc Nut	-	4	POA (Exc VAT)	?	0
26	111617	Bush With lever no. 125685	-	4	£44.56 (Exc VAT)	?	0
	Superseded by 154537	Suspension Lever Bush	MP N	4	£44.56 (Exc VAT)		0
26	129583	Silentbloc(Wa Type) With lever no. 129584	-	4	POA (Exc VAT)	?	0
	Superseded by 134883	Silent Bloc	MP N	4	£55.81 (Exc VAT)		0
27	101035	Suspension Pick-Up Fork With lever no. 125685	-	4	POA (Exc VAT)	?	0
27	116690	Suspension Fork With lever no. 129584	-	4	POA (Exc VAT)	?	0
	Superseded by 177707	Rear Lower Susp Fork	N	4	£502.08 (Exc VAT)		0
28	15541321	Bolt With lever no 125685	-	4	£20.07 (Exc VAT)		0
28	12575821	Nut With lever no. 129584	-	4	POA (Exc VAT)	?	0
29	16105121	Nyloc Nut With lever no. 125685	-	4	POA (Exc VAT)	?	0
29	106422	Bolt M14 x 1.5 x 84 With lever no. 129584	-	4	£23.27 (Exc VAT)		0
30	101040	Locking Nut	MP -	6	£12.97 (Exc VAT)		0
31	101041	Washer 14.5x24x2.5	-	6	£0.18 (Exc VAT)		0
32	128172	Spacer	-	4	£7.08 (Exc VAT)		0
33	101021	Shim	-	4	POA (Exc VAT)	?	0
34	101022	Lower suspension Shim 1.5mm	-	16	£1.22 (Exc VAT)		0
35	101004	Shim Eventual fitting	MP -	4	£48.83 (Exc VAT)		0
35	113324	Shim 3.80mm	-	4	POA (Exc VAT)	?	0
35	113325	Shim 3.60mm	-	4	£5.03 (Exc VAT)	?	0
35	113326	Shim 3.40mm	-	4	£5.65 (Exc VAT)	?	0
35	113327	Shim 3.20mm	-	4	£5.03 (Exc VAT)	?	0
35	113328	Shim 3.00mm	-	4	£5.03 (Exc VAT)	?	0
35	113329	Shim 2.80mm	-	4	POA (Exc VAT)	?	0
35	113330	Shim 2.60mm	-	4	£5.03 (Exc VAT)	?	0
35	113331	Shim 2.40mm	-	4	£5.03 (Exc VAT)	?	0
35	113332	Shim 2.20mm	-	4	£6.28 (Exc VAT)	?	0
35	113333	Shim 2.00mm	-	4	POA (Exc VAT)	?	0
36	107340	Shim Washer 2.50mm Eventual fitting	MP -	10	£1.71 (Exc VAT)		0
36	101039	Shim Washer 1.00mm	MP -	10	£2.07 (Exc VAT)		0
36	101038	Washer 1.5mm	-	10	POA (Exc VAT)	?	0
36	107339	Shim Washer 2.00mm	MP -	10	£1.59 (Exc VAT)		0
36	107341	Shim Washer 3.00mm	MP -	10	£7.35 (Exc VAT)		0
36	107342	Shim Washer 3.25mm	-	10	£0.74 (Exc VAT)		0
37	101009	Suspension Thrust Washer	MP -	2	£7.26 (Exc VAT)		0
38	109901	Suspension Washer	MP -	2	£56.80 (Exc VAT)	?	0
39	101010	Suspension Inner Bush	MP -	2	£4.87 (Exc VAT)		0
40	105443	Suspension Bush Plate	-	2	£14.47 (Exc VAT)		0
41	109903	Suspension Bush	MP -	2	£93.76 (Exc VAT)		0
42	105442	Bush	-	2	£78.30 (Exc VAT)		0
43	105342	Large Suspension Seal	MP -	2	£18.81 (Exc VAT)		0
44	105343	Small Suspension Seal	MP -	2	£14.70 (Exc VAT)		0
45	100796	Locating Pin	-	2	£3.47 (Exc VAT)		0
46	128174	Suspension Spacer	-	2	POA (Exc VAT)	?	0
47	125670	Front Stabilizer Bar	-	1	POA (Exc VAT)	?	0
	Superseded by 125650	Front Anti Roll Bar	N	1	£310.34 (Exc VAT)		0
48	108744	Anti-Roll Bar Rubber Bush	MP -	2	£20.22 (Exc VAT)		0
49	101050	ARB Bracket	-	2	£8.43 (Exc VAT)		0
50	106002	Bolt	-	4	POA (Exc VAT)	?	0
51	12625621	Washer	-	4	POA (Exc VAT)	?	0
52	10516671	Washer	-	4	POA (Exc VAT)	?	0
	Superseded by 127496	Spring Washer 8mm	N	4	£0.05 (Exc VAT)		0
53	116280	Upper Ball Joint	- £££	2	POA (Exc VAT)	?	0
	Alternative 116280/A	Upper Ball Joint	MP N	2	£135.73 (Exc VAT)		0
54	114462	Lower Ball Joint	MP -	2	POA (Exc VAT)	?	0
54	133944	Lower Ball Joint	MP -	2	£139.33 (Exc VAT)	?	0
55	101445	Washer	-	4	£0.62 (Exc VAT)		0
56	121660	Screw	MP -	4	POA (Exc VAT)	?	0
57	126276	Bolt	-	2	£14.01 (Exc VAT)		0
58	12575621	Nyloc Nut	-	6	POA (Exc VAT)	?	0
