No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	9111153	Oil Sump	-	1	POA (Exc VAT)			?	0
2	9111354	Sump Pan	-	1	POA (Exc VAT)			?	0
3	95860009	O-Ring	MP -	1	£3.50 (Exc VAT)				0
4	9111326	Oil Dip Stick	-	1	£114.47 (Exc VAT)				0
5	94350	Stud	-	8	POA (Exc VAT)			?	0
	Alternative 92533	Stud	N	8	£1.56 (Exc VAT)				0
6	15896411	RH Thread Nut	-	8	POA (Exc VAT)			?	0
	Superseded by 15896414	Nut	N	8	£0.06 (Exc VAT)				0
7	106849	Spring Washer	-	8	POA (Exc VAT)			?	0
	Superseded by 127493	Spring Washer 5mm	N	8	£0.07 (Exc VAT)				0
8	94977	Washer	-	8	POA (Exc VAT)			?	0
9	9111159/D	RH Sump Baffle	-	1	POA (Exc VAT)			?	0
	Alternative 9111159	LH Sump Baffle	N	1	£17.81 (Exc VAT)				0
10	9111159/S	LH Sump Baffle	-	1	POA (Exc VAT)			?	0
	Alternative 9111159	LH Sump Baffle	N	1	£17.81 (Exc VAT)				0
11	9111157	Cylinder Block To Sump Gasket	MP -	2	£16.02 (Exc VAT)				0
12	95920101	Stud 6X10 P1	-	3	£0.54 (Exc VAT)				0
13	101239	Self-Locking Domed Nut 6x12	-	3	£1.60 (Exc VAT)				0
14	106850	Spring Washer 6mm	-	3	POA (Exc VAT)			?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	3	£0.07 (Exc VAT)				0
15	9111161	Dip Stick Tube	-	1	POA (Exc VAT)			?	0
16	9111158	Sump Pan Gasket	MP -	1	£64.37 (Exc VAT)				0
17	95920428	Stud 8x110 P2	-	0	POA (Exc VAT)			?	0
18	103181	Nut 8x1	MP -	0	£2.13 (Exc VAT)				0
19	106852	Spring Washer 8mm	-	0	POA (Exc VAT)			?	0
	Superseded by 127496	Spring Washer 8mm	N	0	£0.05 (Exc VAT)				0
20	95860063	O-Ring viton	MP -	1	£1.51 (Exc VAT)				0
21	101477	Sump Drain Plug	-	1	POA (Exc VAT)			?	0
	Superseded by 103974	Drain Plug M16	MP N	1	£28.34 (Exc VAT)				0
22	95910605	Fibre Washer 16GR2	-	1	£0.39 (Exc VAT)				0
23	22864	Front Cover Gasket	MP -	1	£43.87 (Exc VAT)				0
24	100453	Sender Unit	-	0	£18.55 (Exc VAT)				0
25	94877	Copper Washer	-	1	POA (Exc VAT)			?	0
	Superseded by 10257060	Copper Washer 16 x 22 x 1.5mm	N	1	£0.23 (Exc VAT)				0
26	95920107	Stud 6X18 P1	MP -	20	POA (Exc VAT)			?	0
27	15896221	Nut	MP -	20	POA (Exc VAT)			?	0
28	12601274	Wavy Washer 6mm	-	20	£0.47 (Exc VAT)				0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

Recently Viewed

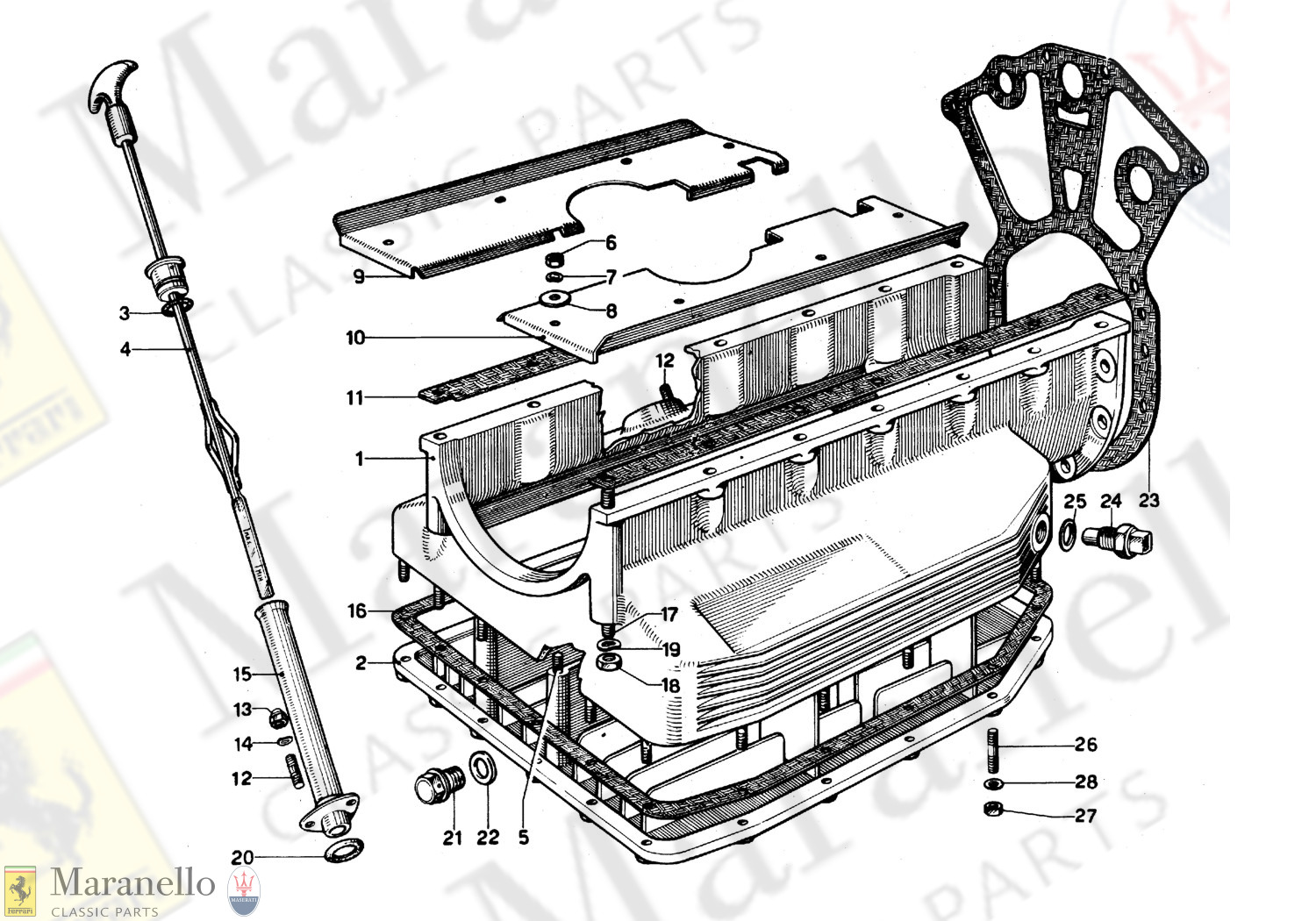

Ferrari / 365 GT 2+2 MK2 from 12811 / 002 - Oil Sump
