No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	108097	LH Cam Belt Casing Complete	-	1	POA (Exc VAT)			?	0
	Superseded by 131828	LH Cover Complete	N	1	£382.79 (Exc VAT)				0
1	108054	LH Cam Belt Casing Col complessivo n. 108097	-	1	POA (Exc VAT)			?	0
2	105927	RH Cam Belt Casing	-	1	POA (Exc VAT)			?	0
3	11059975	Circlip	-	4	£1.03 (Exc VAT)			?	0
	Superseded by 11059976	Clip	N	4	£0.89 (Exc VAT)				0
4	10206320	Woodruff Key	-	2	£1.29 (Exc VAT)				0
5	13540820	Stud	-	1	POA (Exc VAT)			?	0
6	12644421	Washer	-	1	POA (Exc VAT)			?	0
	Superseded by 12644424	Washer 6.15-15 x 1	N	1	£0.05 (Exc VAT)				0
7	12574211	Nyloc Nut M6x1	-	1	POA (Exc VAT)			?	0
	Superseded by 102948	Nyloc Nut M6 x 8	N	1	£0.20 (Exc VAT)				0
8	13546221	Stud Bolt	-	1	POA (Exc VAT)			?	0
	Superseded by 13546224	Stud	N	1	£12.99 (Exc VAT)				0
9	13598021	Self Locking Nut	-	1	POA (Exc VAT)			?	0
	Alternative 102742	Nyloc Nut M10x1.25x10	N	1	£0.34 (Exc VAT)				0
10	107833	Cam Belt In alternativa al n. 102877	MP -	2	£13.07 (Exc VAT)				0
11	110994	Cam Belt Sprocket (Inner Belt Guide) Dopo esaurinienta n. 108033	-	2	POA (Exc VAT)			?	0
	Superseded by 113097	Cam Belt Sprocket (Inner Belt Guide)	MP N	2	£312.70 (Exc VAT)				0
12	110995	Cam Belt Sprocket (Outer Belt Guide) Dopo esaurimento n. 108034	-	2	POA (Exc VAT)			?	0
	Superseded by 113098	Cam Belt Sprocket (Outer Belt Guide)	MP N	2	£312.70 (Exc VAT)				0
13	106606	Cam Gear Retainer Bolt	MP -	4	£69.21 (Exc VAT)				0
14	102777	Lock Tab	MP -	4	£8.57 (Exc VAT)				0
15	106605	Washer	-	4	POA (Exc VAT)			?	0
16	106203	Dowel	-	4	£5.69 (Exc VAT)				0
17	101031	O-Ring	MP -	4	£3.09 (Exc VAT)				0
18	105201	Pulley Assy	-	2	POA (Exc VAT)			?	0
	Alternative 105206	Sealed Bearing Cam Belt Tension	MP N	2	£41.23 (Exc VAT)				0
19	104148	Tensioner Spring	MP -	2	£19.94 (Exc VAT)				0
20	102819	Plunger	-	2	£293.17 (Exc VAT)				0
21	102824	Washer	-	2	£10.50 (Exc VAT)				0
22	16105121	Nyloc Nut	-	2	POA (Exc VAT)			?	0
	Superseded by 148020	Nut M12 x 1.25	N	2	£3.69 (Exc VAT)				0
23	105200	Support	MP -	2	£225.33 (Exc VAT)			?	0
24	105202	Plate	-	2	POA (Exc VAT)			?	0
25	105206	Sealed Bearing Cam Belt Tension	MP -	2	£41.23 (Exc VAT)				0
26	105205	Pin	-	2	£85.17 (Exc VAT)				0
27	104913	Gear Vale fino al motore n. 00133	-	2	POA (Exc VAT)			?	0
28	104914	Pulley Vale fino al motore n. 00133	MP -	2	£378.50 (Exc VAT)				0
29	104916	Oil Seal Vale fino al motore n. 00133	MP -	2	£11.70 (Exc VAT)				0
30	104917	Bearing Open Track Vale fino al motore n. 00133	MP -	2	£7.98 (Exc VAT)				0
31	104918	Ball Bearing D32mm	-	2	£8.10 (Exc VAT)				0
32	104919	Ring Lock Nut	-	2	£4.59 (Exc VAT)				0
33	104915	Washer	-	2	POA (Exc VAT)			?	0
34	106853	Spring Washer 10mm	-	3	POA (Exc VAT)			?	0
	Superseded by 12601474	Wavy Washer 10mm	N	3	£0.03 (Exc VAT)				0
35	111668	Bolt	MP -	3	£24.89 (Exc VAT)				0
36	12638601	Washer	-	3	£0.47 (Exc VAT)				0
37	112017	Drive Gear (36 Teeth) Vale dal motore n. 00134	MP -	2	£1,020.84 (Exc VAT)				0
38	112018	Driving Pulley Vale dal motore n. 00134	MP -	2	POA (Exc VAT)			?	0
39	112020	Seal Vale dal motore n. 00134	-	2	POA (Exc VAT)			?	0
	Superseded by 117276	Oil Seal	MP N	2	£18.72 (Exc VAT)				0
40	112019	Bearing Dia 40mm Vale dal motore n. 00134	-	2	POA (Exc VAT)			?	0
	Superseded by 175260	Bearing (Sealed)	N	2	£29.25 (Exc VAT)				0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

Recently Viewed

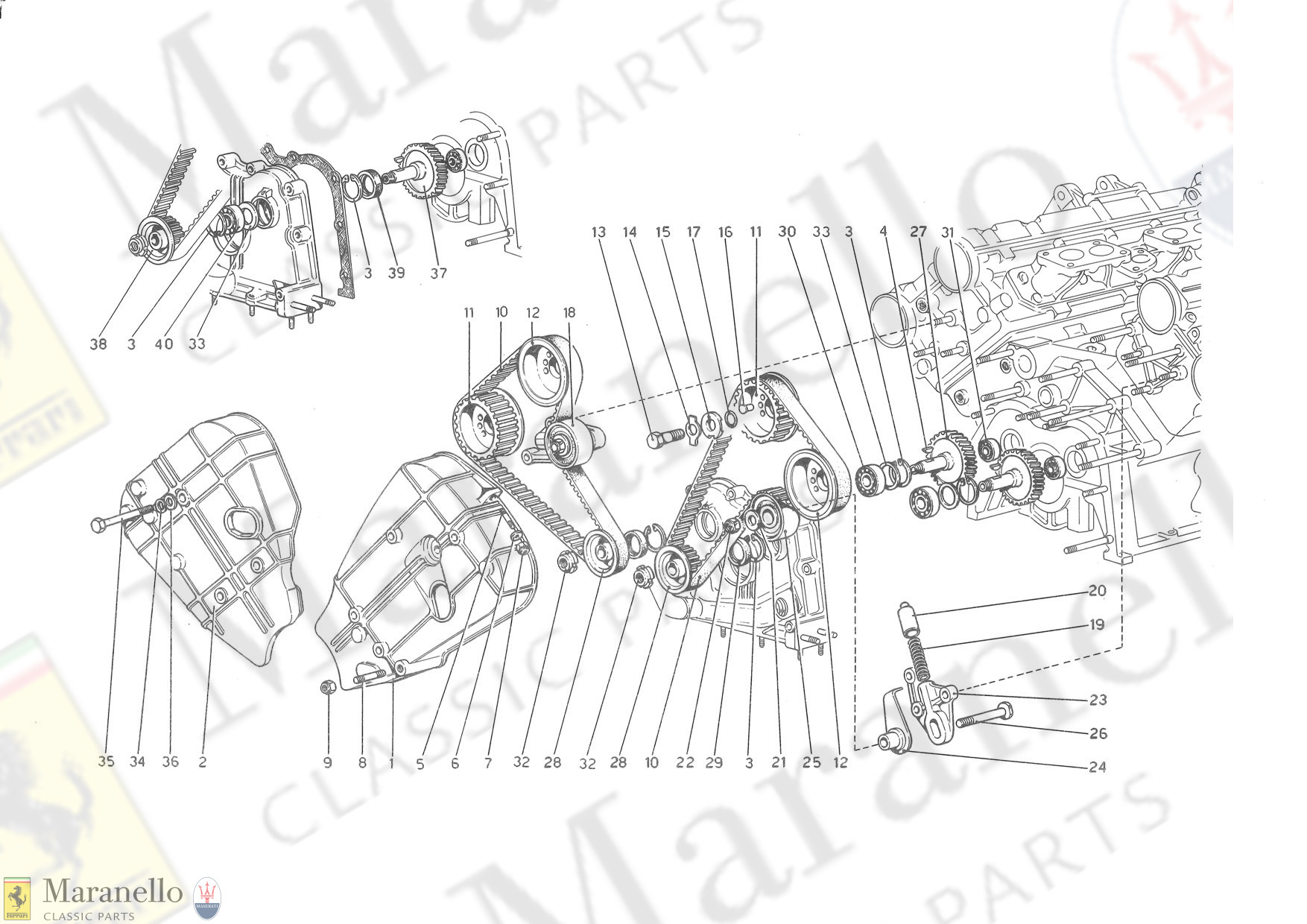

Ferrari / 308 GTB/GTS USA / 008 - Timing System - Controls
