Ferrari / 308 GT4 Dino 1976 / 014 - Blow-By System

Reset

< Prev Next >

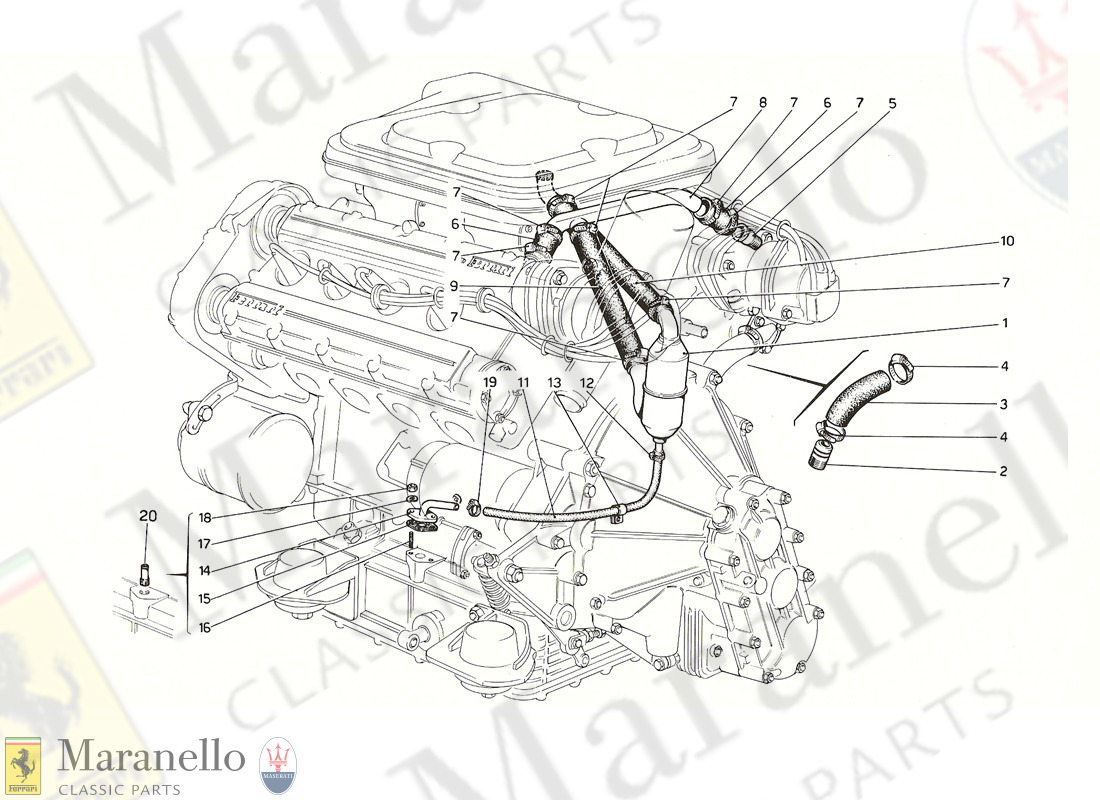

014 - Blow-By System

001 - Engine - Gearbox And Supports

002 - Crankcase

003 - Crankshaft - Connecting Rods And Pistons

004 - Flywheel And Clutch Housing Spacer

005 - Cylinder Head (Right)

006 - Cylinder Head (Left)

007 - Timing System - Tappets

008 - Timing System - Controls

009 - Fuel System

010 - Carburettors And Air Cleaner

011 - Weber 40 DCNF Carbs (2 Distributors)

11A - Weber 40 DCNF Carbs (1 Distributor)

012 - Throttle Control (2 Distributors)

12A - Throttle Control (1 Distributor)

013 - Exhaust System

014 - Blow-By System

015 - Lubrication System

016 - Cooling System

017 - Water Pump And Pipings

018 - Clutch Operating Control

019 - Clutch Unit And Cover

020 - Gearbox Transmission

021 - Gearbox - Differential Housing And Oil Sump

022 - Main Shaft Gears

023 - Lay Shaft Gears

024 - Inside Gearbox Controls

025 - Outside Gearbox Controls (Up To No. 10114 Gs - 10100 Gd - 10358 U.S. Version)

25A - Outside Gearbox Controls (From No. 11324 Gs - 11300 Gd - 10360 U.S. Version)

026 - Differential And Axle Shaft (Up To Gearbox No. 692)

26A - Differential And Axle Shaft (From Gearbox No. 693)

027 - Pedal Board - Brake And Clutch Controls

028 - Brake System (Up To No. 11482 GS-12... GD-11462 USA)

28A - Brake System (From No. 11506 GS-12... GD-11994 USA)

029 - Calipers For Front And Rear Brakes

030 - Hand - Brake Control

031 - Steering Box And Linkage

032 - Steering Column

033 - Front Suspension - Shock Absorber And Brake Discs

034 - Front Suspension - Wishbones

035 - Rear Suspension - Shock Absorber And Brake Discs

036 - Rear Suspension - Wishbones

038 - Engine Ignition (2 Distributors)

38A - Engine Ignition (1 Distributor)

039 - Electric Generating System

040 - Air Conditioning System (Up To N. 12162)

40A - Air Conditioning System (From No. 12180)

041 - Air Conditioning Compressor And Controls

042 - Tool - Kit

043 - Throttle Control (R.H.D Version)

044 - Pedal Board - Clutch Control (R.H.D Version)

045 - Brake Hydraulic System (R.H.D Version)

046 - Front Air Pump And Pipings (U.S. 1976 Version)

047 - Rear Air Pump And Pipings (U.S. And Australian Versions 1976)

048 - Air Pump Guards (U.S. And Australian Versions 1976)

049 - Fast Idle Device (U.S. And Australian Versions 1976)

050 - Weber 40 DCNF Carburettors (U.S. 1976 Version)

50A - Weber 40 DCNF Carburettors (Australian 1976 Version)

051 - Fuel System (Up To No. 11462 - U.S. 1976 Version)

51A - Fuel System (From No.11994 - U.S. 1976 Version)

052 - Exhaust System (U.S. And Australian Versions 1976)

053 - Engine Ignition (U.S. And Australian Versions 1976)

054 - Water Radiator - Gear - Lever Housing (U.S. 1976 Version)

101 - Body Shell

102 - Body Shell - Outer Elements

103 - Body Shell - Inner Elements

104 - Body Shell - Inner Elements (U.S.Version)

105 - Body Shell - Inner Elements

106 - Front Compartment Lid

107 - Engine Compartment Lid And Carpeting

108 - Luggage Compartment Lid

111 - Bumpers And Mouldings

112 - Bumpers (U.S. Version)

112A - Bumpers (US Version)

114 - Interior Trim And Accessories

115 - Interior Trim And Accessories

117 - Carpeting

118 - Instruments And Accessories

119 - Seat Belts

120 - Electrical System

121 - Fuses And Relays

122 - Headlights Lifting Device

124 - Windshield Wiper, Washer And Horn

125 - Heating System

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	106330	Oil Vapour Box	-	1	POA (Exc VAT)			?	0
2	102705	Union	-	1	POA (Exc VAT)			?	0
3	106981	Hose	MP -	1	£73.46 (Exc VAT)				0
4	10169290	Hose Clip 26-30	-	2	£9.71 (Exc VAT)				0
5	106883	Union	-	2	£45.85 (Exc VAT)				0
6	106984	Sleeve Upto N 08022	-	2	POA (Exc VAT)			?	0
6	106335	Oil Breather Hose From N 08024	-	2	POA (Exc VAT)			?	0
	Superseded by 116783	Oil Breather Hose	MP N	2	£34.56 (Exc VAT)				0
7	10169090	Hose Clip 23-27	-	8	POA (Exc VAT)			?	0
	Superseded by 13000490	Screw Collar 20-32mm	N	8	£0.67 (Exc VAT)				0
8	106985	Pipe Upto N 08022	-	1	POA (Exc VAT)			?	0
8	106982	Pipe From N 08024	MP -	1	POA (Exc VAT)			?	0
9	106336	Hose	-	1	POA (Exc VAT)			?	0
10	106337	Hose	-	1	POA (Exc VAT)			?	0
11	106338	Hose Upto N 09562	-	1	POA (Exc VAT)			?	0
	Alternative 108099	Hose	MP N	1	£30.39 (Exc VAT)				0
11	108099	Hose From N 09564	MP -	1	£30.39 (Exc VAT)				0
12	10168790	Clip	-	1	POA (Exc VAT)			?	0
13	10450490	Bracket P Clip16mm	-	1	£0.45 (Exc VAT)				0
14	104210	Oil Pipe Pick Up Upto N 09562	-	1	£85.20 (Exc VAT)				0
15	104211	Gasket Upto N 09562	-	1	£0.86 (Exc VAT)				0
16	11500121	Threaded Stud Upto N 09562	-	2	POA (Exc VAT)			?	0
17	10516471	Washer Upto N 09562	-	2	POA (Exc VAT)			?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	2	£0.07 (Exc VAT)				0
18	15896211	Nut M6 x 5 Upto N 09562	-	2	£0.06 (Exc VAT)				0
19	10168890	Clip	-	1	POA (Exc VAT)			?	0
20	103870	Union From N 09564	-	1	POA (Exc VAT)			?	0
