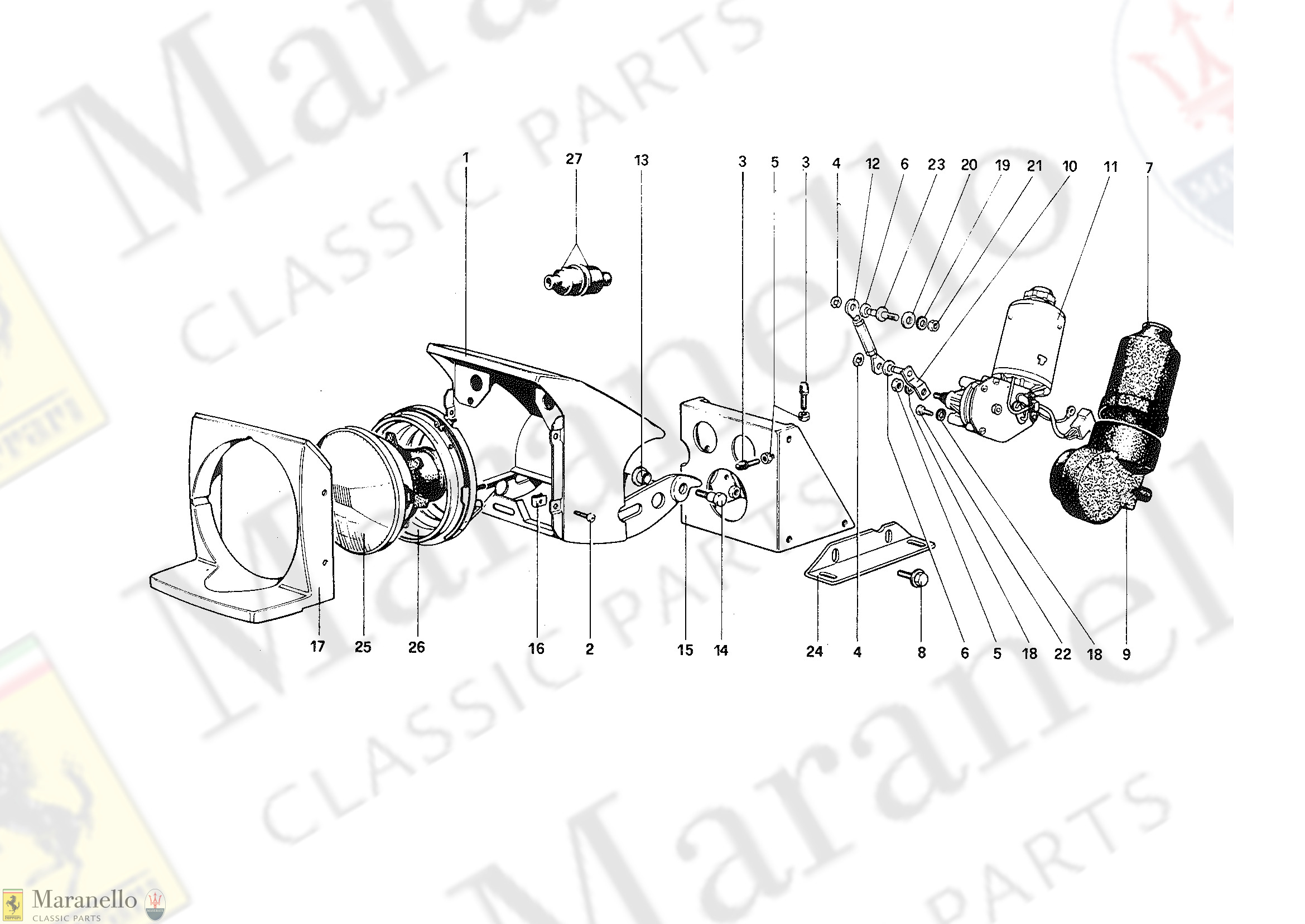

116 - Headlights Lifting Device

117 - Windshield Wiper Washer and Horn

118 - Heating System

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	60570600	RH Head Lamp Housing	MP -	1	£1,400.32 (Exc VAT)		0
1	60570700	LH Head Lamp Housing	MP -	1	POA (Exc VAT)	?	0
	Alternative 60333804	LH Head Lamp Housing (Fibreglass)	N	1	£427.25 (Exc VAT)		0
2	60644600	Black Self Tapping Screw	-	8	£1.37 (Exc VAT)		0
3	50087709	Bump Stop	MP -	6	£9.37 (Exc VAT)		0
4	11087976	Circlip	-	4	POA (Exc VAT)	?	0
	Superseded by 11087974	Circlip	N	4	£0.15 (Exc VAT)		0
5	15896211	Nut M6 x 5	-	8	£0.06 (Exc VAT)		0
6	30152607	Washer	-	4	POA (Exc VAT)	?	0
	Superseded by 40344806	Shims	N	4	£1.05 (Exc VAT)		0
7	60331402	Rubber Boot	-	2	£74.30 (Exc VAT)		0
8	13842471	Screw	-	16	POA (Exc VAT)	?	0
	Superseded by 13842411	Self locking flange Bolt	N	16	£0.51 (Exc VAT)		0
9	60331204	RH Head Lamp Motor Rubber Cover	-	1	POA (Exc VAT)	?	0
9	60331303	LH Head Lamp Motor Rubber Cover	-	1	POA (Exc VAT)	?	0
10	40213902	Pivot until 31-3-84	-	2	£23.88 (Exc VAT)		0
11	60727500	RH Head Lamp Lift Motor	-	1	POA (Exc VAT)	?	0
11	60727600	LH Head Lamp Lift Motor	-	1	POA (Exc VAT)	?	0
12	60172400	Head Lamp Adjuster until 31-3-84	-	2	£195.00 (Exc VAT)		0
12	61326200	Head Lamp Adjuster from 1-4-84	MP -	2	POA (Exc VAT)	?	0
	Alternative 61268600/A	Head Lamp Connecting Rod	N	2	£82.07 (Exc VAT)		0
13	50070507	Bush	MP -	4	£5.08 (Exc VAT)		0
14	50070606	Pin	MP -	4	£12.87 (Exc VAT)		0
15	60648000	RH Head Lamp Motor Support Bracket	MP -	1	£78.68 (Exc VAT)		0
15	60648100	LH Head Lamp Motor Support Bracket	-	1	£85.96 (Exc VAT)		0
16	40136707	Screw Clip	-	8	£1.16 (Exc VAT)		0
17	60570800	RH Front Head Lamp Housing	MP - £££	1	£1,219.08 (Exc VAT)		0
17	60570900	LH Front Head Lamp Housing	MP - £££	1	£1,219.08 (Exc VAT)		0
18	12605371	Washer	-	8	POA (Exc VAT)	?	0
	Superseded by 12601274	Wavy Washer 6mm	N	8	£0.45 (Exc VAT)		0
19	10615770	Washer	-	2	POA (Exc VAT)	?	0
	Superseded by 10615774	Washer	N	2	£0.13 (Exc VAT)		0
20	12638601	Washer	-	2	£0.45 (Exc VAT)		0
21	12164721	Nut	-	2	POA (Exc VAT)	?	0
	Superseded by 133988	Plain Nut M10 x 1.25 x 8	N	2	£0.16 (Exc VAT)		0
22	10902121	Bolt	MP -	6	POA (Exc VAT)	?	0
	Superseded by 10902124	Screw M6 x 14	N	6	£0.05 (Exc VAT)		0
23	60098803	Pin until 31-3-84	-	2	£17.65 (Exc VAT)		0
23	61325900	Pin from 1-4-84	-	2	£21.09 (Exc VAT)		0
24	60581800	RH Bracket	-	2	POA (Exc VAT)	?	0
	Alternative 60238201	RH Bracket	N	2	£23.16 (Exc VAT)		0
24	60581900	LH Bracket	-	2	£11.09 (Exc VAT)		0
25	61610400	Sealed-Beam	-	2	£223.31 (Exc VAT)	?	0
26	60154804	Head Lamp Bowl	-	2	POA (Exc VAT)	?	0
27	60645100	Cover	-	4	£1.12 (Exc VAT)		0
