Maserati / 3200 GT / C 027 - Alternator And Support

Reset

< Prev Next >

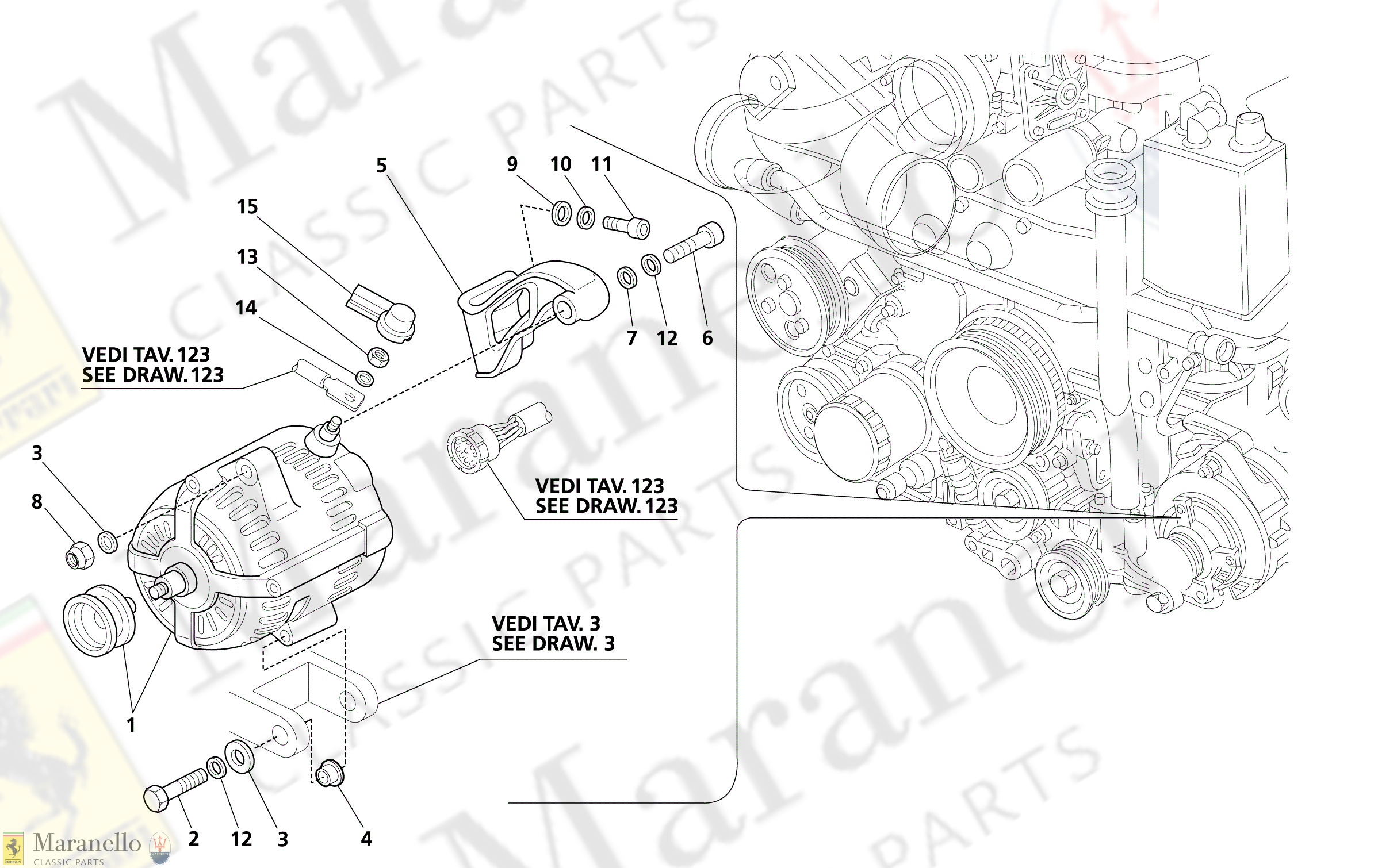

C 027 - Alternator And Support

C 001 - Gasket And Seals For Head Overhaul

C 002 - Gasket And Oil Seals For Block Overhaul

C 003 - Engine Block And Oil Sump

C 004 - Fastenings And Block Accessories

C 005 - Crankshaft, Pistons, Connecting Rods And Flywheel

C 006 - Cylinder Head, Rh Frame

C 007 - Cylinder Head, Lh Frame

C 009 - Timing Control

C 010 - Poly-V Belt System

C 011 - Oil Pump And Water Pump

C 012 - ENGINE OIL COOLING -Valid for manual transmission-

C 013 - ENGINE OIL COOLING -Valid for automatic transmission-

C 014 - Turboblowers And Exhaust Manifolds

C 015 - Turboblowers Cooling Pipes

C 016 - Turboblowers Lubrication

C 017 - Boost Control System

C 018 - Pop-Off Valve System

C 019 - Air Intake Manifold And Injection System

C 020 - Air Filters

C 021 - Oil Vapour Recovery

C 022 - Heat Exchangers - Pipes

C 023 - Ignition System

C 024 - Ignition System: Sensors

C 025 - SECONDARY AIR SYSTEM -Valid for GS from AssNr4446 not for AssNr 4491,4499 and 4500 -Valid for GD from AssNr4469 not for AssNr4451 and 4454-Not for GOL,BRA,J and AUS-

C 026 - PUMP AND VACUUM TANK -Valid for GS from AssNr4446 not for AssNr 4491,4499 and 4500 -Valid for GD from AssNr4469 not for AssNr4451 and 4454-Not for GOL,BRA,J and AUS-

C 027 - Alternator And Support

C 028 - Starting Motor

C 029 - Engine Cooling Pipes And Thermostat

C 030 - Radiator And Cooling Fans

C 031 - AIR CONDITIONING SYSTEM -Valid till Ass Nr 3675 for GS and till Ass Nr 4061 for GD-

C 032 - AIR CONDITIONING SYSTEM -Valid from Ass Nr 3676 for GS and from Ass Nr 4062 for GD-

C 033 - Air Compressor And Bracket

C 034 - FUEL PIPES -Valid for GS till AssNr4445 and for AssNr4491,4499 and 4500 -Valid for GD till AssNr4468 and for AssNr4451 and 4454-

C 035 - FUEL PIPES -Valid for GS from AssNr4446 not for AssNr 4491,4499 and 4500 -Valid for GD from AssNr4469 not for AssNr4451 and 4454-

C 036 - EVAPORATION VAPOURS RECOVERY -Valid for GS till AssNr4445 and for AssNr4491,4499 and 4500 -Valid for GD till AssNr4468 and for AssNr4451 and 4454-

C 037 - EVAPORATION VAPOURS RECOVERY SYSTEM -Valid for GS from AssNr4446 not for AssNr 4491,4499 and 4500 -Valid for GD from AssNr4469 not for AssNr4451 and 4454-Not for GOL,BRA,J and AUS-

C 038 - Fuel Tank

C 039 - Front Exhaust System

C 040 - Rear Exhaust System

C 041 - CLUTCH -Valid for MANUAL TRANSMISSION-

C 042 - Getrag Mt 6 Speed

C 043 - Getrag Transmission - 6 Speed -Outside Controls

C 044 - Automatic Transmission

C 045 - Automatic Transmission - Outside Controls

C 046 - Automatic Transmission - Internal Parts

C 047 - Propeller Shaft And Carrier

C 048 - Differential - External Parts

C 049 - Differential - Internal Parts

C 050 - Steering Wheel With Airbag

C 051 - Steering Column

C 052 - Front Subframe: Steering Box Fastening

C 053 - Power Steering Pump

C 054 - Power Steering System

C 055 - Front Suspension

C 056 - Front Stabilizer Bar

C 057 - Front Shock Absorber

C 058 - Rear Under-Chassis And Differential Fastening

C 059 - Rear Suspension

C 060 - Anti-Roll Bar

C 061 - Rear Shock Absorber

C 062 - Hubs And Front Brakes With Abs

C 063 - Hubs, Rear Brakes With Abs

C 064 - Handbrake Control

C 065 - Clutch And Accelerator Pedals

C 066 - Brake Pedal And Pedal Support

C 067 - Abs System: Hydraulic Brake Lines

C 068 - Abs System: Control Unit - Brake Booster

C 069 - Brake Servo Air Tube

C 070 - Wheel Rims And Accessories

C 100 - Body Sheel: Front Outer Panels

C 101 - Body Sheel: Rear Outer Panels

C 102 - Body Shell: Front Panel And Inner Wheelarches

C 103 - Body Shell: Rear Inner Structures

C 104 - Body Shell: Loading Bed Frame

C 105 - Bonnet: Hinges And Bonnet Release

C 106 - Bonnet And Engine Compartment Covers

C 107 - Wheelarch Guards

C 108 - Boot Lids: Hinges, Boot Lid Release

C 109 - Boot: Carpets

C 111 - Doors: Inner Controls

C 112 - Doors: Windows And Regulators

C 113 - Fixed Windows

C 114 - External Finishing - Badges

C 115 - External Seals

C 116 - Front Bumper

C 117 - Air Ducts

C 118 - Rear Bumper

C 120 - Windscreen Washer

C 121 - Headlights

C 122 - Rear Lights

C 123 - Electrical System: Engine Harness

C 124 - Electrical System: Driver's Door And Front Ceiling Light Harness

C 125 - Electrical System: Engine Compartment Harness

C 126 - Electrical System: Airbag And Abs Harness

C 127 - Electrical System: Boot And Rh Side Harness

C 128 - Electrical System: Boot Harness

C 129 - Electrical System: Dashboard Harness

C 130 - Electrical System: Car Control Units

C 131 - Electrical System: Dashboard Control Units

C 132 - Sound System

C 133 - Antitheft System

C 134 - Immobilizer Kit

C 135 - Instruments

C 136 - Switches And Steering Lock

C 137 - Dashboard

C 138 - Console

C 139 - Inner Trims: Roof

C 140 - Rear Inner Trims And Pillars

C 141 - Inner Trims: Door Panels

C 142 - Inner Trims: Parcel Shelf

C 143 - Front Seats: Standard Version

C 144 - Front Seats: Heating And Memories Version

C 145 - Front Seats: Inner Parts

C 146 - Rear Seat

C 147 - Seat Belts

C 148 - Rear View Mirrors

C 149 - Passenger Compartment Carpets

C 150 - Insulation

C 151 - Passenger Compartment Ventilation

C 152 - Automatic Air Conditioner Assy

C 153 - Automatic Air Conditioner Assy

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	578083500	Alternator	-	1	£536.00 (Exc VAT)			?	0
2	11108221	Bolt 10X100	-	1	£2.25 (Exc VAT)			?	0
3	452008901	Washer	-	2	£2.60 (Exc VAT)			?	0
4	578080100	Bush	-	1	£61.50 (Exc VAT)			?	0
5	578083700	Bracket	-	1	£147.00 (Exc VAT)			?	0
6	14420821	Screw	-	1	£1.60 (Exc VAT)			?	0
7	14499501	Washer	-	1	£1.30 (Exc VAT)			?	0
8	12577221	Nut	-	2	£1.60 (Exc VAT)			?	0
9	312225445	Flat Washer M8x18x2	-	2	£0.95 (Exc VAT)			?	0
10	12604470	Spring Washer	-	2	£1.05 (Exc VAT)			?	0
11	311020320	Screw	-	2	£1.60 (Exc VAT)			?	0
12	134700105	Washer	-	1	£1.30 (Exc VAT)			?	0
13	16102414	Nut	-	1	£1.30 (Exc VAT)			?	0
14	12601374	Washer	-	1	£1.05 (Exc VAT)				0
15	383000310	Alternator Cable Cap	-	1	£6.15 (Exc VAT)			?	0
