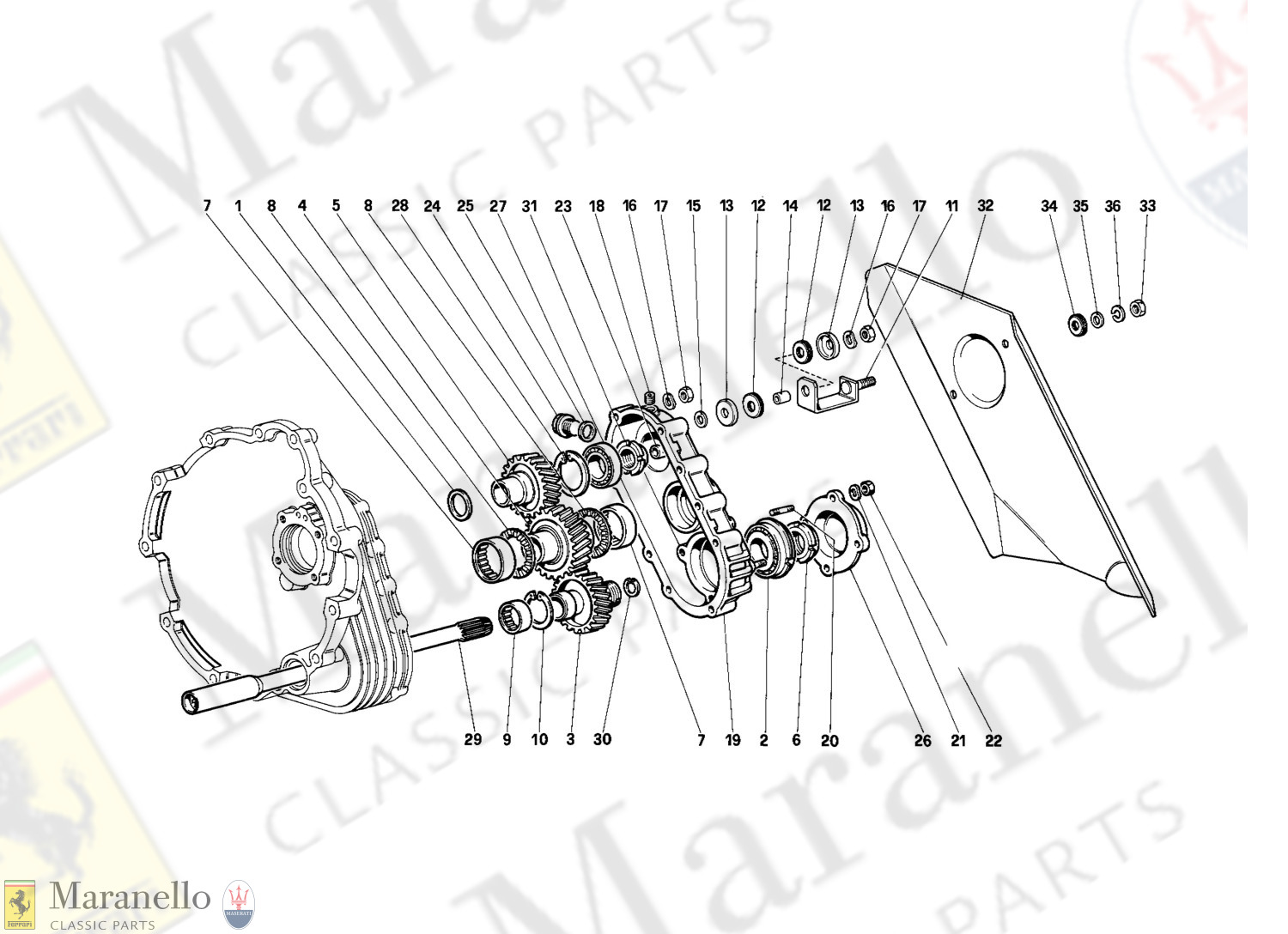

Ferrari / Testarossa TR 85 / 029 - Gear Box Transmission

Reset

< Prev Next >

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Cylinder Head (Right)

004 - Cylinder Head (Left)

005 - Timing System - Controls

006 - Timing System - Valves

007 - Fuel Pumps And Pipes

008 - Fuel Tanks (Not For U.S. And Sa)

009 - Fuel Tanks (For U.S. And Sa)

010 - Anti-Evaporative Emission Control System (For U.S. And Sa)

011 - Fuel Distributors Lines (K-Jetronic System)

012 - Fuel Distributors Lines (Ke-Jetronic System)

013 - Fuel Injection System - Valves And Lines

014 - Secondary Air Pump And Lines (For U.S. Version)

015 - Air Injection And Lines (For Ch And Sa)

016 - Air Intake Manifolds

017 - Air Intake

018 - Throttle Control

019 - Exhaust System (Not For U.S.- Sa And Ch87)

020 - Exhaust System (For U.S. - Sa And Ch87)

021 - Blow - By System

022 - Lubrication

023 - Lubrication - Pumps And Oil Filter

024 - Engine Cooling

025 - Cooling System

026 - Water Pump

027 - Clutch And Controls

028 - Clutch Release Control

029 - Gear Box Transmission

030 - Gear Box - Mountings And Covers

031 - Gear Box

032 - Main Shaft Gears

033 - Lay Shaft Gears

034 - Gear Box Controls

035 - Differential And Axle Shafts

036 - Brake Hydraulic System

037 - Brake System

038 - Front And Rear Brake Calipers

039 - Hand-Brake Control

040 - Steering Box And Linkage

041 - Steering Column

042 - Front Suspension - Shock Absorber And Brake Disc

043 - Front Suspension - Wishbones

044 - Rear Suspension - Brake Disc

045 - Rear Suspension - Wishbones And Shock Absorbers

046 - Wheels

047 - Engine Ignition

048 - Current Generation

049 - Air Conditioning System

050 - Tool Kit

051 - Clutch Release Control (Variants For RHD Versions)

052 - Brake Hydraulic System - Accelerator Control (Variants For RHD)

101 - Body - External Components

102 - Body - External Components

103 - Body - Internal Components

104 - Rear Frame

105 - External Finishing

106 - Bumpers

107 - Luggage Compartment Carpet And Insulation Panels

108 - Front Hood

109 - Rear Hood

110 - Door

111 - Door - Locking Device

112 - Door - Power Window

113 - Windows

114 - Accessories And Trims

115 - Seats And Carpets

116 - Dashboard (For U.S. Version My 1987)

117 - Central Tunnel (For U.S. Version My 1987)

118 - Instruments And Passenger Compartment Accessories (Not For U.S. Version)

119 - Front Headlight Lifting Device

120 - Lamps

121 - Electric System

122 - Valves And Electromagnetic Switches

123 - Electric Controls For Ke - Jetronic And Exhaust

124 - Windshield Wiper, Washer And Horns

125 - Heater Unit

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	124061	Spacer	-	1	£3.78 (Exc VAT)		0
2	116063	Bearing After exhaustion use PN 126223	-	1	POA (Exc VAT)	?	0
	Superseded by 126223	Sealed Ball Bearing	MP N	1	£496.51 (Exc VAT)		0
3	125264	Driven Gear Not For CH	-	1	£756.92 (Exc VAT)		0
3	124502	Driven Gear For CH	-		£1,571.27 (Exc VAT)		0
4	125263	Intermediate Gear Not For CH	-	1	£577.62 (Exc VAT)		0
4	124501	Intermediate Gear For CH	-		POA (Exc VAT)	?	0
5	125262	Drive Gear Not For CH	-	1	POA (Exc VAT)	?	0
5	124500	Drive Gear For CH	-		POA (Exc VAT)	?	0
6	100729	Lock Nut	-	1	POA (Exc VAT)	?	0
	Superseded by 153068	Gearbox Locknut	MP N	1	£49.25 (Exc VAT)		0
7	104840	Roller Bearing	MP -	2	£43.19 (Exc VAT)		0
8	104841	Needle Thrust Bearing	MP -	2	£7.30 (Exc VAT)		0
9	103095	Needle Roller Bearing	MP -	1	£37.75 (Exc VAT)		0
10	103096	Circlip	-	1	POA (Exc VAT)	?	0
11	124800	Bracket For plate No, 124799	-	3	POA (Exc VAT)	?	0
11	128500	Bracket For plate No. 128499	-	3	POA (Exc VAT)	?	0
12	107978	Pad D. 12 - 25 x 7	-	6	£7.92 (Exc VAT)		0
13	107979	Cap	-	6	£8.82 (Exc VAT)	?	0
14	107980	Spacer D. 9 - 12 x 14	-	3	£4.99 (Exc VAT)		0
15	124801	Spacer	-	3	POA (Exc VAT)	?	0
16	12601371	Washer	-	10	POA (Exc VAT)	?	0
	Superseded by 12601374	Wavy Washer 8mm	N	10	£0.02 (Exc VAT)		0
17	16100821	Plain Nut 8mm x 6.25mm Pitch 1.25	-	10	POA (Exc VAT)	?	0
	Superseded by 16102314	Nut M8 x 5	N	10	£0.06 (Exc VAT)		0
18	10269450	Plug	-	1	POA (Exc VAT)	?	0
19	113114	Clutch Cover Housing Complete	-	1	POA (Exc VAT)	?	0
20	13543321	Short Stud	-	4	POA (Exc VAT)	?	0
	Superseded by 13543324	Stud M8 x 16 - Shank 20mm	N	4	£4.74 (Exc VAT)		0
21	12601371	Washer	-	4	POA (Exc VAT)	?	0
22	16100821	Plain Nut 8mm x 6.25mm Pitch 1.25	-	4	POA (Exc VAT)	?	0
23	109336	Tube	-	1	£59.26 (Exc VAT)		0
24	10275001	Plug	-	1	£2.37 (Exc VAT)	?	0
	Superseded by 10275011	Drain Plug M22 x 1.5	N	1	£1.45 (Exc VAT)		0
25	10263460	Gasket	-	1	£0.29 (Exc VAT)		0
26	102808	Cover	-	1	POA (Exc VAT)	?	0
27	112981	Roller Bearing	MP -	1	£195.93 (Exc VAT)		0
28	11061076	Circlip D.62	-	1	£1.24 (Exc VAT)		0
29	109343	Shaft	-	1	POA (Exc VAT)	?	0
	Superseded by 151651	Transmission Shaft	MP N	1	£1,389.44 (Exc VAT)		0
30	11058275	Circlip	-	1	£0.07 (Exc VAT)		0
31	125500	Lock Nut	-	1	POA (Exc VAT)	?	0
	Superseded by 153066	Gearbox Locknut	MP N	1	£44.97 (Exc VAT)		0
32	124799	Shield Not for US-CH-SA, until exhausted	-	1	POA (Exc VAT)	?	0
32	128499	Transmission Shield For US - CH - SA, after exhaustion P.N	-	1	POA (Exc VAT)	?	0
33	15896211	Nut M6 x 5	-	3	£0.06 (Exc VAT)		0
34	105924	Gasket	-	3	POA (Exc VAT)	?	0
	Superseded by 146712	Gasket	MP N	3	£0.68 (Exc VAT)		0
35	12643701	Flat Washer	-	3	£0.05 (Exc VAT)		0
36	106850	Spring Washer 6mm	-	3	POA (Exc VAT)	?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	3	£0.07 (Exc VAT)		0
