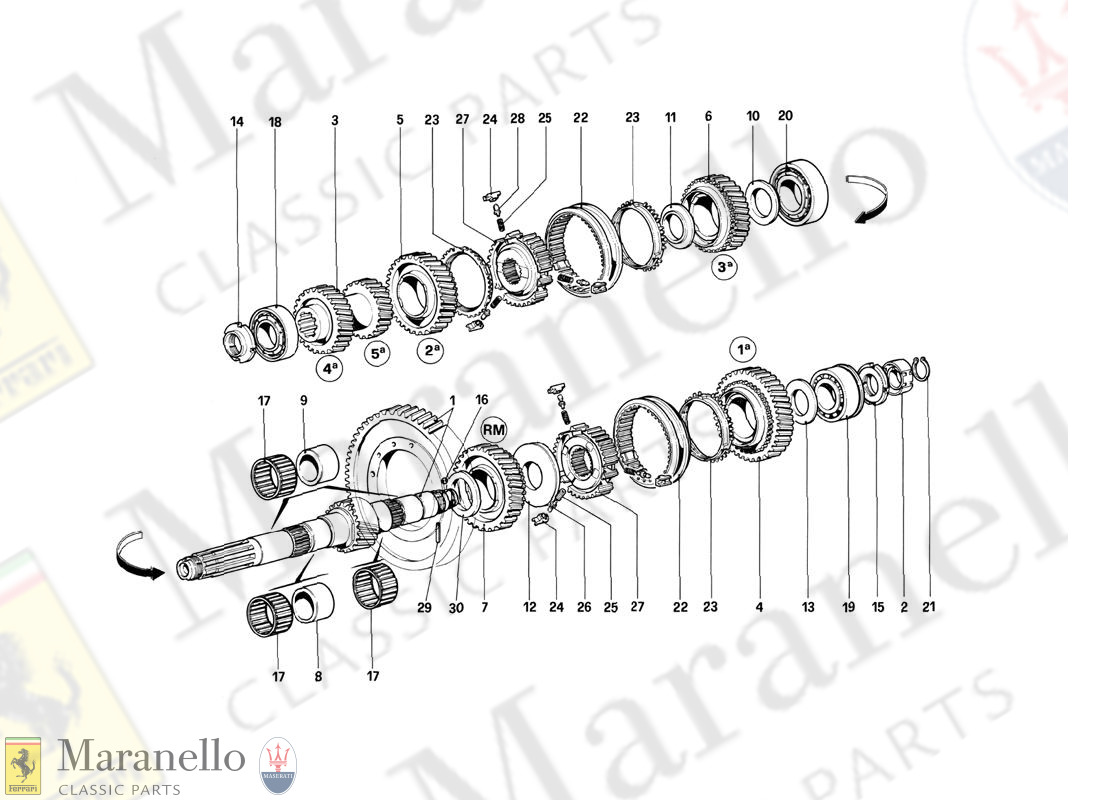

Ferrari / Mondial QV Coupe & Cabriolet / 024 - Lay Shaft Gears

Reset

< Prev Next >

001 - Engine - Gearbox And Supports

002 - Crankcase

003 - Crankshaft - Connecting Rods And Pistons

004 - Flywheel And Clutch Housing Spacer

005 - Cylinder Head (Right)

006 - Cylinder Head (Left)

007 - Timing System - Tappets

008 - Timing System - Controls

009 - Fuel Pump And Pipes (Quattrovalvole)

010 - Fuel Pump And Pipes (Cabriolet)

011 - Fuel Injection System - Fuel Distributors, Line

012 - Air Intake And Manifolds

013 - Throttle Housing And Linkage

014 - Exhaust System

015 - Blow - By System

016 - Lubrication System

017 - Cooling System

018 - Water Pump And Piping

019 - Clutch And Controls

020 - Clutch Release Control

021 - Gearbox Transmission

022 - Gearbox - Differential Housing And Oil Sump

023 - Main Shaft Gears

024 - Lay Shaft Gears

025 - Inside Gearbox Controls

026 - Outside Gearbox Controls

027 - Differential And Axle Shafts

028 - Brake Hydraulic System

029 - Brake System (Valid Only For Lhd Up To Chassis No. 43011)

030 - Brake System (Valid For RHD - For Lhd From Chassis No. 43013)

031 - Calipers For Front And Rear Brakes (Valid Only For Lhd Up To Chassis No. 43011)

032 - Calipers For Front And Rear Brakes (Valid For RHD-For Lhd From Chassis No. 43013)

033 - Hand - Brake Control (Valid Only For Lhd Up To Chassis No. 43011)

034 - Hand - Brake Control (Valid For RHD - For Lhd From Chassis No. 43013)

035 - Steering Box And Linkage

036 - Steering Column

037 - Front Suspension - Shock Absorber And Brake Disc

038 - Front Suspension - Wishbones

039 - Rear Suspension - Shock Absorber And Brake Disc

040 - Rear Suspension - Wishbones

041 - Wheels

042 - Engine Ignition - (Quattrovalvole)

043 - Engine Ignition - (Cabriolet)

044 - Electric Generating System - (Engine With Single Belt)

045 - Electric Generating System - (Engine With 2 Belts)

046 - Air Conditioning Compressor And Controls

047 - Tool Kit

048 - Pedal Board - Clutch Control (Variants For RHD)

049 - Throttle Control And Brake Hydraulic System (Variants For RHD)

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements

103 - Body Shell - Inner Elements - Quattrovalvole

104 - Body Shell - Inner Elements - Cabriolet

105 - Luggage And Passenger Compartment Insulation

106 - Quattrovalvole Luggage And Passenger Compartment

107 - Front Compartment Lid

108 - Engine Compartment Lid And Carpeting

109 - Luggage Compartment Lid

110 - Doors - Quattrovalvole

111 - Doors - Cabriolet

112 - Bumpers, Lights And Front Glasses

113 - Bumpers, Lights And Rear Glasses

114 - Seats - Quattrovalvole

115 - Seats - Cabriolet

116 - Roof, Tunnel And Safety Belts

117 - Instrument Panel

118 - Instruments

119 - Lights Lifting Device And Headlights

120 - Electrical Board

121 - Windshield Wiper - Washer And Horn

122 - Heating System

123 - Electrical System

124 - Sun Roof - Quattrovalvole

125 - Top - Cabriolet

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	119725	Crown Wheel & Pinion Ground Complete CH excluded	-	1	£5,887.31 (Exc VAT)		0
1	119706	Layshaft With assembly no. 119725	-	1	POA (Exc VAT)	?	0
1	119748	Crown Wheel & Pinion Complete CH only	-	1	POA (Exc VAT)	?	0
1	119741	Layshaft With assembly no. 119748	-	1	POA (Exc VAT)	?	0
2	116352	Speedo Drive	-	1	£23.31 (Exc VAT)		0
3	119707	4th & 5th Gear Ground CH excluded	-	1	POA (Exc VAT)	?	0
	Superseded by 129836	5th Gear	N	1	£740.76 (Exc VAT)		0
3	119742	4th & 5th Gear Ground CH only	-	1	£683.25 (Exc VAT)		0
4	119715	1st Gear Ground CH excluded	-	1	£1,173.86 (Exc VAT)		0
4	119745	1st Gear Ground CH only	-	1	£524.36 (Exc VAT)		0
5	119716	2nd Gear Ground	-	1	POA (Exc VAT)	?	0
6	119717	3rd Gear Ground	-	1	POA (Exc VAT)	?	0
7	119720	RM Gear Ground	-	1	POA (Exc VAT)	?	0
	Alternative 119720/4	Gear	N	1	£916.18 (Exc VAT)		0
8	113083	Roller Bush	-	1	£47.03 (Exc VAT)		0
9	113084	Roller Bush	-	2	£47.03 (Exc VAT)		0
10	104245	Spacer	-	1	£59.78 (Exc VAT)		0
11	104246	Spacer	-	1	£66.54 (Exc VAT)		0
12	104247	Spacer	-	1	£93.67 (Exc VAT)		0
13	104248	Spacer	-	1	£54.53 (Exc VAT)		0
14	104252	RH Thread Locknut	MP -	1	£77.96 (Exc VAT)		0
15	104253	LH Thread Locknut	MP -	1	£76.63 (Exc VAT)		0
16	101611	Ball Bearing	MP -	1	£0.48 (Exc VAT)		0
17	104254	Caged Needle Bearing	-	4	£39.85 (Exc VAT)		0
18	108656	Roller Bearing D. 35 - 72	-	1	£309.40 (Exc VAT)		0
19	103042	Double Ball Bearing	MP -	1	£223.50 (Exc VAT)		0
20	108657	Roller Bearing	MP -	1	POA (Exc VAT)	?	0
	Alternative 108657/A	Roller Bearing	MP N	1	£584.23 (Exc VAT)		0
21	11067376	Ring	MP -	1	£1.11 (Exc VAT)		0
22	106038	Synchro Sleeve	MP -	2	£906.49 (Exc VAT)		0
23	106040	Synchro Ring	-	3	£847.28 (Exc VAT)	?	0
24	106042	Selector Block	MP -	6	£140.95 (Exc VAT)		0
25	106043	Synchro Spring	MP -	6	£9.58 (Exc VAT)		0
26	106044	Synchro Lock Pin	MP -	3	POA (Exc VAT)	?	0
	Superseded by 113412	Synchronizer Lock Pin	N	3	£19.74 (Exc VAT)		0
27	106050	Synchro Sleeve	-	2	£335.88 (Exc VAT)		0
28	113412	Synchronizer Lock Pin	-	3	£19.74 (Exc VAT)		0
29	13907570	Layshaft Pin	-	1	£0.49 (Exc VAT)		0
30	108096	Spacer	-	1	£52.87 (Exc VAT)		0
