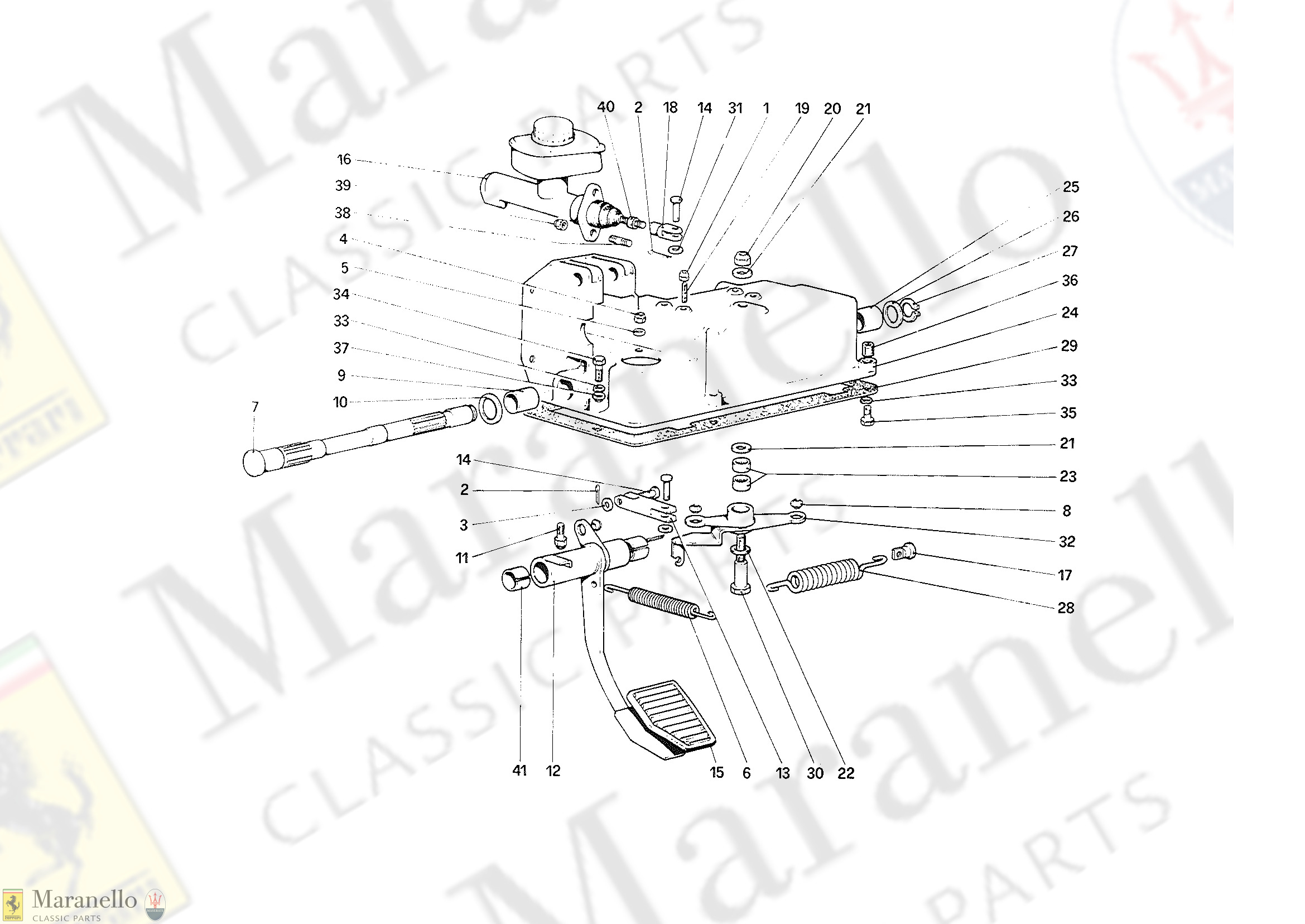

Ferrari / Mondial 8 USA / 022 - Clutch Release Control

Reset

< Prev Next >

001 - Engine - Gearbox and Supports

002 - Crankcase

003 - Crankshaft - Connecting rods and pistons

004 - Flywheel and Clutch Housing Spacer

005 - Cylinder Head (Right)

006 - Cylinder Head (Left)

007 - Timing System - Tappets

008 - Timing System - Controls

009 - Air Pump and Pipings

010 - Antievaporative Emission Control System

011 - Fuel Pump and Pipes

012 - Fuel Injection System - Fuel Distributors Lines

013 - Air Intake and Manifolds

014 - Throttle Housing and Linkage

015 - Exhaust System

016 - EGR System

017 - Blow - By System

018 - Lubrification System

019 - Cooling System

020 - Water Pump and Pipings

021 - Clutch System and Control

022 - Clutch Release Control

023 - Gearbox Transmission

024 - Gearbox - Differential Housing and Oil Sump

025 - Main Shaft Gears

026 - Lay Shaft Gears

027 - Inside Gearbox Controls

028 - Outside Gearbox Controls

029 - Differential and Axle Shafts

030 - Brake Hydraulic System

031 - Brake System

032 - Calipers for Front and Rear Brakes

033 - Hand - Brake Control

034 - Steering Box and Linkage

035 - Steering Column

036 - Front Suspension - Shock Absorber and Brake Disc

037 - Front Suspension - Wishbones

038 - Rear Suspension - Shock Absorber and Brake Disc

039 - Rear Suspension - Wishbones

040 - Wheels

041 - Engine Ignition

042 - Electric Generating System

043 - Air Conditioning Compressor and Controls

044 - Tool - Kit

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements

103 - Body Shell - Inner Elements

104 - Passenger and Luggage Compartments Insulation

105 - Front Compartment Lid

106 - Engine Compartment Lid and Carpeting

107 - Luggage Compartment Lid

108 - Doors

109 - Bumpers Headlamps and Front Glasses

110 - Bumpers Lights and Rear Glasses

111 - Seats

112 - Roof Tunnel and Safety Belts

113 - Instrument Panel

114 - Instruments

115 - Headlights Lifting Device

116 - Electrical Board

117 - Windshield Wiper Washer and Horn

118 - Heating System

119 - Electrical System

120 - Sun Roof

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	12574121	Nyloc Nut White	-	4	POA (Exc VAT)	?	0
	Superseded by 169180	Nyloc Nut M5 x 6.3	N	4	£0.13 (Exc VAT)		0
2	10734201	Split Pin	-	3	POA (Exc VAT)	?	0
	Superseded by 10734208	Split Pin D. 2 x 12	N	3	£0.02 (Exc VAT)		0
3	10519601	Washer 8.15-17 X 2	-	2	£0.05 (Exc VAT)	?	0
	Superseded by 10519624	Washer 8.15-17x2	N	2	£0.11 (Exc VAT)		0
4	16100821	Plain Nut 8mm x 6.25mm Pitch 1.25	-	1	POA (Exc VAT)	?	0
	Superseded by 16102314	Nut M8 x 5	N	1	£0.06 (Exc VAT)		0
5	12601371	Washer	-	1	POA (Exc VAT)	?	0
	Superseded by 12601374	Wavy Washer 8mm	N	1	£0.02 (Exc VAT)		0
6	104895	Spring	-	1	£18.93 (Exc VAT)		0
7	112152	Pin	-	1	£156.83 (Exc VAT)		0
8	109407	Spherical Joint D.8-16X5	-	3	£38.58 (Exc VAT)	?	0
9	101314	Bush	-	1	£3.33 (Exc VAT)	?	0
10	112125	Washer	-	1	£1.60 (Exc VAT)	?	0
11	114825	Pin	-	1	£38.43 (Exc VAT)		0
12	112169	Clutch Pedal	-	1	£205.00 (Exc VAT)		0
13	112172	Clutch Pedal Fork	-	1	£99.03 (Exc VAT)		0
14	10050810	Pin	-	3	POA (Exc VAT)	?	0
15	106949	Pedal Rubber	MP -	1	£19.41 (Exc VAT)		0
16	116093	Clutch Master Cylinder	- £££	1	POA (Exc VAT)	?	0
17	114828	Pin	-	1	£39.78 (Exc VAT)		0
18	10007871	Fork	-	1	£10.95 (Exc VAT)	?	0
19	11000821	Stud	-	4	POA (Exc VAT)	?	0
20	16105121	Nyloc Nut	-	1	POA (Exc VAT)	?	0
	Superseded by 148020	Nut M12 x 1.25	N	1	£3.47 (Exc VAT)		0
21	113500	Washer	-	2	£10.25 (Exc VAT)		0
22	112126	Washer	-	1	£0.34 (Exc VAT)		0
23	115430	Roller Bearing	-	2	£12.60 (Exc VAT)		0
24	112150	Pedal Support Housing LHD	- £££	1	£1,280.88 (Exc VAT)		0
25	112153	Bush	-	1	£2.86 (Exc VAT)		0
26	112128	Washer 1.00mm	-	1	POA (Exc VAT)	?	0
27	11066675	Snap Ring	-	1	POA (Exc VAT)	?	0
	Alternative 11066676	Circlip	N	1	£0.14 (Exc VAT)		0
28	114826	Clutch Pedal Return Spring	-	1	£45.21 (Exc VAT)		0
29	112151	Gasket	-	1	£25.71 (Exc VAT)		0
30	114830	Pin	-	1	£11.12 (Exc VAT)		0
31	12642701	Washer	-	1	£0.24 (Exc VAT)		0
32	114829	Lever	-	1	£169.59 (Exc VAT)		0
33	106852	Spring Washer 8mm	-	5	POA (Exc VAT)	?	0
	Superseded by 127496	Spring Washer 8mm	N	5	£0.05 (Exc VAT)		0
34	16136021	Screw	-	3	£0.81 (Exc VAT)		0
35	16043421	Bolt	-	2	POA (Exc VAT)	?	0
	Superseded by 16043424	Bolt M8 x 20	N	2	£0.16 (Exc VAT)		0
36	13525870	Heli-Coil	-	2	£2.15 (Exc VAT)		0
37	10519620	Washer	-	3	POA (Exc VAT)	?	0
	Superseded by 10519624	Washer 8.15-17x2	N	3	£0.11 (Exc VAT)		0
38	13543321	Short Stud	-	2	POA (Exc VAT)	?	0
	Superseded by 13543324	Stud M8 x 16 - Shank 20mm	N	2	£4.74 (Exc VAT)		0
39	16104111	Nut	-	2	POA (Exc VAT)	?	0
	Superseded by 104030	Nyloc Nut M8 x 1.25 x 9.5	N	2	£0.20 (Exc VAT)		0
40	16102311	RH Thread Nut	-	1	£0.18 (Exc VAT)	?	0
	Superseded by 16102314	Nut M8 x 5	N	1	£0.06 (Exc VAT)		0
41	103163	Bush	-	2	£5.31 (Exc VAT)		0
