No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	287816	LH Head Applicable until depletion	-	1	POA (Exc VAT)			?	0
1	303927	LH Head Applicable after depletion of 287816	-	1	£2,427.99 (Exc VAT)			?	0
2	183524	Cylinder Head Nut	-	28	£2.89 (Exc VAT)			?	0
3	151117	Washer	-	28	£0.93 (Exc VAT)			?	0
	Alternative 136270	Washer	MP N	28	£5.45 (Exc VAT)				0
4	127635	Threaded Plug 18x11x1.5 Inspection hole cover	-	12	£2.89 (Exc VAT)				0
4	14326001	Threaded Plug D 10x1.25 For oil circuit orifices- -No longer supplied- -Replaced by 282755	-	5	£0.36 (Exc VAT)				0
4	282755	Threaded Plug D 10x1.25 For oil circuit orifices	-	5	£1.89 (Exc VAT)			?	0
	Superseded by 14326001	Threaded Plug D 10x1.25	N	5	£0.36 (Exc VAT)				0
4	10275501	Threaded Plug 12x11	-	2	£0.83 (Exc VAT)			?	0
4	127635	Threaded Plug 18x11x1.5 For rear water orifice cover	-	1	£2.89 (Exc VAT)				0
4	199760	Threaded Plug D 6x1	-	6	£0.25 (Exc VAT)				0
5	243720	Screw With Washer 6x40	-	2	£0.50 (Exc VAT)			?	0
5	243721	Screw With Washer 6x45	-	4	£0.43 (Exc VAT)			?	0
6	243719	Screw With Washer 6x35	-	20	£0.47 (Exc VAT)				0
7	239614	Gasket	-	1	£3.99 (Exc VAT)				0
8	243719	Screw With Washer 6x35	-	4	£0.47 (Exc VAT)				0
8	239502	Screw 6x25	-	1	£0.51 (Exc VAT)				0
9	11197774	Conic Washer 6.4x12x1.2	-	1	£0.05 (Exc VAT)				0
10	211641	Stud - M6 X 16- -Shank length 24	-	12	£0.81 (Exc VAT)				0
11	269227	Oil Pressure Regulator Valve No longer supplied- -Replaced by 296017	-	2	POA (Exc VAT)			?	0
	Superseded by 801187	Oil Pressure Regulator Valve	N	2	£149.99				0
11	296017	Oil Pressure Regulator Valve	MP -	2	POA (Exc VAT)			?	0
	Superseded by 801187	Oil Pressure Regulator Valve	N	2	£149.99				0
12	14304221	Screw 5X16	-	2	£0.09 (Exc VAT)			?	0
13	11181574	Washer	-	2	£0.02 (Exc VAT)				0
14	271269	LH Cylinder Head Cover Applicable up to engine No. 201497	-	1	£419.99 (Exc VAT)			?	0
14	292566	LH Cylinder Head Cover Applicable from engine No. 201498	-	1	£439.99 (Exc VAT)			?	0
15	229353	Solenoid Valve Gasket	-	1	£10.99 (Exc VAT)				0
16	271521	Connector	-	1	£5.79 (Exc VAT)				0
17	243802	LH Head Cover Gasket	-	1	£49.99 (Exc VAT)				0
18	223982	Gasket Spark Plug Hole	-	6	£1.49 (Exc VAT)				0
19	293214	LH Front Head Heat Shield	-	1	£179.99 (Exc VAT)			?	0
20	293213	LH Rear Head Heat Shield	-	1	£159.99 (Exc VAT)			?	0
21	10902024	Screw M6 x 12 No longer supplied- -Replaced by 11628424	-	3	£0.05 (Exc VAT)				0
21	11628424	Screw 6X14 No longer supplied- -Replaced by 233600	-	3	£0.56 (Exc VAT)			?	0
21	233600	Screw M6 x 12	-	3	£0.48 (Exc VAT)				0
22	11197774	Conic Washer 6.4x12x1.2 No longer supplied	-	3	£0.05 (Exc VAT)				0
23	224573	Phase Sensor	-	2	£25.99 (Exc VAT)				0
24	231616	Screw 6x14	-	2	£0.25 (Exc VAT)				0
25	157218	Bolt M6 x 25	-	17	£0.51 (Exc VAT)				0
26	11197774	Conic Washer 6.4x12x1.2	-	20	£0.05 (Exc VAT)				0
27	214412	Stud Bolt	-	2	£7.79 (Exc VAT)				0
28	243804	LH Cylinder Head Gasket Applicable until depletion	-	1	POA (Exc VAT)			?	0
28	324014	LH Head-Crankcase Gasket Applicable after depletion of 243804	-	1	£169.99 (Exc VAT)			?	0
29	200458	Non Return Valve	-	2	£5.79 (Exc VAT)				0
30	11625524	Screw	-	2	£0.67 (Exc VAT)			?	0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

Recently Viewed

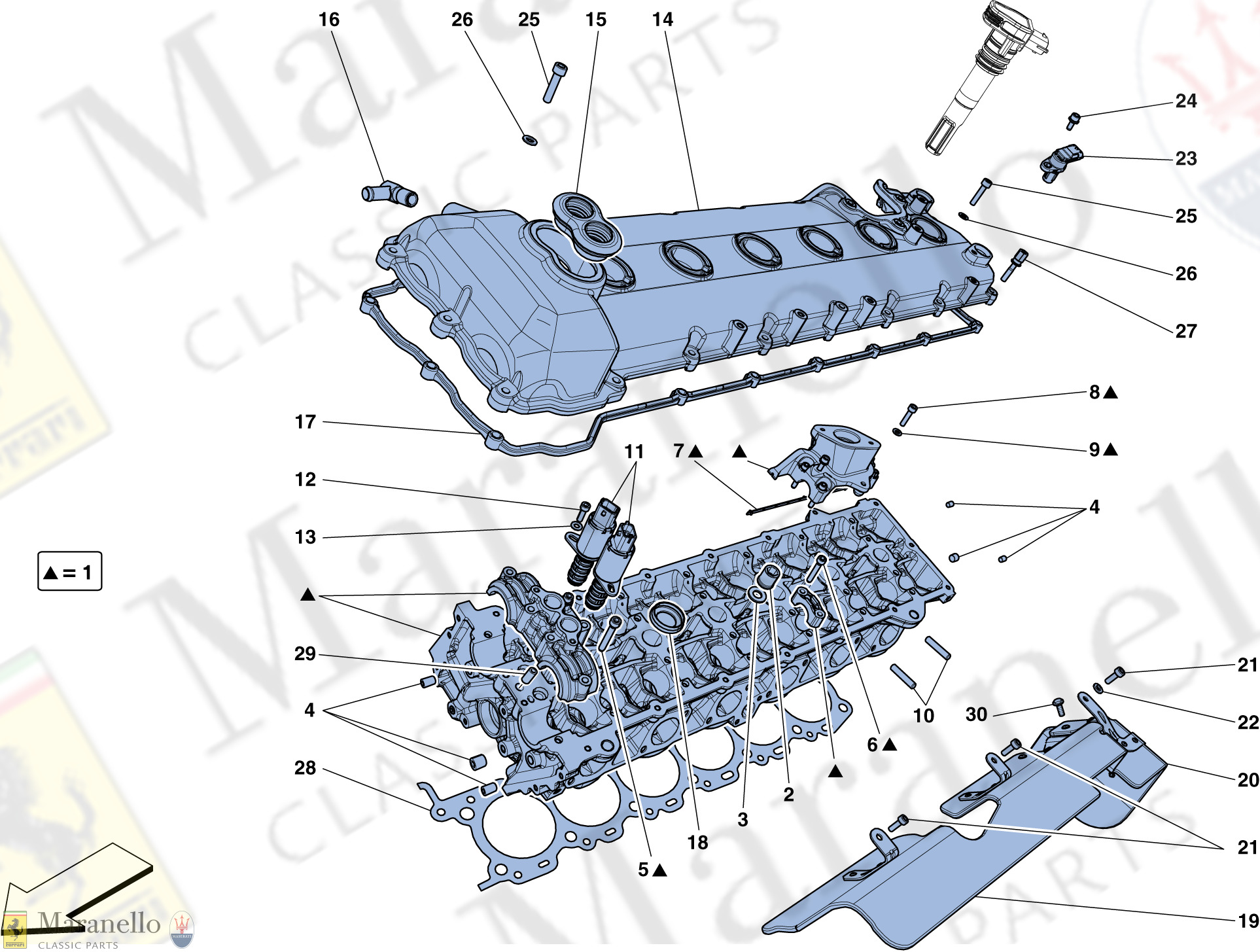

Ferrari / F12 Berlinetta / 004 - Left Hand Cylinder Head
