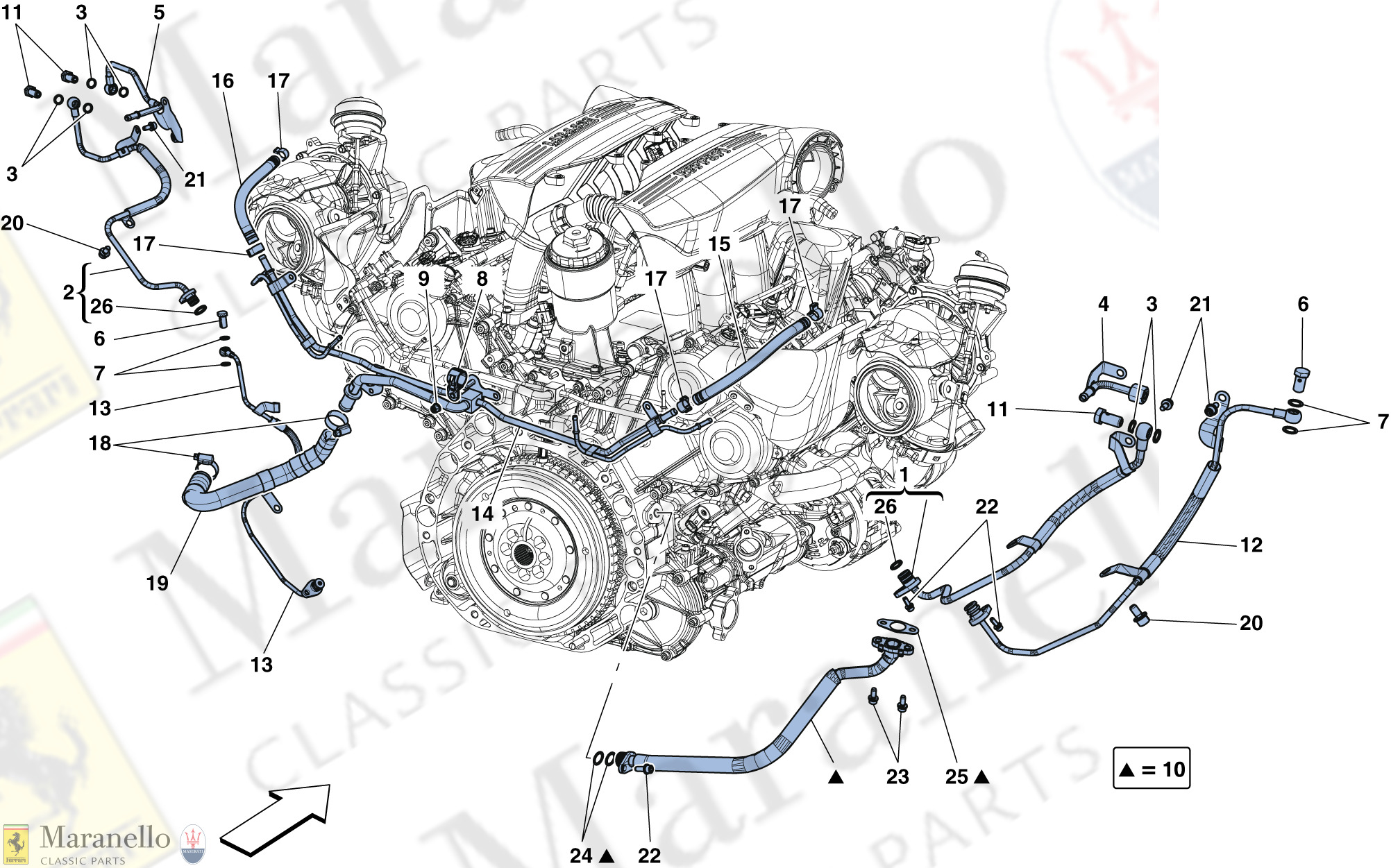

015 - Cooling-Lubrication For Turbocharging System

000 - Spare Assembly Units

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Right Hand Cylinder Head

004 - Left Hand Cylinder Head

005 - Timing System - Tappets

006 - Timing System - Drive

007 - Injection - Ignition System

008 - Secondary Air System

009 - Fuel System Pumps And Pipes

010 - Fuel Tanks And Filler Neck

011 - Fuel Tanks - Fasteners And Guards

012 - Evaporative Emissions Control System

013 - Intake Manifold

014 - Manifolds, Turbocharging System And Pipes

015 - Cooling-Lubrication For Turbocharging System

016 - Turbocharging System Adjustments

017 - Intercooler

018 - Air Filter, Air Intake And Ducts

019 - Exhaust System

020 - Engine Heat Exchanger

021 - Vents

022 - Lubrication System: Tank, Pump And Filter

023 - Cooling - Water Pump

024 - Cooling - Header Tank And Pipes

025 - Cooling - Radiators And Air Ducts

026 - Gearbox Housing

027 - Gearbox Repair Kit

028 - Gearbox Oil Cooling Radiators

029 - Gearbox Oil Lubrication And Cooling System

030 - Servo Brake System

031 - Complete Pedal Board Assembly

032 - Brake System

033 - Front Brake Callipers

034 - Rear Brake Callipers

035 - Hydraulic Power Steering Box

036 - Steering Control

037 - Power Steering Pump And Reservoir

038 - Front Suspension - Shock Absorber And Brake Disc

039 - Front Suspension - Arms

040 - Rear Suspension - Shock Absorber And Brake Disc

041 - Rear Suspension - Arms

042 - Wheels

043 - Tyre Pressure Monitoring System

044 - Vehicle Lift System

045 - Battery

046 - Alternator - Starter Motor

047 - Ac System Compressor

048 - Ac System - Water And Freon

049 - Evaporator Unit

050 - Dashboard Air Ducts

051 - Tools And Accessories Provided With Vehicle

100 - Bodyshell - External Trim

101 - Chassis - Complete Front Structure And Panels

102 - Chassis - Structure, Front Elements And Panels

103 - Central Elements And Panels

104 - Chassis - Structure, Rear Elements And Panels

105 - Flat Undertray And Wheelhouses

106 - Insulation

107 - Passenger Compartment Mats

108 - Front Compartment Trim

109 - Headliner Trim And Accessories

110 - Roof

111 - Front Lid And Opening Mechanism

112 - Engine Compartment Lid And Release Mechanism

113 - Fuel Filler Flap And Controls

114 - Doors - Substructure And Trim

115 - Doors - Opening Mechanisms And Hinges

116 - Doors - Power Window And Rear View Mirror

117 - Front Bumper

118 - Rear Bumper

119 - Rear Active Aero

120 - Screens, Windows And Seals

121 - Seats - Seat Belts, Guides And Adjustment

122 - Seats - Upholstery And Accessories

123 - Racing Seat

124 - Tunnel - Substructure And Accessories

125 - Dashboard - Substructure

126 - Dashboard - Trim

127 - Dashboard Fastenings

128 - Glove Compartment

129 - Airbags

130 - Dashboard And Tunnel Instruments

131 - Headlights And Taillights

132 - Shields - External Trim

133 - Windscreen Wiper, Windscreen Washer And Horns

134 - Main Wiring Harnesses

135 - Various Fastenings For The Electrical System

136 - Electronic Management (Suspension)

137 - VEHICLE ECUs

138 - Antitheft System

139 - Infotainment System

140 - Audio Speaker System

141 - Telemetry

142 - Adhesive Labels And Plaques

143 - PAINTING -Applicable for S.T. Schedule only-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	314531	Water Delivery Pipe To RH Turbo	-	1	£266.49 (Exc VAT)	?	0
2	320746	Water Delivery Pipe To LH Turbo	-	1	£132.18 (Exc VAT)	?	0
3	10261060	Gasket Also comes with engine gasket set	-	6	£0.13 (Exc VAT)		0
4	317597	Water Return Pipe From RH Turbo	-	1	£42.06 (Exc VAT)	?	0
5	317598	Water Return Pipe From LH Turbo	-	1	£52.98 (Exc VAT)	?	0
6	308430	Pipe Union No longer supplied- -Replaced by 315276	-	2	POA	?	0
6	315276	Pipe Union	-	2	£11.47	?	0
7	10260160	Copper Washer D. 10 - 14 x 1 Also comes with engine gasket set	-	4	£0.69 (Exc VAT)		0
8	244223	Clip	-	1	£3.83 (Exc VAT)	?	0
9	228265	Nut 6x1x9	-	1	£0.17 (Exc VAT)		0
10	317090	RH Turbo Oil Return Pipe	-	1	£353.85 (Exc VAT)	?	0
10	317008	LH Turbo Oil Return Pipe	-	1	£353.85 (Exc VAT)		0
11	308429	Pipe Union	-	3	£7.75		0
12	319942	RH Turbo Oil Delivery Pipe Applicable until depletion	-	1	POA (Exc VAT)	?	0
12	325405	RH Turbo Oil Delivery Pipe Applicable after depletion of 319942	-	1	£233.12 (Exc VAT)	?	0
13	319943	LH Turbo Oil Delivery Pipe Applicable until depletion	-	1	POA (Exc VAT)	?	0
13	325406	LH Turbo Oil Delivery Pipe Applicable after depletion of 319943	-	1	£241.01 (Exc VAT)	?	0
14	320963	Rigid Cooling Pipe Complete	-	1	£305.88 (Exc VAT)	?	0
15	318497	Rubber Pipe	-	1	£32.77 (Exc VAT)	?	0
16	318500	Rubber Pipe	-	1	£27.86 (Exc VAT)	?	0
17	13125470	Collar	-	4	£0.55 (Exc VAT)	?	0
	Superseded by 13126970	Collar	N	4	£1.23 (Exc VAT)		0
18	296778	Screw Collar 16- 27mm	-	2	£6.07 (Exc VAT)	?	0
	Superseded by 178052	Clip	N	2	£1.30 (Exc VAT)		0
19	320949	Aux Pump Return Pipe	-	1	£138.95 (Exc VAT)	?	0
20	231627	Screw M8 x 16	-	2	£0.55 (Exc VAT)		0
21	231616	Screw 6x14	-	4	£0.24 (Exc VAT)		0
22	231617	Screw M6 x 18 TCEI	-	6	£0.32 (Exc VAT)		0
23	248334	Screw M6 x 16	-	4	£0.55 (Exc VAT)		0
24	287722	O-Ring 15.08 x 2.62	-	4	£4.23 (Exc VAT)		0
25	308203	Gasket	-	2	£16.92 (Exc VAT)		0
26	14456981	O-Ring	-	2	£0.76 (Exc VAT)		0
