No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	176044	Water Pump Body	-	1	£839.99 (Exc VAT)			?	0
2	13525470	Heli Coil	-	4	£0.47 (Exc VAT)			?	0
3	171926	Thermostat Cover	-	1	£31.99 (Exc VAT)			?	0
4	137873	O-Ring Seal	-	1	£3.09 (Exc VAT)				0
5	149279	O-Ring	-	1	£3.69 (Exc VAT)				0
6	183758	Water Thermostat 79c	-	1	£73.72 (Exc VAT)			?	0
	Superseded by 950840	Water Thermostat	N	1	£61.99				0
7	14433124	Screw 6x18	-	4	£0.15 (Exc VAT)			?	0
	Superseded by 231617	Screw M6 x 18 TCEI	N	4	£0.34 (Exc VAT)				0
8	12601274	Wavy Washer 6mm	-	4	£0.47 (Exc VAT)				0
9	132349	Air Bleed Screw	-	1	£12.99 (Exc VAT)				0
10	10297760	Copper Washer	-	1	£0.34 (Exc VAT)				0
11	176045	Water Pump Impeller	-	1	£88.99 (Exc VAT)				0
12	100436	Nut Domed Water Pump M8 x 1	-	1	£8.59 (Exc VAT)				0
13	11194074	Washer 8.6-16x1.9	-	1	£0.04 (Exc VAT)				0
14	13540924	Stud	-	6	£33.99 (Exc VAT)				0
15	176173	Water Pump Case	-	1	£309.99 (Exc VAT)			?	0
16	137868	O-Ring Water Pump	-	1	£11.99 (Exc VAT)				0
17	130932	Water Pump Seal	-	1	POA (Exc VAT)				0
18	12601274	Wavy Washer 6mm	-	6	£0.47 (Exc VAT)				0
19	102741	Nyloc Nut 6x6mm	-	6	£0.17 (Exc VAT)				0
20	143742	Water Pump Shaft & Bearing	-	1	£189.99 (Exc VAT)				0
21	10202320	Woodruff Key	-	1	£0.92 (Exc VAT)				0
22	11059976	Clip	-	1	£0.89 (Exc VAT)				0
23	177207	Water Pump Pulley	-	1	£189.99 (Exc VAT)				0
24	12646821	Washer D.10 20-25x2	-	1	£0.09 (Exc VAT)				0
25	102742	Nyloc Nut M10x1.25x10	-	1	£0.34 (Exc VAT)				0
26	106227	Union M16 x 1.5	-	1	£5.39 (Exc VAT)				0
27	176046	Water Pump Bush	-	1	£18.99 (Exc VAT)			?	0
28	176047	Water Pump Spring	-	1	POA (Exc VAT)			?	0
29	147278	O-Ring	-	1	£0.46 (Exc VAT)				0
30	176048	Water Pump Plug	-	1	£9.29 (Exc VAT)			?	0
31	11058376	Circlip	-	1	POA (Exc VAT)			?	0
32	180846	Heat Exchanger	-	1	£569.99 (Exc VAT)				0
33	170483	Water Hose Valid till stock exhaustion	-	2	POA (Exc VAT)			?	0
	Superseded by 187173	Water Hose	N	2	£199.99 (Exc VAT)				0
33	187173	Water Hose	-	2	£199.99 (Exc VAT)				0
34	153430	Hose Clamp	-	2	£6.99 (Exc VAT)			?	0
	Alternative 12174990	Hose Clip 70-90	N	2	£0.99 (Exc VAT)				0
35	134109	Clamp D. 55	-	2	£8.19 (Exc VAT)				0
36	169526	Water Manifold Valid till Ass. Nr. 40546	-	1	£139.99 (Exc VAT)			?	0
	Alternative 169526/U	Water Manifold	U	1	£130.80 (Exc VAT)				0
37	180137	Water/Oil Temperature Sensor	-	1	£18.99 (Exc VAT)				0
38	10298460	Copper Washer	-	1	£0.12 (Exc VAT)				0
39	169564	Gasket Valid till Ass. Nr. 40546	-	2	£0.97 (Exc VAT)				0
40	177778	Nut Locking M8 x 7 Valid till Ass. Nr. 40546	-	4	£1.19 (Exc VAT)				0
41	12601374	Wavy Washer 8mm Valid till Ass. Nr. 40546	-	4	£0.02 (Exc VAT)				0
42	169749	Water Manifold Valid till Ass. Nr. 40546	-	2	£839.99 (Exc VAT)			?	0
42	179748	Water Manifold Valid from Ass. Nr. 40547	-	1	£169.99 (Exc VAT)			?	0
43	13516824	Stud M8 x 12 Gambo 20 Valid till Ass. Nr. 40546	-	4	£0.41 (Exc VAT)				0
44	141332	Gasket Water Manifold	-	8	£0.87 (Exc VAT)				0
45	132877	Nut Not as spare part- -Replaced by 194031	-	16	£2.49 (Exc VAT)			?	0
45	194031	Flanged Nut M6 x 20	-	16	£0.55 (Exc VAT)				0
46	12604274	Wavy Washer 6mm	-	16	£0.05 (Exc VAT)				0
47	180296	Small Plate	-	1	£189.99 (Exc VAT)			?	0
48	179698	Tensioner Bearing Water Pump	-	1	£88.99 (Exc VAT)			?	0
49	15970921	Bolt M10 x 1.25 x 35	-	1	£0.30 (Exc VAT)				0
50	11190574	Washer	-	1	£0.06 (Exc VAT)				0
51	14302824	Allen Screw 8x18	-	1	£0.20 (Exc VAT)				0
52	11198074	Washer 8mm	-	1	£0.06 (Exc VAT)				0
53	179813	Belt Alternator -Water Pump Not as spare part- -Replaced by 194229	-	1	POA (Exc VAT)			?	0
	Superseded by 201446	Belt Alternator -Water Pump	N	1	£26.99 (Exc VAT)				0
53	194229	Belt Alternator -Water Pump Valid till stock exhaustion	-	1	POA (Exc VAT)			?	0
	Superseded by 201446	Belt Alternator -Water Pump	N	1	£26.99 (Exc VAT)				0
53	201446	Belt Alternator -Water Pump Valid after stock exhaustion of 194229	-	1	£26.99 (Exc VAT)				0
54	10158801	Core Plug Te20	-	1	£1.19 (Exc VAT)				0
55	101044	O-Ring	MP -	1	£1.19 (Exc VAT)				0

Make an Enquiry Report an Issue

Part Availability Key

In Stock

In Stock - Supersession (Supersession price shown)

In Stock - Alternative (Alternative price shown)

In Stock - Partial Stock

Enquire

Recently Viewed

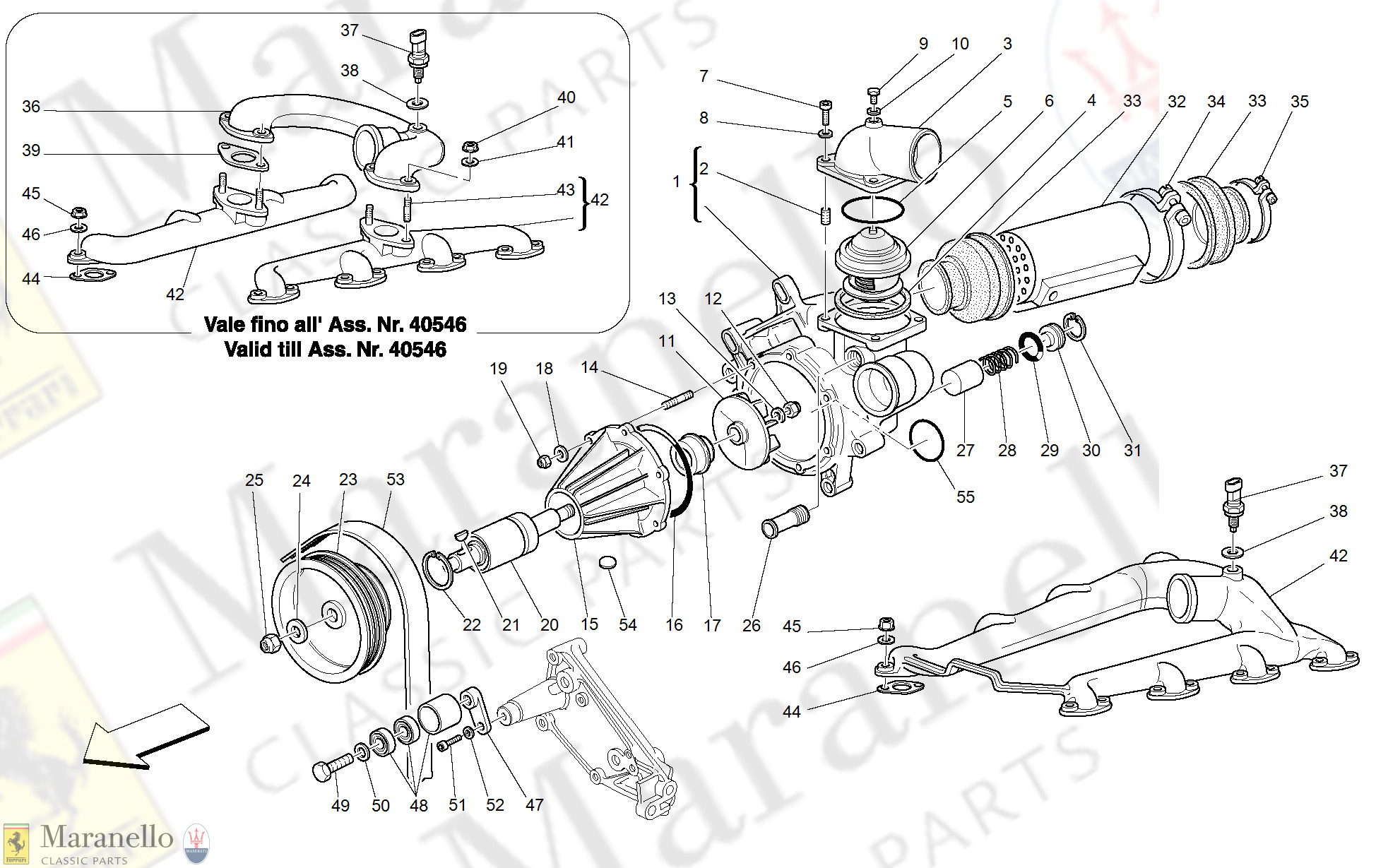

Ferrari / 360 Spider / 026 - Water Pump And Oil/Water Heat Exchanger
