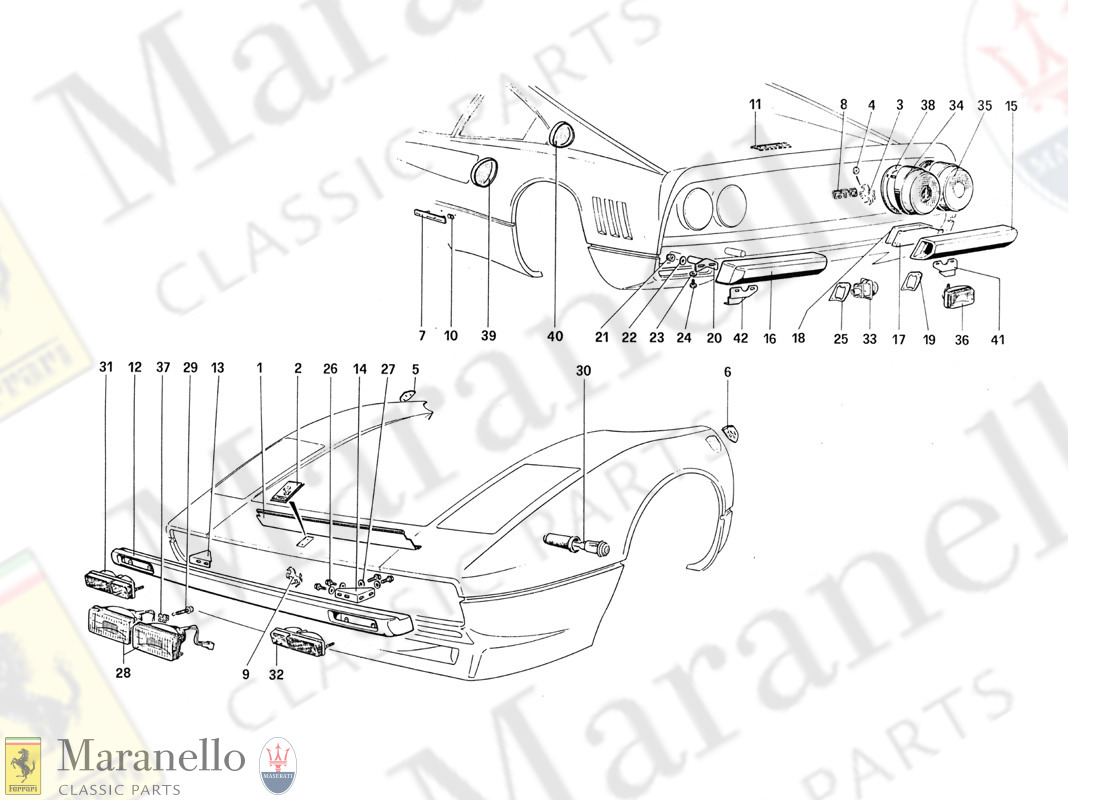

Ferrari / 288 GTO / 107 - Bumpers - Lights - Outer Name

Reset

< Prev Next >

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons - Flywheel

003 - Cylinder Head (Right)

004 - Cylinder Head (Left)

005 - Timing System - Tappets

006 - Timing System - Controls

007 - Fuel Pump And Pipes

008 - Fuel Injection System

009 - Throttle Bodies And Accelerator Control

010 - Inlet Manifolds And Heat Exchangers

011 - Turbocharging System

012 - Exhaust System

013 - Blow-By System

014 - Lubrication System

015 - Lubrication - Filter And Oil Pumps

016 - Cooling System

017 - Water Pump And Pipings

018 - Clutch Release Control

019 - Clutch And Controls

020 - Gearbox Transmission

021 - Differential Housing

022 - Differential And Axle Shafts

023 - Gearbox Housing

024 - Main Shaft Gears

025 - Lay Shaft Gears

026 - Inside Gearbox Controls

027 - Outside Gearbox Controls

028 - Brake Hydraulic System

029 - Brake System

030 - Calipers For Front And Rear Brakes

031 - Hand - Brake Control

032 - Steering Box And Linkage

033 - Steering Column

034 - Front Suspension - Shock Absorber And Brake Disc

035 - Front Suspension - Wishbones

036 - Rear Suspension -Shock Absorber And Brake Disc

037 - Rear Suspension - Wishbones

038 - Wheels

039 - Engine Ignition

040 - Electric Generating System

041 - Air Conditioning Compressor And Controls

042 - Toolkit

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements

103 - Body Shell - Inner Elements

104 - Insulations

105 - Front And Rear Bonnet

106 - Doors

107 - Bumpers - Lights - Outer Name

108 - Glasses And Gaskets

109 - Interior Trim - Accessories And Seats

110 - Instrument, Panel And Tunnel

111 - Instruments And Accessories

112 - Electrical System - Fuses And Relays

113 - Windshield Wiper - Washer And Horn

114 - Headlights Lifting Device And Sealed Beams

115 - Heating System

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	61456200	Upper Rad Shield GTO	-	1	POA (Exc VAT)	?	0
2	60795400	Front Nose Badge	-	1	£122.99 (Exc VAT)	?	0
	Superseded by 986800	Front Nose Badge	N	1	£51.26		0
3	61650400	Horse Motif Black	-	1	POA (Exc VAT)	?	0
	Alternative 60032109	Motif Prancing Horse H75mm Chrome	N	1	£43.43 (Exc VAT)		0
4	60995100	Washer	-	4	£2.13 (Exc VAT)		0
5	61474400	RH Wing Ferrari Badge	-	1	£666.31 (Exc VAT)		0
6	61596900	LH Wing Ferrari Badge	-	1	POA (Exc VAT)	?	0
	Alternative 62929200/D	LH Wing Motif Offer ends 01/Jan/2050 subject to availability.	-	1	£583.45 £280.00 (Exc VAT)		0
7	20043105	Motif "Pininfarina"	-	2	£60.57 (Exc VAT)		0
8	61383400	Motif "GTO"	-	1	POA (Exc VAT)	?	0
9	61180900	Large Prancing Horse Motif	-	1	POA (Exc VAT)	A	0
10	60324506	Safety Clip	-	4	POA (Exc VAT)	?	0
	Superseded by 88074800	Safety Clip	N	4	£0.20 (Exc VAT)		0
11	61025000	Ferrari Motif 2-Pin	-	1	£51.28 (Exc VAT)		0
12	61393100	Front Bumper (288 GTO)	- £££	1	POA (Exc VAT)	?	0
13	61393400	RH Front Bracket	-	1	POA (Exc VAT)	?	0
14	61474500	LH Front Bracket	-	1	POA (Exc VAT)	?	0
15	61393600	RH Rear Bumper	MP -	1	POA (Exc VAT)	?	0
16	61393700	LH Rear Bumper	-	1	POA (Exc VAT)	?	0
17	61650700	RH Bracket	-	1	POA (Exc VAT)	?	0
17	61650800	LH Bracket	-	1	POA (Exc VAT)	?	0
18	61691100	RH Insulation	-	1	POA (Exc VAT)	?	0
18	61712400	LH Insulation	-	1	POA (Exc VAT)	?	0
19	61650500	RH Plate	-	1	POA (Exc VAT)	?	0
20	61281000	Rear Bumper Bracket	-	4	£22.59 (Exc VAT)	?	0
21	16100811	Nut 8x6.5mm	-	8	POA (Exc VAT)	?	0
	Superseded by 16100824	Nut M8 x 6.5	N	8	£0.12 (Exc VAT)		0
22	10615671	Washer	-	8	POA (Exc VAT)	?	0
	Superseded by 12601374	Wavy Washer 8mm	N	8	£0.02 (Exc VAT)		0
23	10519601	Washer 8.15-17 X 2	-	4	£0.05 (Exc VAT)	?	0
	Superseded by 10519624	Washer 8.15-17x2	N	4	£0.11 (Exc VAT)		0
24	10643221	Screw	-	4	POA (Exc VAT)	?	0
25	61650600	LH Plate	-	1	POA (Exc VAT)	?	0
26	13836011	Screw	-	8	POA (Exc VAT)	?	0
27	14496401	Washer	-	16	POA (Exc VAT)	?	0
	Superseded by 10519424	Washer 1.6mm 6.40x11.95x1.6	N	16	£0.02 (Exc VAT)		0
28	61667600	Front Spot/Driving Lamp Not for F	-	4	POA (Exc VAT)	?	0
28	61728600	Yellow Front Spot Lamps Only for F	-	4	£497.22 (Exc VAT)		0
29	61667700	Screw	-	8	POA (Exc VAT)	?	0
30	50020007	Wing Repeater	-	2	£84.54 (Exc VAT)	?	0
	Alternative 60054103	Wing Repeater Lamp	MP N	2	£55.48 (Exc VAT)		0
31	61667800	RH Front Ind/Sidelight	MP -	1	£755.39 (Exc VAT)		0
32	61667900	LH Front Indicator/Sidelight	MP -	1	£755.39 (Exc VAT)		0
33	61668600	Number Plate Light	-	2	POA (Exc VAT)	?	0
34	60170305	Rear Stop/Tail Lamp	-	2	£290.50 (Exc VAT)	?	0
	Alternative 60170305/A	Rear Stop/Tail Lamp	N	2	£272.06 (Exc VAT)		0
35	60170206	Rear Indicator & Reverse Lamp	-	2	POA (Exc VAT)	?	0
	Alternative 60170206/A	Rear Indicator & Reverse Lamp	N	2	£290.50 (Exc VAT)		0
36	60670000	Rear Fog Lamp Assy	-	2	POA (Exc VAT)	?	0
37	61670000	Clip	-	8	POA (Exc VAT)	?	0
38	60592100	Tail Lamp Gasket	-	4	POA (Exc VAT)	?	0
39	61730300	RH Air Inlet Grille Only for D	-	1	£40.81 (Exc VAT)		0
39	61730400	LH Air Inlet Grille	-	1	£40.81 (Exc VAT)		0
40	61730500	RH Air Inlet Grille Only for D	-	1	£89.22 (Exc VAT)		0
40	61730600	LH Air Inlet Grille Only for D	-	1	£89.22 (Exc VAT)		0
41	61737500	RH Bracket Only for D	-	1	POA (Exc VAT)	?	0
42	61737600	LH Bracket	-	1	£64.92 (Exc VAT)	?	0
