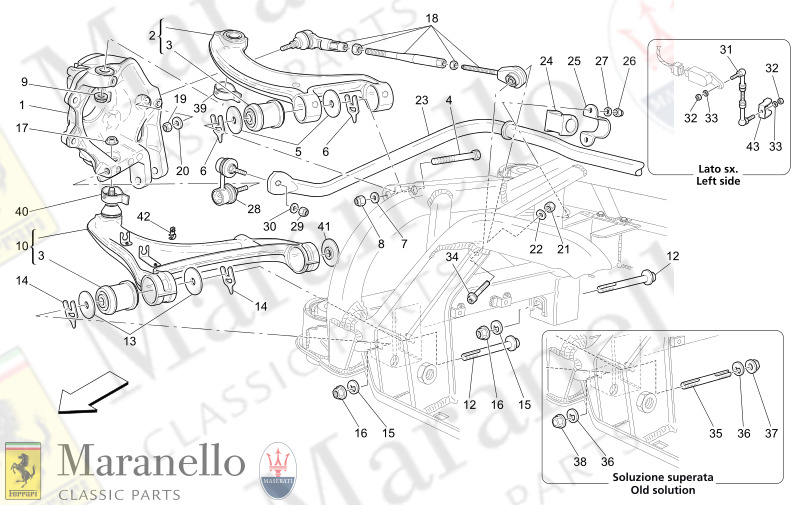

Maserati / GranTurismo C 2011 4700 cc AUTOMATIC / 06.20 - 1 REAR SUSPENSION Not available with

Reset

< Prev Next >

06.20 - 1 REAR SUSPENSION Not available with

01.00 - 1 CRANKCASE

01.10 - 1 CRANK MECHANISM

01.11 - 1 AUXILIARY DEVICE BELTS

01.20 - 1 RH CYLINDER HEAD

01.21 - 1 LH CYLINDER HEAD

01.22 - 1 RH CYLINDER HEAD CAMSHAFTS

01.23 - 1 LH CYLINDER HEAD CAMSHAFTS

01.24 - 1 TIMING

01.25 - 1 VALVES

01.40 - 1 INTAKE MANIFOLD AND THROTTLE BODY

01.41 - 1 AIR FILTER, AIR INTAKE AND DUCTS

01.42 - 1 FUEL TANK

01.43 - 1 FUEL PUMPS AND CONNECTION LINES

01.44 - 1 FUEL VAPOUR RECIRCULATION SYSTEM

01.50 - 1 ADDITIONAL AIR SYSTEM

01.60 - 1 LUBRICATION SYSTEM CIRCUIT AND COLLECTIO

01.61 - 1 LUBRICATION SYSTEM PUMP AND FILTER

01.62 - 1 HEAT EXCHANGER

01.63 - 1 OIL VAPOUR RECIRCULATION SYSTEM

01.70 - 1 COOLING AIR RADIATORS AND DUCTS

01.71 - 1 COOLING SYSTEM NOURICE AND LINES

01.72 - 1 COOLING SYSTEM WATER PUMP

01.80 - 1 PRE-CATALYTIC CONVERTERS AND CATALYTIC C

01.81 - 1 SILENCERS

01.90 - 1 ELECTRONIC CONTROL INJECTION AND ENGINE

01.91 - 1 ELECTRONIC CONTROL ENGINE IGNITION

03.02 - 1 DRIVER CONTROLS FOR AUTOMATIC GEARBOX

03.10 - 1 GEARBOX HOUSINGS

03.10 - 2 GEARBOX HOUSINGS

03.21 - 1 DIFFERENTIAL AND REAR AXLE SHAFTS

03.30 - 1 TRANSMISSION SHAFT

03.50 - 1 LUBRICATION AND GEARBOX OIL COOLING

04.00 - 1 BRAKE SERVO SYSTEM

04.10 - 1 BRAKING DEVICES ON FRONT WHEELS

04.11 - 1 BRAKING DEVICES ON REAR WHEELS

04.20 - 1 LINES

04.30 - 1 PARKING BRAKE

04.90 - 1 BRAKING CONTROL SYSTEMS

05.00 - 1 STEERING COLUMN AND STEERING WHEEL UNIT

05.10 - 1 STEERING RACK AND HYDRAULIC STEERING PUM

05.20 - 1 COMPLETE PEDAL BOARD UNIT

06.00 - 1 WHEELS AND TYRES

06.10 - 1 FRONT SUSPENSION

06.11 - 1 FRONT SHOCK ABSORBER DEVICES

06.12 - 1 FRONT UNDERCHASSIS

06.20 - 1 REAR SUSPENSION Not available with

06.21 - 1 REAR SHOCK ABSORBER DEVICES

06.22 - 1 REAR CHASSIS

06.90 - 1 ELECTRONIC CONTROL (SUSPENSION)

07.00 - 1 FRONT AIRBAG SYSTEM

07.01 - 1 PASSENGER'S AIRBAG-DEACTIVATION

07.02 - 1 FRONT SIDE BAG SYSTEM

07.05 - 1 CRASH SENSORS

07.10 - 1 FRONT SEATBELTS

07.11 - 1 REAR SEAT BELTS

07.20 - 1 TYRE PRESSURE MONITORING SYSTEM Av

07.30 - 1 ACCESSORIES PROVIDED

07.30 - 2 ACCESSORIES PROVIDED

07.31 - 1 AFTER MARKET ACCESSORIES

07.31 - 2 AFTER MARKET ACCESSORIES

08.00 - 1 EXTERNAL VEHICLE DEVICES

08.10 - 1 INTERNAL VEHICLE DEVICES

08.20 - 1 ENERGY GENERATION AND ACCUMULATION

08.30 - 1 HEADLIGHT CLUSTERS

08.31 - 1 TAILLIGHT CLUSTERS

08.32 - 1 SIDE LIGHT CLUSTERS

08.39 - 1 LIGHTING SYSTEM CONTROL

08.40 - 1 AC UNIT ENGINE COMPARTMENT DEVICES

08.40 - 2 AC UNIT ENGINE COMPARTMENT DEVICES

08.41 - 1 AC UNIT DASHBOARD DEVICES

08.42 - 1 AC UNIT DIFFUSION

08.49 - 1 AC UNIT ELECTRONIC CONTROL

08.50 - 1 DASHBOARD DEVICES

08.51 - 1 CENTRE CONSOLE DEVICES

08.52 - 1 DOOR DEVICES

08.53 - 1 ALARM AND IMMOBILIZER SYSTEM

08.53 - 2 ALARM AND IMMOBILIZER SYSTEM

08.60 - 1 MAIN WIRING

08.60 - 2 MAIN WIRING

08.61 - 1 RELAYS, FUSES AND BOXES

08.70 - 1 SOUND DIFFUSION SYSTEM

08.71 - 1 IT SYSTEM

08.71 - 2 IT SYSTEM

08.72 - 1 RECEPTION AND CONNECTION SYSTEM

08.72 - 2 RECEPTION AND CONNECTION SYSTEM

09.00 - 1 BODYWORK AND FRONT OUTER TRIM PANELS

09.01 - 1 BODYWORK AND CENTRAL OUTER TRIM PANELS

09.02 - 1 BODYWORK AND REAR OUTER TRIM PANELS

09.03 - 1 FRONT STRUCTURAL FRAMES AND SHEET PANELS

09.04 - 1 CENTRAL STRUCTURAL FRAMES AND SHEET PANE

09.05 - 2 REAR STRUCTURAL FRAMES AND SHEET PANELS

09.10 - 1 FRONT BUMPER

09.11 - 1 REAR BUMPER

09.12 - 1 PARKING SENSORS

09.13 - 1 WHEELHOUSE AND LIDS

09.14 - 1 UNDERBODY AND UNDERFLOOR GUARDS

09.15 - 1 SHIELDS, TRIMS AND COVERING PANELS

09.15 - 2 SHIELDS, TRIMS AND COVERING PANELS

09.16 - 1 TRIMS, BRANDS AND SYMBOLS

09.17 - 1 STICKERS AND LABELS

09.20 - 1 FRONT LID

09.21 - 1 REAR LID

09.22 - 1 FUEL TANK DOOR AND CONTROLS

09.23 - 1 FRONT LID OPENING BUTTON

09.24 - 1 REAR LID OPENING CONTROL

09.30 - 1 FRONT DOORS TRIM PANELS Not availa

09.31 - 1 FRONT DOORS MECHANISMS

09.34 - 1 WINDOWS AND WINDOW STRIPS

09.35 - 1 INTERNAL AND EXTERNAL REAR-VIEW MIRRORS

09.40 - 1 FRONT SEATS TRIM PANELS Not avail

09.41 - 1 FRONT SEATS MECHANICS AND ELECTRONICS

09.42 - 1 REAR SEATS TRIM PANELS Not availa

09.44 - 1 PASSENGER COMPARTMENT B PILLAR TRIM PANE

09.45 - 1 ROOF AND SUN VISORS Not available

09.50 - 1 DASHBOARD UNIT Not available with

09.51 - 1 ACCESSORY CONSOLE AND CENTRE CONSOLE

09.52 - 1 GLOVE COMPARTMENTS Not available w

09.60 - 1 PASSENGER COMPARTMENT MATS Not ava

09.61 - 1 LUGGAGE COMPARTMENT MATS Not avail

09.62 - 1 SOUND-PROOFING PANELS INSIDE THE VEHICLE

09.63 - 1 THERMAL INSULATING PANELS

09.80 - 1 ELECTRICAL CAPOTE LININGS Not avai

09.81 - 1 ELECTRICAL CAPOTE COVERS Not avail

09.82 - 1 ELECTRICAL CAPOTE TOP HOUSING

09.83 - 1 ELECTRICAL CAPOTE ROLL BAR AND ACCESSORI

09.84 - 1 ELECTRICAL CAPOTE CLOSINGS AND MICROSWIT

09.87 - 1 ELECTRICAL CAPOTE FLAPS Not availa

09.88 - 1 ELECTRICAL CAPOTE HYDRAULIC SYSTEM

09.89 - 1 ELECTRICAL CAPOTE ELECTRONIC CONTROL

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
0	980139918	Rear LH Susp. Kit	-	1	£528.00 (Exc VAT)		0
0	980139916	Rear RH Susp. Kit	-	1	£528.00 (Exc VAT)	?	0
1	-	LH REAR HUB HOLDER ASSEMBLY Code is not available separately, order code complete suspension kit	-	1	POA		0
1	-	RH REAR HUB HOLDER ASSEMBLY Code is not available separately, order code complete suspension kit	-	1	POA		0
2	-	COMPLETE L.H. REAR UPPER LEVER Code is not available separately, order code complete suspension kit	-	1	POA		0
2	-	COMPLETE R.H. REAR UPPER LEVER Code is not available separately, order code complete suspension kit	-	1	POA		0
3	980139890	Silent Block Kit Rear Suspension	-	2	£217.00 (Exc VAT)	?	0
4	15541334	Screw Te M 12X1.25X 75	-	4	£3.80 (Exc VAT)	?	0
5	194444	Washer	-	8	£2.25 (Exc VAT)	?	0
6	198043	Spacer 0.50 Mm Thickness mm. 0,50	-	8	£3.80 (Exc VAT)	?	0
6	198044	Spacer 0.75 Mm Thickness mm. 0,75	-	8	£3.75 (Exc VAT)	?	0
6	198045	Spacer 1.00 Mm Thickness mm. 1,00	-	8	£3.65 (Exc VAT)	?	0
6	198046	Spacer 1.75 Mm Thickness mm. 1,75	-	8	£2.90 (Exc VAT)	?	0
6	198047	Spacer 3.00 Mm Thickness mm. 3,00	-	8	£2.90 (Exc VAT)	?	0
7	14496721	Washer	-	4	£1.30 (Exc VAT)		0
8	102825	Maserati Nyloc Nut M12x1.25X1	-	4	£1.60 (Exc VAT)	?	0
9	245240	Nut M14 X 1.5 Flan.Autofr.+	-	2	£8.35 (Exc VAT)	?	0
10	-	COMPLETE L.H. FRONT REAR LEVER Code is not available separately, order code complete suspension kit	-	1	POA		0
10	-	COMPLETE R.H. REAR LOWER LEVER Code is not available separately, order code complete suspension kit	-	1	POA		0
12	260766	Screw With Eccentric M14X1.5	-	4	£35.10 (Exc VAT)	?	0
13	194445	Washer	-	6	£2.80 (Exc VAT)	?	0
14	198038	Spacer 0.50 Mm Thickness mm. 0,50	-	8	£3.80 (Exc VAT)		0
14	198039	Spacer 0.75 Mm Thickness mm. 0,75	-	8	£3.75 (Exc VAT)	?	0
14	198040	Spacer 1.00 Mm Thickness mm. 1,00	-	8	£3.65 (Exc VAT)	?	0
14	198041	Spacer 1.75 Mm Thickness mm. 1,75	-	8	£3.00 (Exc VAT)	?	0
14	198042	Spacer 3.00 Mm Thickness mm. 3,00	-	8	£4.00 (Exc VAT)	?	0
15	240877	Washer (Eccentric)	-	4	£4.65 (Exc VAT)	?	0
16	203795	Nut M14	-	4	£4.30 (Exc VAT)	?	0
17	245240	Nut M14 X 1.5 Flan.Autofr.+	-	2	£8.35 (Exc VAT)	?	0
17	247308	Nut For Suspension Lever Adjustment Use only pretightening	-	1	£9.00 (Exc VAT)	?	0
18	276636	Convergency Regolation Tie Rod	-	2	£275.00 (Exc VAT)	?	0
19	203657	Nut M10x1.25R10 Riv/Ec	-	2	£1.60 (Exc VAT)	?	0
20	12626224	Washer	-	2	£1.70 (Exc VAT)	?	0
21	203657	Nut M10x1.25R10 Riv/Ec	-	2	£1.60 (Exc VAT)	?	0
22	12626224	Washer	-	2	£1.70 (Exc VAT)	?	0
23	255211	Rear Anti-Roll Bar	-	1	£223.00 (Exc VAT)	?	0
24	244021	Bar Buffer D.20X43	-	2	£12.60 (Exc VAT)	?	0
25	191221	Piastrina Tenuta Tamp.Barra	-	2	£30.10 (Exc VAT)	?	0
26	104030	Nyloc Nut 8 x 1.25	-	4	£1.30 (Exc VAT)	?	0
27	14496524	Washer D. 8.40-17 X1.6	-	4	£1.30 (Exc VAT)	?	0
28	259572	RH Front / LH Rear Roll Bar Link L.h. side	-	1	£66.10 (Exc VAT)		0
28	259573	LH Front / RH Rear Roll Bar Link R.h. side	-	1	£60.70 (Exc VAT)	?	0
29	102742	Nut	-	2	£1.30 (Exc VAT)		0
30	12601474	Washer D.10,50-21X 1,0	-	2	£1.05 (Exc VAT)	?	0
31	228958	Tie Rod for Light Adjusting Potentiometer	-	1	£45.70 (Exc VAT)	?	0
32	102741	Nut	-	2	£1.30 (Exc VAT)	?	0
33	14498824	Washer D.6.40-16.3 D.6.4-16.3X1	-	2	£1.30 (Exc VAT)	?	0
34	205608	Screw Eccentrico M10 X D2	-	2	£47.70 (Exc VAT)	?	0
35	204008	Stud M14x11	-	2	£43.00 (Exc VAT)	?	0
36	240877	Washer (Eccentric)	-	4	£4.65 (Exc VAT)	?	0
37	203795	Nut M14	-	2	£4.30 (Exc VAT)	?	0
38	204010	Nut M14x2	-	2	£4.95 (Exc VAT)	?	0
39	386600416	Protection	-	2	£4.40 (Exc VAT)	?	0
40	386600416	Protection	-	2	£4.40 (Exc VAT)	?	0
41	222203	Distanziale Per Bushing	-	2	£16.20 (Exc VAT)	?	0
42	150738	Fixing Clip	-	2	£1.30 (Exc VAT)	?	0
43	231274	Bracket	-	1	£8.15 (Exc VAT)	?	0
