029 - Front Suspension - Shock Absorber And Brake Disc

000 - Spare Assembly Units

001 - Crankcase

002 - Crankshaft - Connecting Rods And Pistons

003 - Right Hand Cylinder Head

004 - Left Hand Cylinder Head

005 - Timing System - Tappets And Shafts

006 - Timing System - Drive

007 - Injection - Ignition System

008 - Secondary Air System

009 - Fuel Tank - Filler Neck And Pumps

010 - Evaporative Emissions Control System

011 - Intake Manifold

012 - Air Intakes

013 - Exhaust System

014 - Lubrication System And Oil Vapour Recovery System

015 - Oil Pump

016 - Header Tank And Pipes

017 - Coolin System

018 - Complete Gearbox

019 - Electric Motor

020 - Electric Motor Cooling

021 - Gearbox Oil Cooling System

022 - Pedal Board

023 - Hydraulic Brake Controls And Power Brake System

024 - Brake System

025 - Front And Rear Brake Calipers

026 - Hydraulic Power Steering Box

027 - Steering Control

028 - Power Steering Pump And Reservoir

029 - Front Suspension - Shock Absorber And Brake Disc

030 - Front Suspension - Arms

031 - Rear Suspension - Shock Absorber And Brake Disc

032 - Rear Suspension - Arms

033 - Wheels

034 - Tyre Pressure Monitoring System

035 - Lifting The Vehicle

036 - Starter Battery

037 - Battery Cooling System

038 - Inverter And Cooling

039 - Starter Motor And Electric Motor 2

040 - Inverter-Me1-Me2 Repair Kit

041 - Ac System

042 - Evaporator Unit

043 - Dashboard Air Ducts

044 - Front Compartment And Tools Supplied With Vehicle

045 - MAINTENANCE PROCEDURES -Applicable for S.T. Schedule only-

100 - Monocoque Tub - Front Subchassis - Central Flat Undertray

101 - Rear Subchassis

102 - Exterior Trim

103 - Flat Undertray And Wheelhouses

104 - Heat Shields And Insulation

105 - Front Bumper

106 - Rear Bumper

107 - Passenger Compartment Mats

108 - Luggage Compartment Mats

109 - Front Lid And Release Mechanism

110 - Engine Compartment Lid And Release Mechanism

111 - Fuelling And Charging

112 - Doors - Substructure And Trim

113 - Doors - Opening Mechanisms And Hinges

114 - Doors - Power Window And Rear View Mirror

115 - Windows And Screens

116 - Headliner Trim And Accessories

117 - Passenger Compartment Trim And Accessories

118 - Dashboard

119 - Glove Compartment

120 - Airbags

121 - Dashboard And Tunnel Instruments

122 - Seats And Seat Belts

123 - Headlights And Taillights

124 - Shields And Trim

125 - Windscreen Wiper, Windscreen Washer And Horns

126 - Main Wiring Harnesses

127 - Hv Battery And Wiring Harnesses

128 - Various Fastenings For The Electrical System

129 - Electronic Management (Suspension)

130 - Vehicle Ecus

131 - Antitheft System

132 - Audio - Infotainment System

133 - Telemetry - Data Acquisition

134 - Adhesive Labels And Plaques

135 - PAINTING -Applicable for S.T. Schedule only-

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:

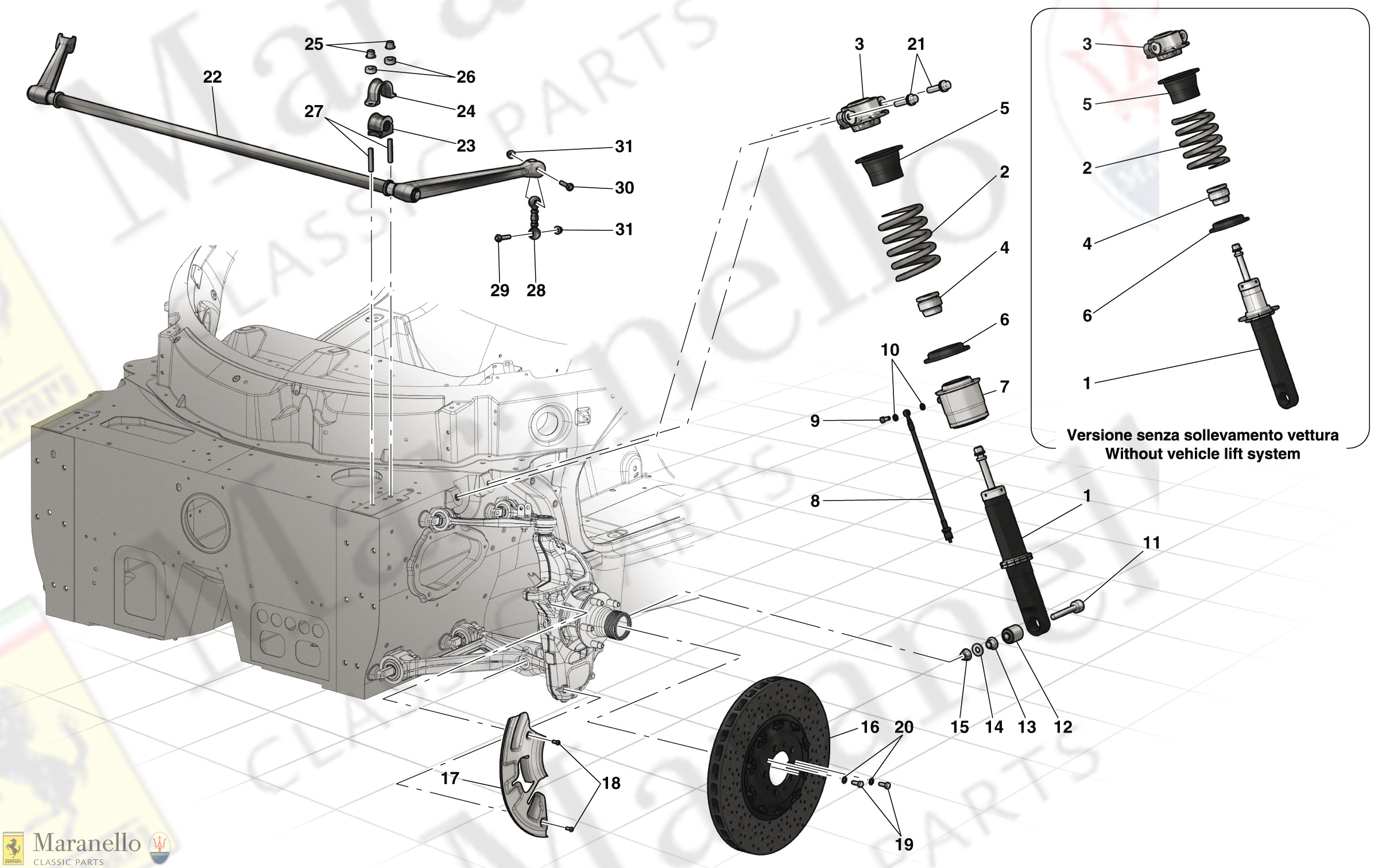

1	303547	Front Shock Absorber	-	2	£5,407.48 (Exc VAT)	?	0
1	306954	Front Shock Absorber Version without lift	-	2	£4,220.63 (Exc VAT)	?	0
2	299322	Front Suspension Spring Applicable until depletion	-	2	POA (Exc VAT)	?	0
2	309043	Front Suspension Spring Applicable after depletion of 299322	-	2	£1,420.15 (Exc VAT)	?	0
3	250394	Stop Cap	-	2	£151.31 (Exc VAT)		0
4	281221	Endstop Bush	-	2	£21.30 (Exc VAT)		0
5	293621	Spring Support Pad	-	2	£10.72 (Exc VAT)	?	0
6	188996	Spring Support Pad	-	2	£8.60 (Exc VAT)		0
7	303056	Actuator	-	2	£2,090.58 (Exc VAT)	?	0
8	277168	Rubber Pipe	-	2	£88.26 (Exc VAT)	?	0
9	261587	Union	-	2	£18.00 (Exc VAT)	?	0
10	259638	Gasket 8.7-14	-	4	£8.37 (Exc VAT)		0
11	237297	Screw TCEI M12 x 1.25 x 8	-	2	£24.92 (Exc VAT)	?	0
12	157630	Shock Absorber Bush	-	2	£65.88 (Exc VAT)		0
13	237821	Bushing 18x15	-	2	£3.98 (Exc VAT)		0
14	12646921	Washer	-	2	£0.41 (Exc VAT)		0
15	255271	Nut	-	2	£1.12 (Exc VAT)		0
16	303167	Front Brake Disc	-	2	£2,938.11 (Exc VAT)	?	0
17	280650	LH Front Disc Shield	-	1	£220.88 (Exc VAT)	?	0
17	280651	RH Front Disc Shield	-	1	£220.88 (Exc VAT)	?	0
18	250657	Screw M6 x 14	-	4	£3.83 (Exc VAT)		0
19	228131	Screw M8 x 20	-	4	£0.64 (Exc VAT)		0
20	228132	Spring Washer	-	4	£0.25 (Exc VAT)		0
21	248790	Screw 12 x 1.25 x 50	-	4	£3.27 (Exc VAT)		0
22	302652	Titanium Front Stabiliser Bar Complete	-	1	£3,113.40 (Exc VAT)	?	0
23	262890	Bar Buffer	-	2	£10.66 (Exc VAT)	?	0
24	305873	Plate	-	2	£13.81 (Exc VAT)	?	0
25	305874	Nut No longer supplied- -Replaced by 12578328	-	4	POA (Exc VAT)	?	0
25	12578328	Nut	-	4	£1.01 (Exc VAT)	?	0
26	302112	Spacer	-	4	£4.47 (Exc VAT)	?	0
27	13449934	Stud Bolt 10x1.25X15	-	4	£0.88 (Exc VAT)	?	0
28	278363	Spherical Tie-Rod L=70 Complete No longer supplied	-	2	£497.95 (Exc VAT)	?	0
28	306370	LH Ball Joint Tie-Rod No longer supplied- -Replaced by 303173	-	2	POA (Exc VAT)	?	0
28	303173	LH Ball Joint Tie-Rod	-	2	£496.92 (Exc VAT)	?	0
28	306371	RH Ball-Join Ti-Rod No longer supplied- -Replaced by 303175	-	2	POA (Exc VAT)	?	0
28	303175	RH Ball-Joint Tie-Rod	-	2	£496.92 (Exc VAT)	?	0
29	299692	Titanium Screw	-	2	£40.71 (Exc VAT)	?	0
30	299694	Titanium Screw	-	2	£41.96 (Exc VAT)	?	0
31	14058521	Nut	-	4	£1.49 (Exc VAT)	?	0
