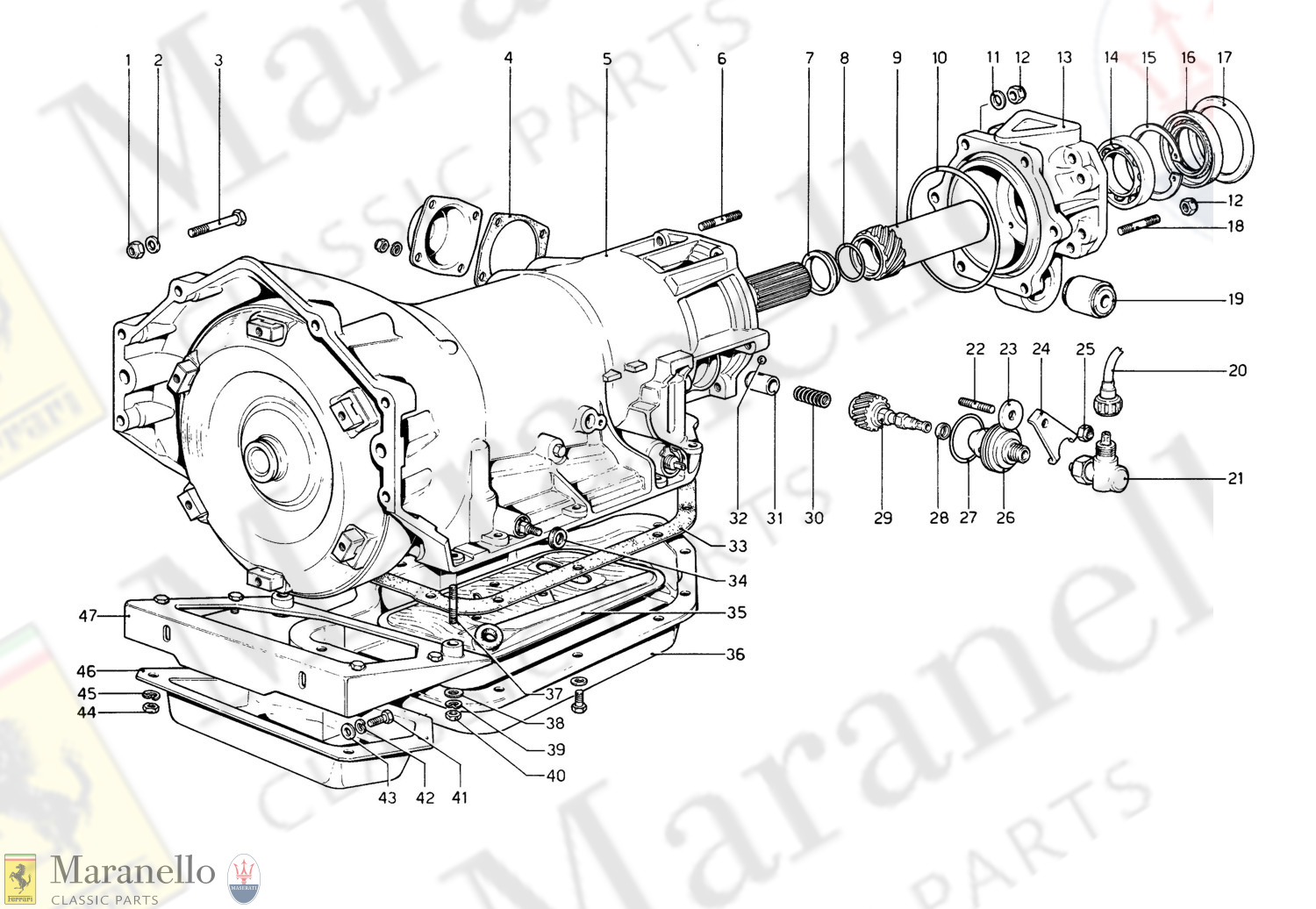

021 - Automatic Transmission (400 Automatic)

001 - Crankcase

002 - Oil Sump

003 - Crankshaft Conrods And Pistons

004 - Cylinder Head (Right)

005 - Cylinder Head (Left)

006 - Timing System

007 - Timing System - Controls

008 - Fuel Pumps And Pipes

009 - Fuel Tanks And Pipes

010 - Air Intakes

011 - Weber Carburettors (38 Dcoe 110 - 111 - 110M - 111M)

012 - Throttle Control

013 - Fast Idle Device

014 - Blow - By System (400 Automatic)

015 - Blow - By System (400 Gt)

016 - Exhaust System

017 - Lubrication Circuit And Filters

018 - Water Pump And Engine Oil

019 - Cooling System

020 - Engine Flywheel And Clutch Housing Spacer (400 Automatic)

021 - Automatic Transmission (400 Automatic)

022 - Vacuume Amplifying Valve And Oil Circuit (400 Automatic)

023 - Outside Gearbox Controlls (400 Automatic)

024 - Clutch System And Controls (400 Gt)

025 - Clutch Release Control (400 Gt)

026 - Gearbox (400 GT)

027 - Main Shaft Oil Pump (400 Gt)

028 - Lay Shaft (400 GT)

029 - Inside Abd Outside Gearbox Controls (400 Gt)

030 - Propeller Shaft

031 - Differential Housing

032 - Differential & Axle Shafts

033 - Brakes Hydraulic Drive (400 (Automatic)

034 - Brakes Hydraulic Drive (400 Gt)

035 - Brake Booster Vacuum Pump

036 - Brakes System

037 - Calipers For Front And Rear Brakes

038 - Hand-Brake Control

039 - Hydraulic Steering System

040 - Steering Linkage

041 - Steering Controls

042 - Front Suspension - Shock Absorber

043 - Front Suspension - Wishbones

044 - Rear Suspension - Brake Disc

045 - Rear Suspension - Wishbones

046 - Rear Suspension - Shock Absorber And Self-Leveling

047 - Wheels

048 - Engine Ignition

049 - Current Generator And Starting Motor

050 - Air Conditioning System

051 - Supplementary Air Conditiong System

052 - Tool - Kit

053 - Throttle Control (Variants For RHD Version)

054 - Clutch Release Control (400 Gt - Variants For RHD Version)

055 - Brakes Hydraulic Drive (400 Automatic - Variants For RHD Version)

056 - Brakes Hydraulc Drive (400 Gt - Variants For RHD Version)

101 - Front And Rear Lights, Horns And Arial

102 - Outer Door Mirrors And Internal Accessories

103 - Electrical System, Fuses And Relays

104 - Seat Belts

105 - Cooling Electric Fans, Heating And Windscreen Washer

106 - Instruments

201 - Frame

201A - Rear Frame

202 - Roof Components

203 - Front Body Panels

204 - Rear Body Panels

205 - Bonnet Components

205A - Bonnet Components

207 - Door Components

208 - Boot Components

210 - Front Bumper Components

211 - Rear Bumper Components

212 - Radiator Grille Components

213 - Windscreen Components

215 - External Side Trim

216 - Internal Carpets And Trim

218 - Interior Cabinet Accessories

219 - Front Seat Components

220 - Number Plate Frames

221 - Dashboard

221B - Centre Console From Car 1226

222 - Dashboard Switches

222A - Dashboard Switches

223 - System Electrics & Wipers

224 - Front Lights

226 - Heating And Ventilation

226A - Rear Heating & Ventilation

227 - Rear Window Components

208A - Boot & Boot Carpets

218A - Interior Cabinet Accessories

219A - Rear Seat Components

221A - Dashboard Components

221C - Centre Console

223A - System Electrics

224A - Rear Lights

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	12574521	Nyloc Nut	-	6	£0.76 (Exc VAT)		0
2	12601471	Washer	-	12	POA (Exc VAT)	?	0
	Superseded by 12601474	Wavy Washer 10mm	N	12	£0.03 (Exc VAT)		0
3	11288031	Bolt Dopo esaur. vale n. 15888731	-	6	POA (Exc VAT)	?	0
	Alternative 11288034	Bolt M10 x 1.25 x 60	N	6	£1.00 (Exc VAT)		0
4	111684	Gasket Gmc 8623263	-	1	POA (Exc VAT)	?	0
5	109073	Auto Gearbox Sr1 BOOK MISPRINT - 109075 Should be 109073.Series I	-	1	POA (Exc VAT)	?	0
	Superseded by 95961039	Automatic Transmission Sr1	N £££	1	£3,188.15 (Exc VAT)		0
5	119604	Autobox COU ADDITIONAL INFO - Series II	- £££	1	POA (Exc VAT)	?	0
6	100472	Stud	-	6	£11.79 (Exc VAT)		0
7	110999	Spacer	-	1	£27.17 (Exc VAT)		0
8	111000	Ring	-	1	£0.92 (Exc VAT)		0
9	110872	Screw	-	1	£272.47 (Exc VAT)		0
10	109197	O-Ring	-	1	£6.93 (Exc VAT)		0
11	12638601	Washer	-	6	£0.45 (Exc VAT)		0
12	13598021	Self Locking Nut	-	14	POA (Exc VAT)	?	0
	Alternative 102742	Nyloc Nut M10x1.25x10	N	14	£0.32 (Exc VAT)		0
13	109001	Tailshaft Housing Autobox	-	1	£631.37 (Exc VAT)		0
14	109075	Ball Race Bearing In alternativa n. 116062	-	1	£11.79 (Exc VAT)		0
15	11061675	Circlip 75I	-	1	£1.03 (Exc VAT)		0
16	109076	Oil Seal	-	1	£9.70 (Exc VAT)		0
17	109077	Spacer	-	1	POA (Exc VAT)	?	0
18	13546331	Stud	-	8	£4.69 (Exc VAT)		0
19	105634	Silentbloc Bush	MP -	1	£58.96 (Exc VAT)		0
20	101351	Speedo Cable	MP -	1	£103.65 (Exc VAT)		0
21	101353	Angle Drive	MP -	1	£1,853.15 (Exc VAT)	?	0
22	109237	Stud Fino alla vett.n. 28487	-	1	£7.92 (Exc VAT)		0
22	10980421	Stud Dalla vett.n. 28489	-	1	£0.88 (Exc VAT)		0
23	109238	Washer Fino alla vett.n. 28487	-	1	£18.62 (Exc VAT)		0
23	114206	Washer Dalla vett.n. 28489	-	1	£14.01 (Exc VAT)		0
24	109236	Bracket Fino alla vett.n. 28487	-	1	£9.09 (Exc VAT)	?	0
	Superseded by 114205	Bracket	N	1	£9.42 (Exc VAT)		0
24	114205	Bracket Dalla vett.n. 28489	-	1	£9.42 (Exc VAT)		0
25	16100811	Nut 8x6.5mm Fino alia vettura n. 28487	-	1	POA (Exc VAT)	?	0
	Superseded by 16100824	Nut M8 x 6.5	N	1	£0.12 (Exc VAT)		0
25	15896211	Nut M6 x 5 Dalla vettura n. 28489	-	1	£0.06 (Exc VAT)		0
25	106852	Spring Washer 8mm	-	1	POA (Exc VAT)	?	0
	Superseded by 127496	Spring Washer 8mm	N	1	£0.05 (Exc VAT)		0
25	106850	Spring Washer 6mm	-	1	POA (Exc VAT)	?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	1	£0.07 (Exc VAT)		0
26	109234	Speed Drive	-	1	£125.45 (Exc VAT)		0
27	109235	Ring	-	1	£1.51 (Exc VAT)		0
28	104103	Oil Seal	MP -	1	£5.53 (Exc VAT)		0
29	110873	Pinion	-	1	£215.68 (Exc VAT)		0
30	109240	Spring	-	1	£1.76 (Exc VAT)		0
31	109241	Pin	-	1	£40.02 (Exc VAT)		0
32	109242	Ball	-	1	POA (Exc VAT)	?	0
33	111683	Gasket Auto Transmission Sump	MP -	1	£23.11 (Exc VAT)		0
34	109273	Gasket	-	1	£4.00 (Exc VAT)		0
35	111682	Filter Auto Transmission	MP -	1	£33.86 (Exc VAT)		0
36	111686	Auto Gearbox Sump Pan	-	1	POA (Exc VAT)	?	0
37	13543721	Stud	-	2	POA (Exc VAT)	?	0
38	12646701	Washer D. 8.45 - 20 x 2	-	2	£0.07 (Exc VAT)		0
39	106852	Spring Washer 8mm	-	2	POA (Exc VAT)	?	0
40	16100811	Nut 8x6.5mm	-	2	POA (Exc VAT)	?	0
41	16043421	Bolt	-	2	POA (Exc VAT)	?	0
	Superseded by 16043424	Bolt M8 x 20	N	2	£0.16 (Exc VAT)		0
42	106852	Spring Washer 8mm	-	2	POA (Exc VAT)	?	0
43	12646701	Washer D. 8.45 - 20 x 2	-	2	£0.07 (Exc VAT)		0
44	16100811	Nut 8x6.5mm	-	4	POA (Exc VAT)	?	0
45	106852	Spring Washer 8mm	-	4	POA (Exc VAT)	?	0
46	109946	Case	-	1	POA (Exc VAT)	?	0
47	109947	Support Plate	-	1	£337.52 (Exc VAT)		0
