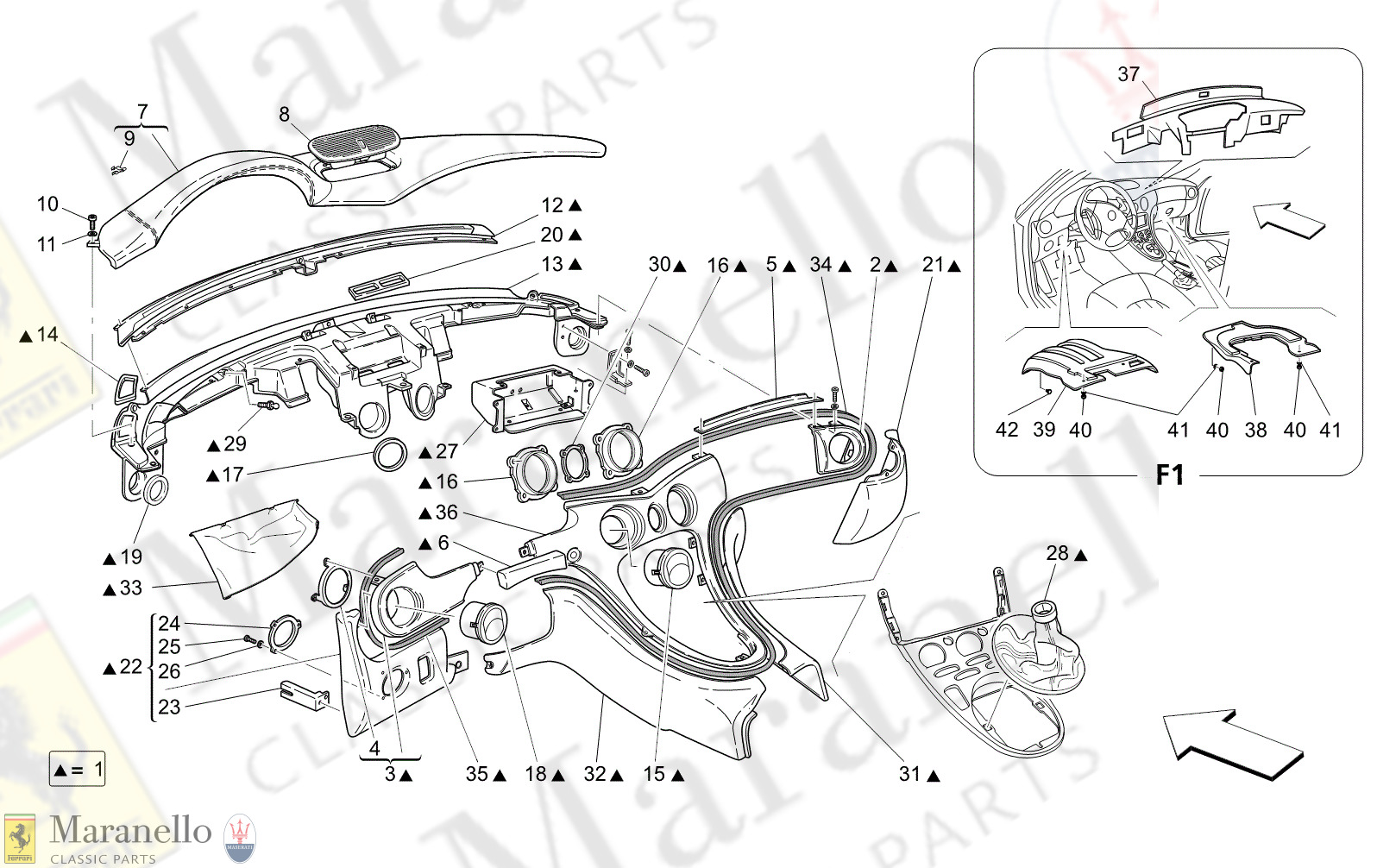

Maserati / Spyder 2003 4200 cc MANUALE / C9.50 - 12 - C950 - 12 Dashboard Unit

Reset

< Prev Next >

M1.00 - 12 - M100 - 12 Crankcase

M1.10 - 12 - M110 - 12 Crankshaft, Connecting Rods And Pistons

M1.20 - 12 - M120 - 12 Rh Cylinder Head

M1.21 - 12 - M121 - 12 Lh Cylinder Head

M1.22 - 12 - M122 - 12 Timing - Shafts And Valves

M1.24 - 12 - M124 - 12 Timing - Controls

M1.40 - 12 - M140 - 12 Intake Manifold And Throttle Body

M1.42 - 12 - M142 - 12 Fuel Tank

M1.43 - 12 - M143 - 12 Fuel Pumps And Connection Lines

M1.44 - 12 - M144 - 12 Antievaporation System

M1.44 - 22 - M144 - 22 Antievaporation System

M1.50 - 12 - M150 - 12 Additional Air System

M1.60 - 12 - M160 - 12 Lubrication System: Circuit And Collection

M1.61 - 12 - M161 - 12 Lubrication System: Pump And Filter

M1.63 - 12 - M163 - 12 Oil Vapour Recirculation System

M1.70 - 12 - M170 - 12 Cooling: Air Radiators And Ducts

M1.71 - 12 - M171 - 12 Cooling System: Nourice And Lines

M1.71 - 22 - M171 - 22 Cooling System: Nourice And Lines

M1.82 - 12 - M182 - 12 Exhaust System

M1.82 - 22 - M182 - 22 Exhaust System

M1.90 - 12 - M190 - 12 Injection - Ignition Device

M1.91 - 12 - M191 - 12 Alternator And Starting Motor

M2.10 - 12 - M210 - 12 Clutch Discs And Housing For Mechanical Gearbox

M2.11 - 12 - M211 - 12 Friction Discs And Housing For F1 Gearbox

M3.03 - 12 - M303 - 12 Driver Controls For Gearbox

M3.10 - 12 - M310 - 12 Gearbox Housings

M3.11 - 12 - M311 - 12 Main Shaft Gears

M3.12 - 12 - M312 - 12 Lay Shaft Gears

M3.13 - 12 - M313 - 12 Inner Controls

M3.21 - 12 - M321 - 12 Differential And Rear Axle Shafts

M3.22 - 12 - M322 - 12 Differential Box And Rear Underbody

M3.30 - 12 - M330 - 12 Transmission Shaft

M3.40 - 12 - M340 - 12 F1 Clutch Hydraulic Control

M3.41 - 12 - M341 - 12 Power Unit And Tank

M4.00 - 12 - M400 - 12 Brakes And Clutch Hydraulic Controls

M4.12 - 12 - M412 - 12 Braking Devices On Wheels

M4.20 - 12 - M420 - 12 Braking System

M4.20 - 22 - M420 - 22 Braking System

M4.30 - 12 - M430 - 12 Parking Brake

M5.00 - 12 - M500 - 12 Steering Column And Steering Wheel Unit

M5.10 - 12 - M510 - 12 Steering Rack And Hydraulic Steering Pump

M5.20 - 12 - M520 - 12 Complete Pedal Board Unit

M5.20 - 22 - M520 - 22 Complete Pedal Board Unit

M6.00 - 12 - M600 - 12 Wheels And Tyres

M6.10 - 12 - M610 - 12 Front Suspension

M6.11 - 12 - M611 - 12 Front Shock Absorber Devices

M6.12 - 12 - M612 - 12 Front Underchassis

M6.20 - 12 - M620 - 12 Rear Suspension

M6.21 - 12 - M621 - 12 Rear Shock Absorber Devices

M7.30 - 12 - M730 - 12 Accessories Provided

M7.30 - 22 - M730 - 22 Accessories Provided

M8.20 - 12 - M820 - 12 Battery

C7.00 - 12 - C700 - 12 Airbag System

C8.00 - 12 - C800 - 12 Windscreen Wiper, Windscreen Washer And Horns

C8.33 - 12 - C833 - 12 Light Clusters

C8.33 - 22 - C833 - 22 Light Clusters

C8.40 - 12 - C840 - 12 A/C Unit: Engine Compartment Devices

C8.41 - 12 - C841 - 12 A/C Unit: Dashboard Devices

C8.50 - 12 - C850 - 12 Passenger Compartment Devices

C8.50 - 22 - C850 - 22 Passenger Compartment Devices

C8.53 - 12 - C853 - 12 Alarm And Immobilizer System

C8.53 - 32 - C853 - 32 Alarm And Immobilizer System

C8.60 - 12 - C860 - 12 Main Wiring

C8.71 - 12 - C871 - 12 It System

C8.71 - 22 - C871 - 22 It System

C8.73 - 12 - C873 - 12 Engine Compartment Control Units

C8.74 - 12 - C874 - 12 Passenger Compartment Control Units

C8.74 - 22 - C874 - 22 Passenger Compartment Control Units

C8.75 - 12 - C875 - 12 Trunk Compartment Control Units

C8.75 - 22 - C875 - 22 Trunk Compartment Control Units

C9.00 - 12 - C900 - 12 Bodywork And Front Outer Trim Panels

C9.02 - 12 - C902 - 12 Bodywork And Rear Outer Trim Panels

C9.03 - 12 - C903 - 12 Front Structural Frames And Sheet Panels

C9.04 - 12 - C904 - 12 Central Structural Frames And Sheet Panels

C9.05 - 12 - C905 - 12 Rear Structural Frames And Sheet Panels

C9.10 - 12 - C910 - 12 Front Bumper

C9.11 - 12 - C911 - 12 Rear Bumper

C9.13 - 11 - C913 - 11 Wheelhouse And Lids

C9.15 - 12 - C915 - 12 Shields, Trims And Covering Panels

C9.17 - 12 - C917 - 12 Stickers And Labels

C9.20 - 12 - C920 - 12 Front Lid

C9.21 - 12 - C921 - 12 Rear Lid

C9.30 - 12 - C930 - 12 Front Doors: Trim Panels

C9.31 - 12 - C931 - 12 Front Doors: Mechanisms

C9.34 - 12 - C934 - 12 Windows And Window Strips

C9.35 - 12 - C935 - 12 Glass Lift And External Rear-View Mirrors

C9.40 - 12 - C940 - 12 Front Seats: Trim Panels

C9.41 - 12 - C941 - 12 Front Seats: Mechanics And Electronics

C9.44 - 12 - C944 - 12 Inner Trims

C9.45 - 12 - C945 - 12 Roof Panel Upholstery And Accessories

C9.50 - 12 - C950 - 12 Dashboard Unit

C9.50 - 22 - C950 - 22 Dashboard Unit

C9.51 - 12 - C951 - 12 Accessory Console And Centre Console

C9.52 - 12 - C952 - 12 Glove Compartments

C9.60 - 12 - C960 - 12 Passenger Compartment Mats

C9.61 - 12 - C961 - 12 Trunk Hood Compartment Trims

C9.80 - 12 - C980 - 12 Electrical Capote: Linings

C9.81 - 12 - C981 - 12 Electrical Capote: Covers

C9.84 - 12 - C984 - 12 Electrical Capote: Closings

C9.86 - 12 - C986 - 12 Electrical Capote: Structure

C9.88 - 12 - C988 - 12 Electrical Capote: Hydraulic System

C9.89 - 12 - C989 - 12 Electrical Capote: Electronic Control

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price
Multiple variants of the same part are selected for items:
1	9811027..	DASHBOARD ASSEMBLY Standard- -Not for USA and CDN- -For order specify car number	-	1	POA		0
1	9811051..	DASHBOARD ASSEMBLY Standard- -Valid for USA and CDN- -For order specify car number	-	1	POA		0
1	9811028..	DASHBOARD ASSEMBLY Optional- -Xeno Headlight- -Not for USA and CDN- -For order specify car number	-	1	POA		0
1	9811052..	DASHBOARD ASSEMBLY Optional- -Xeno Headlight- -Valid for USA and CDN- -For order specify car number	-	1	POA		0
2	9811036..	R.H. LATERAL BODY IN THEDASHBOARD For order specify car number	-	1	POA		0
3	9811035..	L.H. LATERAL BODY IN THEDASHBOARD For order specify car number	-	1	POA		0
4	382300427	Side vent fastening plate	-	2	£7.80 (Exc VAT)	?	0
5	382300395	Crossmember	-	1	£3.15 (Exc VAT)	?	0
6	9811039..	SUBINSTRUMENT For order specify car number	-	1	POA		0
7	667732..	COMPLETE UPPER INSERT IN THE DASHBOARD For order specify car number	-	1	POA		0
8	382300805	Air Deflector Vent	-	1	£204.00 (Exc VAT)	?	0
9	382300423	Clip	-	1	£2.35 (Exc VAT)	?	0
10	13274177	Screw	-	2	£1.60 (Exc VAT)	?	0
10	13274077	Screw 5x12	-	2	£1.30 (Exc VAT)	?	0
11	12637821	Split Washer	-	4	£1.05 (Exc VAT)	?	0
12	382300614	Upper Frame LHD	-	1	£128.00 (Exc VAT)	?	0
14	382300603	LH Auto Adhesive Sponge	-	1	£2.45 (Exc VAT)	?	0
14	382300602	RH Auto Adhesive Sponge	-	1	£2.45 (Exc VAT)	?	0
15	382300800	Centre Air Vent	-	2	£63.70 (Exc VAT)	?	0
16	382300803	Air Diffuser Fixing Plate	-	2	£97.80 (Exc VAT)	?	0
17	382300372	Gasket	-	2	£2.80 (Exc VAT)	?	0
18	382300802	Air Vent	-	2	£34.90 (Exc VAT)	?	0
19	382300371	Gasket	-	2	£11.60 (Exc VAT)	?	0
20	382300374	Gasket	-	1	£3.45 (Exc VAT)	?	0
21	667745..	RH LATERAL TRIM ASSEMBLY For order specify car number	-	1	POA		0
22	667755..	LH LATERAL TRIM ASSEMBLY Standard- -Not for USA and CDN- -For order specify car number	-	1	POA		0
22	667753..	LH LATERAL TRIM ASSEMBLY Optional- -Xeno headlights- -For order specify car number	-	1	POA		0
23	382300319	Bracket	-	2	£97.90 (Exc VAT)	?	0
24	66306900	Ring Nut	-	1	£82.40 (Exc VAT)	?	0
25	10977524	Screw	-	3	£1.30 (Exc VAT)	?	0
26	10519378	Washer	-	3	£1.30 (Exc VAT)	?	0
27	382300283	Complete Air Bag Framework	-	1	£84.80 (Exc VAT)	?	0
28	672339..	COMPLETE BOOT Not for F1	-	1	POA		0
29	382300424	Pin	-	4	£1.05 (Exc VAT)	?	0
30	382300512	Plate	-	1	£6.25 (Exc VAT)	?	0
31	667734..	COMPLETE R.H. LOWER DASHBOARD COVER For order specify car number	-	1	POA		0
32	667735..	COMPLETE L.H. LOWER DASHBOARD COVER For order specify car number	-	1	POA		0
33	9810011..	STEERING COLUMN BELLOWS For order specify car number	-	1	POA		0
34	9811043..	CENTRAL GASKET For order specify car number	-	1	POA		0
35	9811044..	LATERAL GASKET For order specify car number	-	1	POA		0
36	660626..	CENTRAL BODY IN THEDASHBOARD For order specify car number	-	1	POA		0
37	67526000	Insulation Valid for F1	-	1	£48.40 (Exc VAT)	?	0
38	67525800	Insulation Valid for F1	-	1	£27.80 (Exc VAT)	?	0
39	67525900	Insulation Valid for F1	-	1	£29.00 (Exc VAT)	?	0
40	14059111	Nut Valid for F1	-	5	£0.95 (Exc VAT)	?	0
41	12638101	Washer Valid for F1	-	5	£1.05 (Exc VAT)	?	0
42	67640300	Fixing Button 5x30 Valid for F1	-	2	£1.30 (Exc VAT)	?	0
