No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:

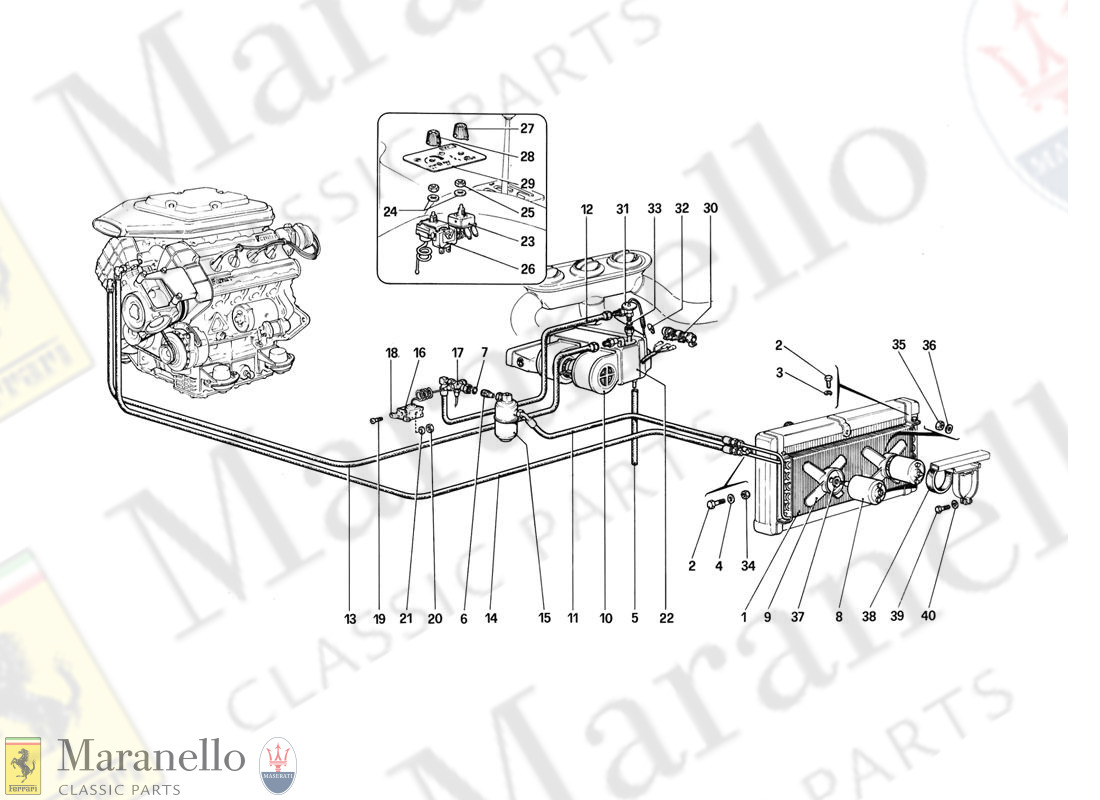

1	106697	AC Condenser	- £££	1	POA (Exc VAT)			?	0
2	10902121	Bolt	MP -	5	POA (Exc VAT)			?	0
	Superseded by 10902124	Screw M6 x 14	N	5	£0.05 (Exc VAT)				0
3	106850	Spring Washer 6mm	-	4	POA (Exc VAT)			?	0
	Superseded by 127494	Wavy Washer 6mm Zinc Coated	N	4	£0.07 (Exc VAT)				0
4	12643701	Flat Washer	-	1	£0.05 (Exc VAT)				0
5	106710	Drain Tube	-	1	POA (Exc VAT)			?	0
6	107402	Dryer Bottle Union	MP -	1	£32.51 (Exc VAT)			?	0
7	103039	O-Ring	MP -	1	£0.75 (Exc VAT)				0
8	109826	Fan Motor	MP -	2	£186.38 (Exc VAT)			?	0
	Alternative 119447	Fan Motor & Blade	MP N	2	£233.87 (Exc VAT)				0
9	107175	Fan Blade	-	2	£56.00 (Exc VAT)				0
10	109039	Motor & Fan Assy	-	1	POA (Exc VAT)			?	0
11	109322	Pipe LHD In alternativa n. 116725	-	1	POA (Exc VAT)			?	0
12	109867	Air Con Pipe LHD In alternativa n. 116726	-	1	POA (Exc VAT)			?	0
13	109868	Air Con Pipe LHD In alternativa n. 60724800	-	1	POA (Exc VAT)			?	0
14	110367	A C Pipe In alternativa n. 116727	-	1	POA (Exc VAT)			?	0
15	106647	A/C Refrigerant Dryer Bottle	MP -	1	£153.55 (Exc VAT)			?	0
16	100460	Switch AirCon	-	1	POA (Exc VAT)			?	0
	Alternative 129102/A	Pressostat	MP N	1	£74.00 (Exc VAT)				0
17	106646	Pressure Stat	-	1	POA (Exc VAT)			?	0
18	106498	Support	-	1	£11.04 (Exc VAT)				0
19	17668901	Screw	-	3	£0.32 (Exc VAT)				0
20	15896211	Nut M6 x 5	-	2	£0.06 (Exc VAT)				0
21	12601278	Washer	-	2	POA (Exc VAT)			?	0
	Alternative 12601279	Wavy Washer 6mm	N	2	£0.09 (Exc VAT)				0
-	60183605	Air Conditioning Kit LHD	-	1	POA (Exc VAT)			?	0
22	109818	Air Con System Col complessivo n. 60183605	-	1	POA (Exc VAT)			?	0
23	101990	Switch Commutator AC	-	1	POA (Exc VAT)			?	0
	Alternative 101990/A	Switch Commutator AC	N	1	£111.62 (Exc VAT)				0
24	107144	Washer	-	2	POA (Exc VAT)			?	0
25	105911	Nut	-	1	£3.60 (Exc VAT)				0
26	109819	Air Con Switch Thermostat	- £££	1	POA (Exc VAT)			?	0
	Alternative 61931100/A	Thermostat Switch	N	1	£90.90 (Exc VAT)				0
27	105908	Fan Speed Knob	-	1	£205.90 (Exc VAT)				0
28	105907	AC Knob	-	1	£203.18 (Exc VAT)				0
29	109820	Air Con Information Plate	MP -	1	£72.52 (Exc VAT)				0
30	107142	Resistor	-	1	£196.56 (Exc VAT)				0
31	106644	Valve	-	1	POA (Exc VAT)			?	0
32	105905	Clip	-	1	£21.28 (Exc VAT)				0
33	107216	O-Ring	-	1	£3.76 (Exc VAT)				0
34	12574211	Nyloc Nut M6x1	-	1	POA (Exc VAT)			?	0
	Superseded by 102948	Nyloc Nut M6 x 8	N	1	£0.20 (Exc VAT)				0
35	109481	Nut	-	2	£0.07 (Exc VAT)			?	0
36	109483	Washer	-	2	£1.49 (Exc VAT)				0
37	109482	Washer	-	2	£5.18 (Exc VAT)			?	0
38	111872	Ring	-	2	POA (Exc VAT)			?	0
39	112012	Bolt	-	2	£0.41 (Exc VAT)				0
40	106850	Spring Washer 6mm	-	2	POA (Exc VAT)			?	0
