017 - Lubrication System: Tank

Ferrari / 308 GT4 Dino 1979 / 022 - Lay Shaft Gears

Reset

< Prev Next >

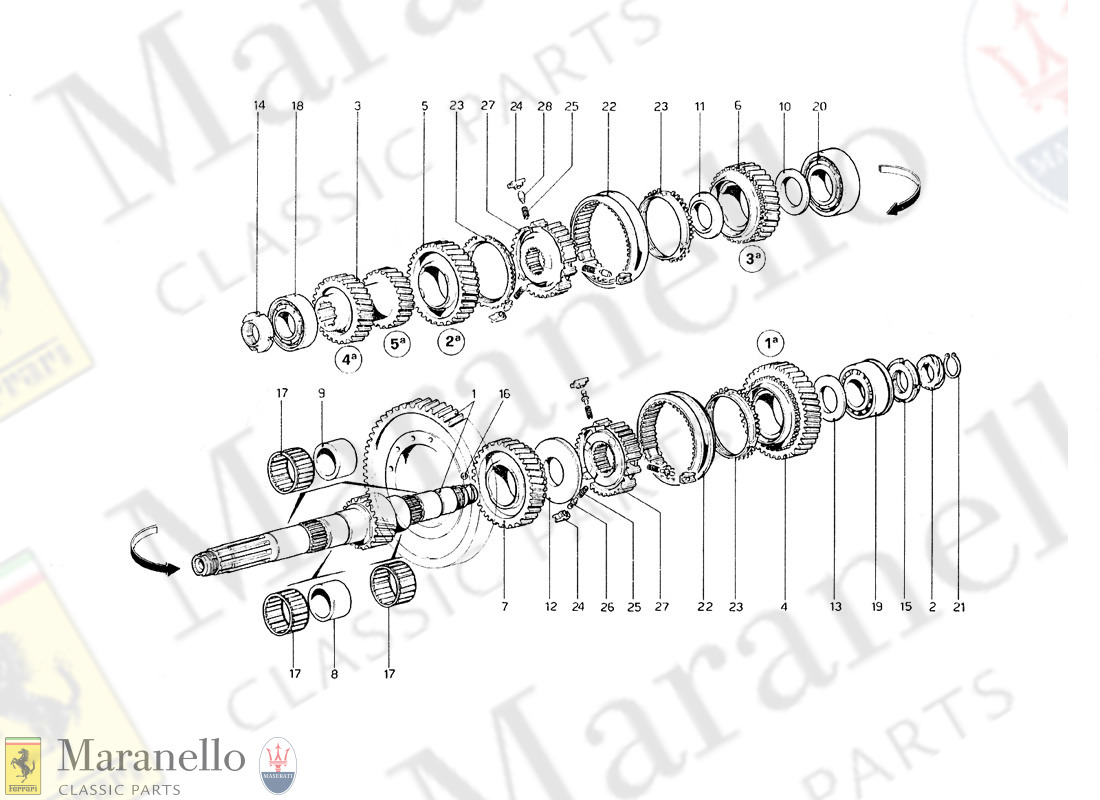

022 - Lay Shaft Gears

001 - Engine - Gearbox And Supports

002 - Crankcase

003 - Crankshaft - Connecting Rods And Pistons

004 - Flywheel And Clutch Housing

005 - Cylinder Head (Right)

006 - Cylinder Head (Left)

007 - Timing System - Tappets

008 - Timing System - Controls

009 - Fuel System

010 - Carburetors And Air Cleaner

011 - Throttle Control

012 - Exhaust System

013 - Blow - By System

014 - Lubrication System

015 - Cooling System

016 - Water Pump And Piping

017 - Clutch Operating Control

018 - Clutch Unit And Cover

019 - Gearbox Transmission

020 - Gear - Differential Housing And Oil Sump

021 - Main Shaft Gears

022 - Lay Shaft Gears

023 - Inside Gearbox Controls

024 - Outside Gearbox Controls

025 - Differential And Axle Shaft

026 - Pedal Board - Brake And Clutch Controls

027 - Brake System

028 - Caliper For Front And Rear Brakes

029 - Hand - Brake Control

030 - Steering Box And Linkage

031 - Steering Column

032 - Front Suspension - Shock Absorber And Brake Disc

033 - Front Suspension - Wishbones

034 - Rear Suspension - Shock Absorber & Brake Disc

035 - Rear Suspension - Wishbones

037 - Engine Ignition

038 - Engine Ignition (From N. 14070 Lhd - 14020 RHD)

039 - Electric Generating System

040 - Air Conditioning System

041 - Air Conditioning Compressor And Controls

043 - Throttle Control (Variants For RHD Version)

044 - Pedal Board - Clutch Controls (Variants For RHD Version)

045 - Brake Hydraulic System (Variants For RHD Version)

046 - Air Pump And Piping (Variants For Usa - Aus And J Version)

047 - Guards (Variants For Usa - Aus And J Version)

048 - Antievaporative Emission Control System (Variants For Usa - Aus And J Version)

049 - Antievaporative Emission Control System (Variants For Usa - Aus And J Version)

050 - Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)

051 - Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)

052 - Fuel System - Carburetors And Controls (Variants For Usa - Aus And J Version)

053 - Exhaust System (Variants For Usa - Aus And J Version)

054 - Exhaust System (Variants For Usa - Aus And J Version)

055 - Engine Ignition (Variants For Usa - Aus And J Version)

101 - Body Shell - Outer Elements

102 - Body Shell - Inner Elements

103 - Body Shell - Inner Elements (Usa 78 - Aus)

104 - Body Shell - Inner Elements (Usa 77 - Aus)

105 - Body Shell - Inner Elements

106 - Front Compartment Lid

107 - Engine Compartment Lid And Carpeting

108 - Luggage Compartment Lid

111 - Bumpers And Moldings

112 - Bumpers (U.S. And Japanese Version)

114 - Interior Trim, Accessories And Sliding Roof

115 - Interior Trim And Accessories

117 - Carpeting

118 - Instruments And Accessories

119 - Fuses And Relays

120 - Headlights Lifting Device

122 - Windshield Wiper, Washer And Horn

123 - Heating System

Show All Clear Selection Add to Basket

Show Clear Add

1 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	108522	Crown Wheel & Pinion	-	1	POA (Exc VAT)			?	0
2	107093	Speedo Drive	-	1	£110.17 (Exc VAT)				0
3	106155	4th & 5th Gear	-	1	£650.71 (Exc VAT)				0
4	104233	Gear (Machined) Ground 1st Not for USA-AUS-J	-	1	£449.46 (Exc VAT)				0
4	107740	Gear (Machined) Ground 1st For USA-AUS-J	-	1	£633.85 (Exc VAT)				0
5	104234	Gear 2nd	-	1	£1,936.18 (Exc VAT)			?	0
6	104235	Gear 3rd	-	1	POA (Exc VAT)			?	0
7	104238	Gear RM	-	1	POA (Exc VAT)				0
8	104239	Gearbox Bush	-	1	£242.07 (Exc VAT)				0
9	104240	Bush	-	2	POA (Exc VAT)			?	0
10	104245	Spacer	-	1	£64.87 (Exc VAT)				0
11	104246	Spacer	-	1	£66.54 (Exc VAT)				0
12	104247	Spacer	-	1	£93.67 (Exc VAT)				0
13	104248	Spacer	-	1	£59.17 (Exc VAT)				0
14	104252	RH Thread Locknut	MP -	1	£85.14 (Exc VAT)				0
15	104253	LH Thread Locknut	MP -	1	£83.69 (Exc VAT)				0
16	101611	Ball Bearing	MP -	1	£0.50 (Exc VAT)				0
17	104254	Caged Needle Bearing	-	4	£41.99 (Exc VAT)			?	0
18	108656	Roller Bearing D. 35 - 72 Alternative To 104257	-	1	£329.99 (Exc VAT)				0
19	103042	Double Ball Bearing	MP -	1	£244.07 (Exc VAT)				0
20	108657	Roller Bearing BOOK MISPRINT Same Part As Alternative - Alternative to 108657	MP -	1	POA (Exc VAT)			?	0
	Alternative 108657/A	Roller Bearing	MP N	1	£637.99 (Exc VAT)				0
21	11067375	Circlip	-	1	POA (Exc VAT)			?	0
	Superseded by 11067376	Ring	MP N	1	£1.11 (Exc VAT)				0
22	106038	Synchro Sleeve	MP -	2	£951.82 (Exc VAT)			?	0
23	106040	Synchro Ring	-	3	£956.08 (Exc VAT)				0
24	106042	Selector Block	MP -	6	£153.92 (Exc VAT)				0
25	106043	Synchro Spring	MP -	6	£10.47 (Exc VAT)				0
26	113412	Synchronizer Lock Pin Use Upon Exhaustion Of 1106044	-	3	£21.56 (Exc VAT)				0
27	106050	Synchro Sleeve	-	2	£364.43 (Exc VAT)				0
28	113412	Synchronizer Lock Pin	-	3	£21.56 (Exc VAT)				0

Make an Enquiry Report an Issue
