Maserati / GranTurismo SPORT 2016 4700 cc AUTOMATIC / 01.61 - 1 - 0161 - 1 Lubrication System: Pump And Filter

Reset

< Prev Next >

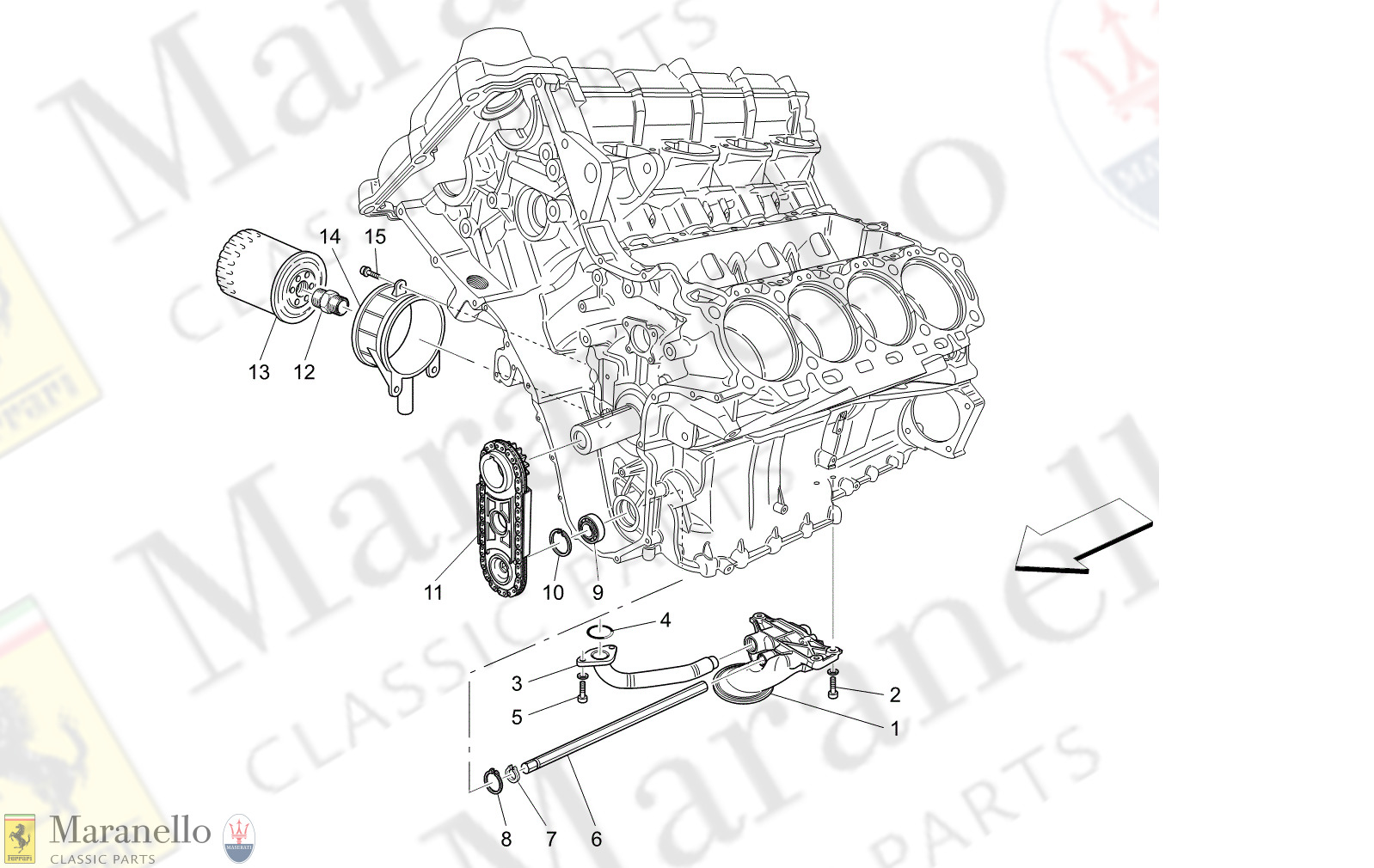

01.61 - 1 - 0161 - 1 Lubrication System: Pump And Filter

01.00 - 11 - 0100 - 11 Crankcase

01.10 - 11 - 0110 - 11 Crank Mechanism

01.11 - 1 - 0111 - 1 Auxiliary Device Belts

01.20 - 11 - 0120 - 11 Rh Cylinder Head

01.21 - 11 - 0121 - 11 Lh Cylinder Head

01.22 - 11 - 0122 - 11 Rh Cylinder Head Camshafts

01.23 - 11 - 0123 - 11 Lh Cylinder Head Camshafts

01.24 - 11 - 0124 - 11 Timing

01.25 - 1 - 0125 - 1 Valves

01.40 - 1 - 0140 - 1 Intake Manifold And Throttle Body

01.41 - 1 - 0141 - 1 Air Filter, Air Intake And Ducts

01.42 - 1 - 0142 - 1 Fuel Tank

01.43 - 1 - 0143 - 1 Fuel Pumps And Connection Lines

01.44 - 1 - 0144 - 1 Fuel Vapour Recirculation System

01.50 - 14 - 0150 - 14 Additional Air System

01.60 - 1 - 0160 - 1 Lubrication System: Circuit And Collection

01.61 - 1 - 0161 - 1 Lubrication System: Pump And Filter

01.62 - 11 - 0162 - 11 Heat Exchanger

01.63 - 1 - 0163 - 1 Oil Vapour Recirculation System

01.70 - 12 - 0170 - 12 Cooling: Air Radiators And Ducts

01.71 - 11 - 0171 - 11 Cooling System: Nourice And Lines

01.72 - 1 - 0172 - 1 Cooling System: Water Pump

01.80 - 11 - 0180 - 11 Pre-Catalytic Converters And Catalytic Converters

01.81 - 11 - 0181 - 11 Silencers

01.90 - 13 - 0190 - 13 Electronic Control: Injection And Engine Timing Control

01.91 - 1 - 0191 - 1 Electronic Control: Engine Ignition

03.02 - 11 - 0302 - 11 Driver Controls For Automatic Gearbox

03.10 - 12 - 0310 - 12 Gearbox Housings

03.10 - 2 - 0310 - 2 Gearbox Housings

03.21 - 12 - 0321 - 12 Differential And Rear Axle Shafts

03.30 - 12 - 0330 - 12 Transmission Shaft

03.50 - 12 - 0350 - 12 Lubrication And Gearbox Oil Cooling

04.00 - 11 - 0400 - 11 Brake Servo System

04.10 - 11 - 0410 - 11 Braking Devices On Front Wheels

04.11 - 11 - 0411 - 11 Braking Devices On Rear Wheels

04.20 - 12 - 0420 - 12 Lines

04.30 - 1 - 0430 - 1 Parking Brake

04.90 - 11 - 0490 - 11 Braking Control Systems

05.00 - 11 - 0500 - 11 Steering Column And Steering Wheel Unit

05.10 - 1 - 0510 - 1 Complete Steering Rack Unit

05.20 - 1 - 0520 - 1 Complete Pedal Board Unit

06.00 - 1 - 0600 - 1 Wheels And Tyres

06.10 - 1 - 0610 - 1 Front Suspension

06.11 - 1 - 0611 - 1 Front Shock Absorber Devices

06.11 - 2 - 0611 - 2 Front Shock Absorber Devices

06.12 - 1 - 0612 - 1 Front Underchassis

06.20 - 1 - 0620 - 1 Rear Suspension

06.21 - 1 - 0621 - 1 Rear Shock Absorber Devices

06.21 - 2 - 0621 - 2 Rear Shock Absorber Devices

06.22 - 11 - 0622 - 11 Rear Chassis

06.90 - 1 - 0690 - 1 Electronic Control (Suspension)

07.00 - 12 - 0700 - 12 Front Airbag System

07.01 - 11 - 0701 - 11 Passenger's Airbag-Deactivation

07.02 - 15 - 0702 - 15 Front Side Bag System

07.05 - 1 - 0705 - 1 Crash Sensors

07.10 - 11 - 0710 - 11 Front Seatbelts

07.11 - 1 - 0711 - 1 Rear Seat Belts

07.20 - 12 - 0720 - 12 Tyre Pressure Monitoring System

07.30 - 1 - 0730 - 1 Standard Provided

07.30 - 2 - 0730 - 2 Standard Provided

07.30 - 4 - 0730 - 4 Standard Provided

07.31 - 1 - 0731 - 1 After Market Accessories

07.31 - 2 - 0731 - 2 After Market Accessories

07.31 - 3 - 0731 - 3 After Market Accessories

08.00 - 1 - 0800 - 1 External Vehicle Devices

08.10 - 1 - 0810 - 1 Internal Vehicle Devices

08.20 - 1 - 0820 - 1 Energy Generation And Accumulation

08.30 - 3 - 0830 - 3 Headlight Clusters

08.31 - 1 - 0831 - 1 Taillight Clusters

08.32 - 1 - 0832 - 1 Side Light Clusters

08.39 - 2 - 0839 - 2 Lighting System Control

08.40 - 1 - 0840 - 1 A/C Unit: Engine Compartment Devices

08.40 - 21 - 0840 - 21 A/C Unit: Engine Compartment Devices

08.41 - 1 - 0841 - 1 A/C Unit: Dashboard Devices

08.42 - 1 - 0842 - 1 A/C Unit: Diffusion

08.49 - 1 - 0849 - 1 A/C Unit: Electronic Control

08.50 - 1 - 0850 - 1 Dashboard Devices

08.51 - 1 - 0851 - 1 Centre Console Devices

08.52 - 1 - 0852 - 1 Door Devices

08.53 - 1 - 0853 - 1 Alarm And Immobilizer System

08.53 - 2 - 0853 - 2 Alarm And Immobilizer System

08.60 - 3 - 0860 - 3 Main Wiring

08.60 - 5 - 0860 - 5 Main Wiring

08.61 - 1 - 0861 - 1 Relays, Fuses And Boxes

08.70 - 1 - 0870 - 1 Sound Diffusion System

08.71 - 2 - 0871 - 2 It System

08.71 - 31 - 0871 - 31 It System

08.72 - 1 - 0872 - 1 Reception And Connection System

09.00 - 1 - 0900 - 1 Bodywork And Front Outer Trim Panels

09.01 - 3 - 0901 - 3 Bodywork And Central Outer Trim Panels

09.01 - 6 - 0901 - 6 Bodywork And Central Outer Trim Panels

09.02 - 1 - 0902 - 1 Bodywork And Rear Outer Trim Panels

09.03 - 1 - 0903 - 1 Front Structural Frames And Sheet Panels

09.04 - 1 - 0904 - 1 Central Structural Frames And Sheet Panels

09.05 - 1 - 0905 - 1 Rear Structural Frames And Sheet Panels

09.10 - 2 - 0910 - 2 Front Bumper

09.11 - 1 - 0911 - 1 Rear Bumper

09.12 - 2 - 0912 - 2 Parking Sensors

09.13 - 1 - 0913 - 1 Wheelhouse And Lids

09.14 - 1 - 0914 - 1 Underbody And Underfloor Guards

09.15 - 1 - 0915 - 1 Shields, Trims And Covering Panels

09.15 - 3 - 0915 - 3 Shields, Trims And Covering Panels

09.16 - 1 - 0916 - 1 Trims, Brands And Symbols

09.17 - 1 - 0917 - 1 Stickers And Labels

09.20 - 1 - 0920 - 1 Front Lid

09.20 - 2 - 0920 - 2 Front Lid

09.20 - 3 - 0920 - 3 Front Lid

09.21 - 1 - 0921 - 1 Rear Lid

09.22 - 1 - 0922 - 1 Fuel Tank Door And Controls

09.23 - 1 - 0923 - 1 Front Lid Opening Button

09.24 - 1 - 0924 - 1 Rear Lid Opening Control

09.30 - 2 - 0930 - 2 Front Doors: Trim Panels

09.30 - 3 - 0930 - 3 Front Doors: Trim Panels

09.31 - 1 - 0931 - 1 Front Doors: Mechanisms

09.34 - 1 - 0934 - 1 Windows And Window Strips

09.35 - 1 - 0935 - 1 Internal And External Rear-View Mirrors

09.40 - 6 - 0940 - 6 Front Seats: Trim Panels

09.40 - 7 - 0940 - 7 Front Seats: Trim Panels

09.41 - 3 - 0941 - 3 Front Seats: Mechanics And Electronics

09.41 - 4 - 0941 - 4 Front Seats: Mechanics And Electronics

09.42 - 6 - 0942 - 6 Rear Seats: Trim Panels

09.42 - 7 - 0942 - 7 Rear Seats: Trim Panels

09.44 - 1 - 0944 - 1 Passenger Compartment B Pillar Trim Panels And Side Panels

09.44 - 2 - 0944 - 2 Passenger Compartment B Pillar Trim Panels And Side Panels

09.45 - 1 - 0945 - 1 Roof And Sun Visors

09.45 - 2 - 0945 - 2 Roof And Sun Visors

09.46 - 1 - 0946 - 1 Rear Parcel Shelf

09.46 - 2 - 0946 - 2 Rear Parcel Shelf

09.50 - 2 - 0950 - 2 Dashboard Unit

09.50 - 4 - 0950 - 4 Dashboard Unit

09.51 - 1 - 0951 - 1 Accessory Console And Centre Console

09.51 - 2 - 0951 - 2 Accessory Console And Centre Console

09.52 - 1 - 0952 - 1 Glove Compartments

09.52 - 2 - 0952 - 2 Glove Compartments

09.60 - 1 - 0960 - 1 Passenger Compartment Mats

09.60 - 2 - 0960 - 2 Passenger Compartment Mats

09.61 - 2 - 0961 - 2 Luggage Compartment Mats

09.61 - 5 - 0961 - 5 Luggage Compartment Mats

09.61 - 7 - 0961 - 7 Luggage Compartment Mats

09.61 - 9 - 0961 - 9 Luggage Compartment Mats

09.62 - 1 - 0962 - 1 Sound-Proofing Panels Inside The Vehicle

09.63 - 1 - 0963 - 1 Thermal Insulating Panels

Show Selected Clear Selection Add to Basket

Show Clear Add

0 Parts‚ Price £0.00 (Exc VAT)

No.	Part	Name		FQ	Price	Req.	Sel.
Multiple variants of the same part are selected for items:
1	228233	Oil Pump Assembly	-	1	£438.00 (Exc VAT)			?	0
1	265939	Oil Pump Assembly	-	1	£3,510.00 (Exc VAT)			?	0
2	231629	Screw 8x30	-	3	£1.90 (Exc VAT)			?	0
2	265097	Screw 8x40	-	3	£4.40 (Exc VAT)			?	0
3	223417	Tubo Mandata Olio Sulla Pomp	-	1	£969.00 (Exc VAT)			?	0
4	140071	Gasket	-	1	£1.30 (Exc VAT)			?	0
5	231618	Screw	-	2	£0.85 (Exc VAT)			?	0
6	225963	Oil Pump Control Hex Bar	-	1	£132.00 (Exc VAT)			?	0
6	261148	Oil Pump Control Bar	-	1	£11.60 (Exc VAT)			?	0
7	11066176	Circlip D.13	-	1	£4.40 (Exc VAT)			?	0
8	11066876	Circlip	-	1	£3.65 (Exc VAT)			?	0
9	216239	Bearing	-	1	£23.80 (Exc VAT)			?	0
10	11059676	Circlip D. 37	-	1	£0.85 (Exc VAT)			?	0
11	223267	Oil Pump	-	1	£369.00 (Exc VAT)			?	0
12	225838	Threaded Union M25 x 1.5 -	-	1	£69.20 (Exc VAT)			?	0
13	289571	Oil Filter Cartridge	-	1	£66.00 (Exc VAT)				0
13	289571	Oil Filter Cartridge	-	1	£66.00 (Exc VAT)				0
14	258737	Oil Filter Boot	-	1	£75.60 (Exc VAT)			?	0
15	231617	Screw M6x18	-	3	£1.90 (Exc VAT)			?	0
